Description

The ABB CI854K01 is a high-performance PROFIBUS DP master communication interface module designed for ABB’s AC 800M programmable logic controller family. Identified by the order code 3BSE025961R1, this critical communication component enables seamless integration between the AC 800M controller and PROFIBUS DP field networks, serving as a vital link in industrial automation architectures. The CI854K01 module facilitates high-speed data exchange with distributed I/O devices, drives, and other field equipment, ensuring reliable communication in demanding industrial environments.As an integral part of ABB’s industrial automation ecosystem, the CI854K01 supports the PROFIBUS DP-V1 protocol, providing comprehensive functionality for cyclic data exchange and acyclic communication services. The module features a PROFIBUS DP interface that operates at speeds up to 12 Mbps, supporting connection of up to 125 nodes on a single network segment. The robust design of the ABB CI854K01 ensures reliable operation in industrial environments characterized by electrical noise, vibration, and temperature variations, making it suitable for deployment in process industries, manufacturing, and infrastructure applications.The strategic importance of the ABB CI854K01 lies in its ability to bridge the AC 800M controller with the extensive ecosystem of PROFIBUS DP compatible devices. By providing this connectivity, the CI854K01 enables system integrators to leverage the advantages of both the powerful AC 800M platform and the widely adopted PROFIBUS standard, creating flexible and scalable automation solutions that optimize performance while reducing integration complexity and total cost of ownership.

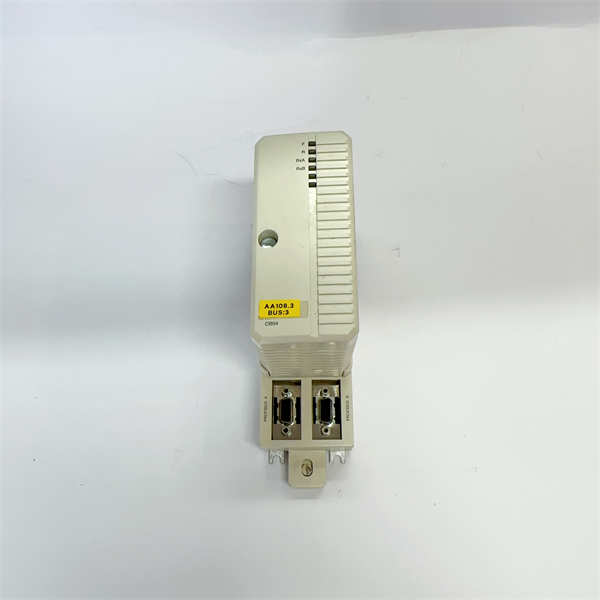

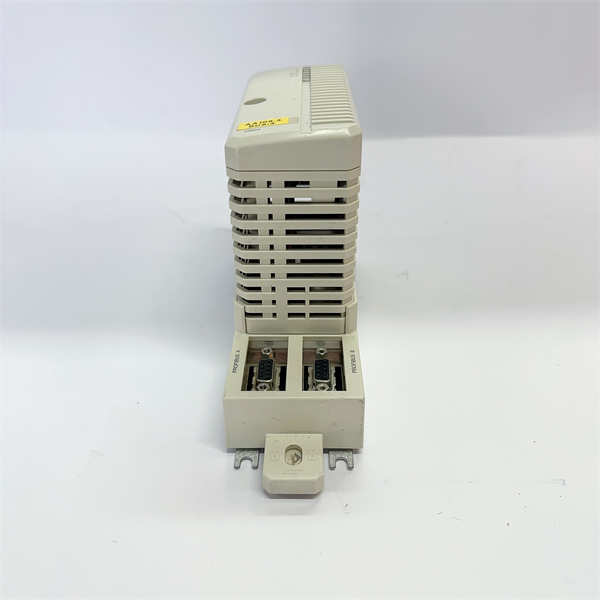

CI854K01 3BSE025961R1 ABB

Technical Specifications

Parameter Name	Parameter Value
Product Model	CI854K01
Order Code	3BSE025961R1
Manufacturer	ABB
Product Type	PROFIBUS DP Master Communication Interface
Compatible Controller	AC 800M Series
Communication Protocol	PROFIBUS DP-V1
Data Transfer Rate	Up to 12 Mbps
Number of Connections	Supports up to 125 nodes
Interface Type	RS-485 (PROFIBUS DP)
Isolation Voltage	1500 V AC (channel to controller)
Power Consumption	1.5 W (typical)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)

Main Features and Advantages

Advanced PROFIBUS DP Integration: The ABB CI854K01 provides comprehensive PROFIBUS DP-V1 protocol support, enabling both standard cyclic data exchange and advanced acyclic communication services. This allows the module to handle not only process data transmission but also parameterization, configuration, and diagnostic functions with connected devices. The implementation includes automatic baud rate detection and support for all standard PROFIBUS baud rates from 9.6 kbps to 12 Mbps, ensuring compatibility with a wide range of field devices regardless of their communication speed capabilities.Robust Communication Performance: The CI854K01 is engineered for reliable operation in industrially harsh environments, featuring electrical isolation between the PROFIBUS network and the controller backplane. This isolation protects the AC 800M controller from electrical disturbances on the fieldbus while ensuring data integrity. The module’s sophisticated error detection and handling mechanisms provide comprehensive diagnostic information that simplifies troubleshooting and reduces system downtime, while its support for PROFIBUS DP diagnostics enables rapid identification of network issues.Seamless AC 800M Integration: A key advantage of the ABB CI854K01 is its tight integration with the AC 800M controller platform. The module is recognized automatically by the controller’s operating system, and configuration is streamlined through ABB’s Control Builder engineering tool. This integration simplifies project engineering and reduces commissioning time, while ensuring optimal performance through optimized driver implementation and efficient use of controller resources. The module’s design ensures reliable operation even in applications with high communication load and demanding real-time requirements.

Application Field

In process industry applications such as chemical plants and refineries, the ABB CI854K01 typically serves as the communication backbone connecting AC 800M controllers with distributed field devices including remote I/O stations, motor starters, and process instruments. The module’s reliability ensures continuous data exchange for critical process parameters, while its support for PROFIBUS diagnostics enables predictive maintenance of the field network. The CI854K01’s robust design makes it particularly suitable for these demanding environments where communication reliability is essential for process safety and efficiency.For manufacturing automation systems, the ABB CI854K01 provides high-speed connectivity between AC 800M controllers and PROFIBUS DP compatible devices such as drives, sensors, and actuators on production lines. The module’s fast update rates support precise synchronization of automated equipment, while its ability to handle numerous nodes enables comprehensive monitoring and control of complex manufacturing processes. The CI854K01’s performance contributes to increased production efficiency and equipment utilization in these applications.In infrastructure applications including water treatment and building management systems, the ABB CI854K01 enables integration of AC 800M controllers with distributed field equipment across large geographical areas. The module’s support for long-distance communication and its reliability in varying environmental conditions make it well-suited for these applications. The CI854K01’s diagnostic capabilities facilitate remote monitoring and maintenance, reducing operational costs while ensuring reliable system performance.

Installation and Maintenance

Pre-installation preparation: The ABB CI854H01 requires careful planning before installation in an AC 800M controller rack. Verify compatibility with the specific AC 800M controller model and ensure adequate space is available in the rack. Review the PROFIBUS network configuration including device addresses and baud rates. Have the necessary PROFIBUS connectors and cabling ready, and ensure proper termination resistors are available for network endpoints. The installation environment should meet specified temperature and humidity requirements for optimal performance.Maintenance recommendations: Regular maintenance of the CI854K01 involves monitoring communication status through system diagnostics and checking for error indicators. Periodically verify PROFIBUS network integrity using diagnostic tools and monitor signal quality on the network. Keep firmware updated to the latest stable version recommended by ABB, and maintain backups of the configuration settings. For optimal performance, periodically check connector tightness and cable condition, and ensure proper grounding of the PROFIBUS network shield.
