Deep Analysis of ABB DSDP150 57160001-GF Pulse Encoder Input Module

Product Overview

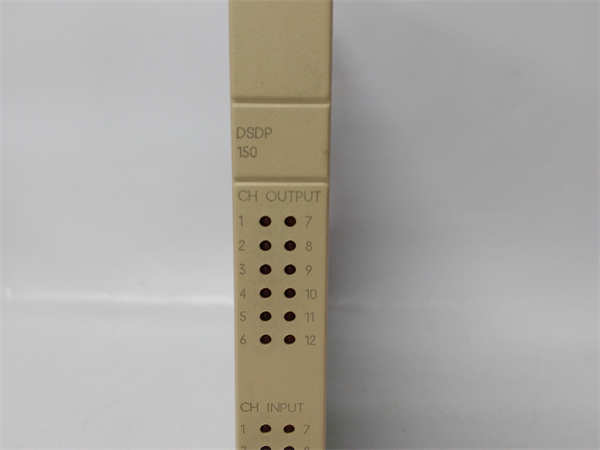

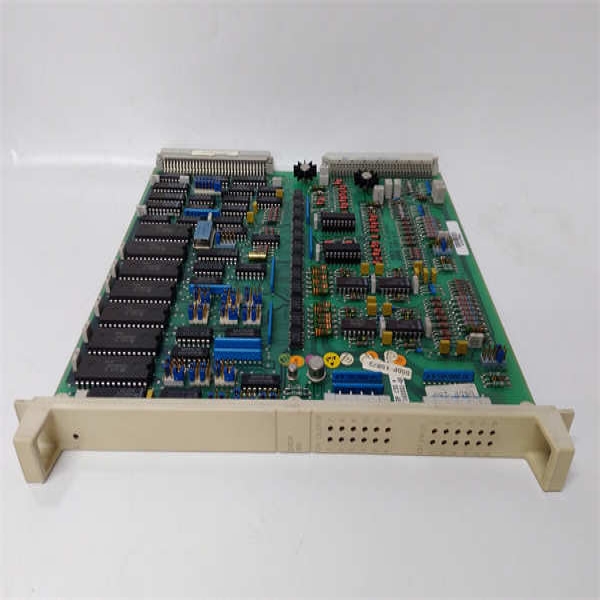

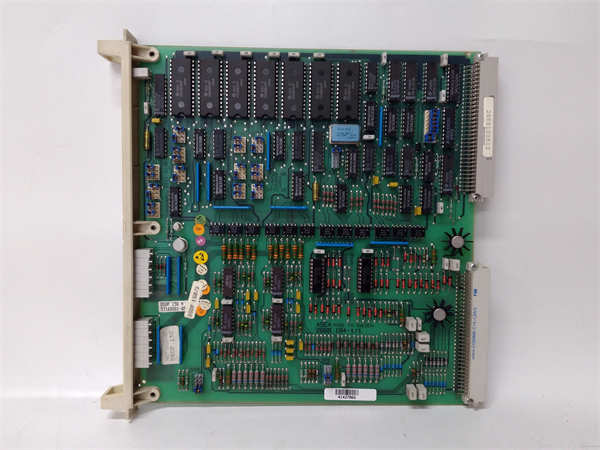

ABB DSDP150 57160001-GF is a pulse encoder input module used in ABB Advant OCS systems.It is mainly used to receive pulse signals from various rotary encoders and convert them into system recognizable digital signals,thereby achieving precise measurement and control of rotational motion.

DSDP150 57160001-GF ABB

Product parameters and specifications

model:DSDP150 57160001-GF

Type:Pulse Encoder Input Module

Function:Receive pulse signals,measure speed and position

Input signal:Pulse signal(usually ABZ type)

Input voltage:12V DC

Maximum pulse frequency:10kHz

Interface:Used to connect to ABB Advant OCS system

Product series and features

ABB Advant OCS series:I/O modules belonging to the ABB Advant OCS system.

High reliability:Designed for industrial environments,it has high reliability.

Modular design:Modular design facilitates installation and maintenance.

Flexible configuration:It can be flexibly configured according to different application requirements.

DSDP150 57160001-GF ABB

Function and Application

Speed measurement:measure the rotational speed of a rotating shaft.

Position measurement:Measure the position of the rotating axis.

Motion control:used in servo systems,stepper motors,and other applications that require precise position control.

Data collection:Collect position and velocity data into the control system.

application area

Industrial automation:used in various industrial automation scenarios,such as machine tools,robots,packaging machinery,etc.

Process control:used for motor drive and position control in process control systems.

Testing and Measurement:Used for testing and measuring equipment.

DSDP150 57160001-GF ABB

summary

ABB DSDP150 57160001-GF is a high-performance pulse encoder input module that plays an important role in the ABB Advant OCS system.It provides precise position and velocity measurement functions for the system and is widely used in various industrial automation fields.
