Description

The EMERSON A6500-UM universal measurement card is the core component of the Emerson AMS 6500 ATG mechanical protection system,providing highly flexible and accurate measurement capabilities for status monitoring and protection of industrial machinery.As an important component of the AMS 6500 platform,the A6500-UM universal measurement card is designed to receive and process signals from various types of sensors,including eddy current sensors,piezoelectric sensors(accelerometers or speedometers),eddy current sensors,low-frequency bearing vibration sensors,Hall effect sensors,and LVDT sensors used in conjunction with the A6500-LC.The EMERSON A6500-UM universal measurement card has dual channel inputs,each channel can be independently configured for different measurement tasks or combined for more complex analysis.This universal measurement card plays a crucial role in mechanical protection systems by monitoring key mechanical parameters in real-time,such as shaft vibration,shaft displacement,bearing status,speed,etc.,providing a reliable data foundation for predictive maintenance and fault diagnosis,thereby helping users improve equipment reliability,extend service life,and reduce operating costs.The EMERSON A6500-UM universal measurement card transmits the collected signals to the A6500-CC communication card through an internal RS-485 bus,and then the communication card converts them into protocols such as Modbus RTU and Modbus TCP/IP for seamless integration with the upper computer system or analysis platform.

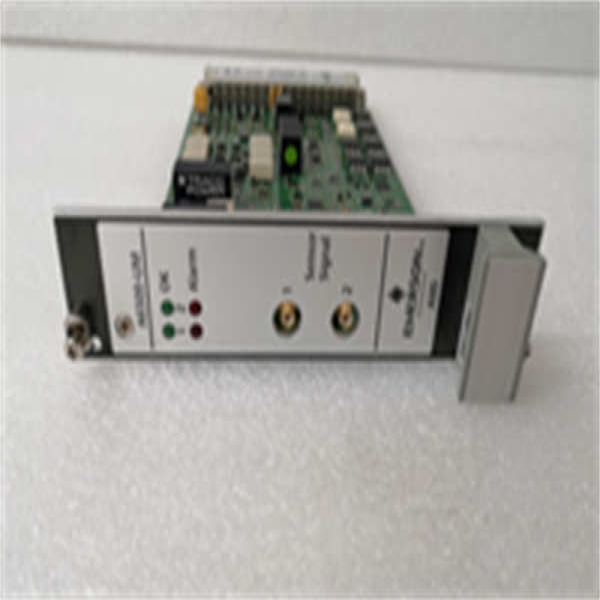

A6500-UM EMERSON

technical specifications

Product model:A6500-UM

manufacturer:EMERSON

Product Type:Universal Measurement Card

Input channels:2 independent or combined sensor input channels

Supporting sensors:eddy current,piezoelectric(acceleration/velocity),eddy current,low-frequency bearing vibration,Hall effect,LVDT(with A6500-LC)

Digital input:5 channels

Digital output:6 channels

Analog output:2 channels,0/4-20 mA,common ground,electrically isolated from the system power supply

Frequency range:0 to 18750 Hz

Working temperature:-20°C to+70°C

Installation method:Insert into A6500-SR system rack

Main features and advantages

The EMERSON A6500-UM universal measurement card brings many significant features and advantages to mechanical protection and condition monitoring applications.Its most prominent feature is its high versatility,which can support multiple types of sensor inputs.This means that users can use the same card to monitor various mechanical parameters,simplifying system configuration and spare parts management.The A6500-UM card has independent dual channel inputs,allowing for simultaneous monitoring of two different measurement points or combined measurements,providing greater flexibility.

Powerful signal processing capability:The A6500-UM card can accurately condition and convert input sensor signals,and reliably transmit them to the communication card for further processing and analysis through the internal bus.

Rich digital and analog interfaces:In addition to sensor input channels,A6500-UM also provides 5 digital inputs and 6 digital outputs,as well as 2 analog outputs(0/4-20 mA),making it easy to integrate with external control systems or alarm systems.

Hot swappable design:The A6500-UM card supports hot swapping and can be replaced while the system is running,improving the maintainability and availability of the system and reducing downtime caused by maintenance.

Self check function:A6500-UM has a complete self check function,which can monitor its hardware,power input,temperature,as well as the connection status of sensors and cables,ensuring the reliability of measurements.

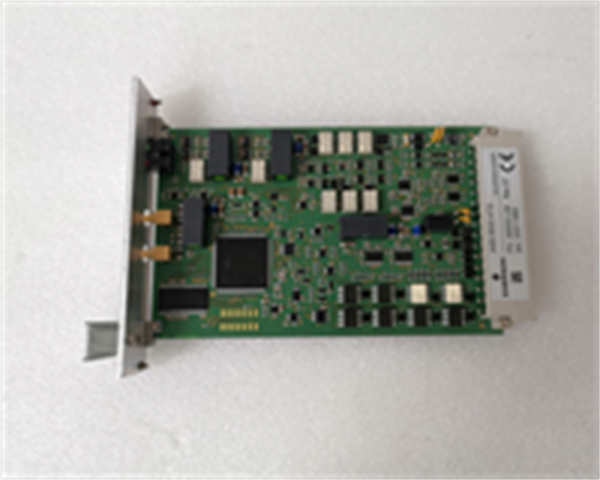

A6500-UM EMERSON

application area

The EMERSON A6500-UM universal measurement card is widely used in various industrial fields for the protection and status monitoring of rotating machinery due to its versatility and reliability

Power generation industry:used to monitor the shaft vibration,bearing status,speed and other parameters of key equipment such as steam turbines,gas turbines,water turbines,generators,etc.,to ensure the safe and stable operation of power plants.

Oil and gas industry:used for monitoring vibration,shaft displacement,and speed of equipment such as compressors,pumps,fans,and motors to prevent equipment failures and improve production efficiency.

Chemical industry:used to monitor the operating status of equipment such as reaction vessels,mixers,pumps,compressors,etc.,to ensure the safety and stability of the production process.

Metallurgical industry:applied to vibration and condition monitoring of equipment such as fans,pumps,and rolling mills,extending equipment life and reducing maintenance costs.

Paper industry:used to monitor the operation status of key equipment such as pulp pumps,vacuum pumps,fans,etc.,and improve the reliability of production lines.

Related products

The products related to the EMERSON A6500-UM universal measurement card include:

A6500-CC:EMERSON AMS 6500 ATG communication card,used to convert data from measurement cards such as A6500-UM into Modbus protocols and upload them to the upper computer system.

A6500-SR:EMERSON AMS 6500 ATG system rack,providing power and communication interfaces for A6500-UM and other AMS 6500 modules.

A6500-LC:EMERSON LVDT interface card,used in conjunction with A6500-UM for signal conditioning of LVDT sensors.

Various eddy current sensors,piezoelectric sensors,eddy current sensors,low-frequency bearing vibration sensors,Hall effect sensors,and LVDT sensors are used to connect A6500-UM cards for different parameter measurements.

AMS 6500 Insight analysis software:EMERSON’s status monitoring and analysis software,used to receive and process data from modules such as A6500-UM for trend analysis and fault diagnosis.

Installation and maintenance

Preparation before installation:Before installing the EMERSON A6500-UM universal measurement card,please refer to the installation manual of the AMS 6500 ATG system.Ensure that the system rack A6500-SR is correctly installed and powered.Check if the A6500-UM card is intact and undamaged.Determine the installation slot of A6500-UM card in the rack according to the system configuration requirements.Insert the A6500-UM card smoothly into the designated slot along the guide rail,ensuring that the connector is fully engaged.Connect the corresponding sensor cables,digital input/output cables,and analog output cables according to the wiring diagram.

Maintenance suggestion:The EMERSON A6500-UM universal measurement card typically requires lower maintenance.It is recommended to regularly check whether the connection of the card in the rack is secure and ensure that there is no looseness.Observe the LED indicator light on the card to confirm if its working status is normal.Keep the cards and system racks clean to avoid the accumulation of dust and dirt,which can affect heat dissipation and electrical connections.Regularly check the connection between sensors and cables to avoid signal transmission failures.Due to the A6500-UM’s support for hot swapping,card replacement can be performed while the system is running,but it is important to follow the relevant operating procedures.

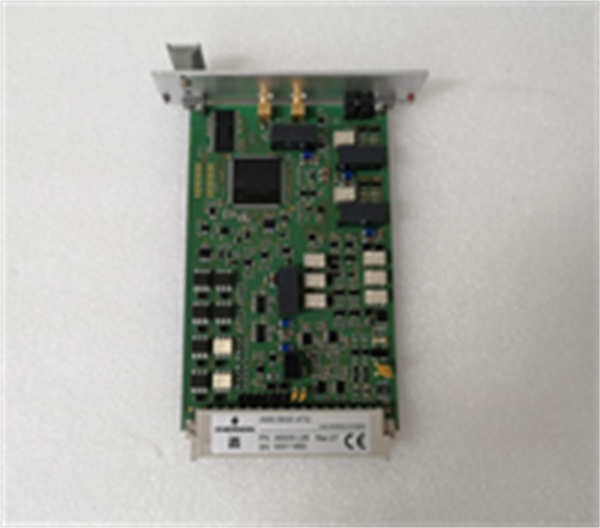

A6500-UM EMERSON

Product Guarantee

EMERSON provides standard quality assurance for A6500-UM universal measurement cards.During the warranty period,if any manufacturing defects occur in the product under normal use,we will be responsible for free repair or replacement.
