Description

ABB LDGRB-01 3BSE013177R1 is a high-performance gray encoder interface module belonging to the ABB S800 I/O series.The ABB LDGRB-01 module is mainly used to quickly and accurately measure the absolute position of the rotary encoder,and to achieve accurate reading of the rotor position through the encoder terminal.The LDGRB-01 3BSE013177R1 module supports 24V electrical interface communication with encoder terminals,which can be in parallel or serial mode,providing flexible connection options.In addition,the ABB LDGRB-01 module can provide analog and pulse signal outputs for speed monitoring instruments and pulse encoders.In ABB control systems,the LDGRB-01 module typically communicates high-speed data with controller platforms such as AMC-33(application and motor control board)through fiber optic DDCS interfaces to achieve reliable transmission and processing of position information.This module plays a crucial role in industrial applications that require precise positioning and speed feedback,and is an important component in improving control system performance and accuracy.

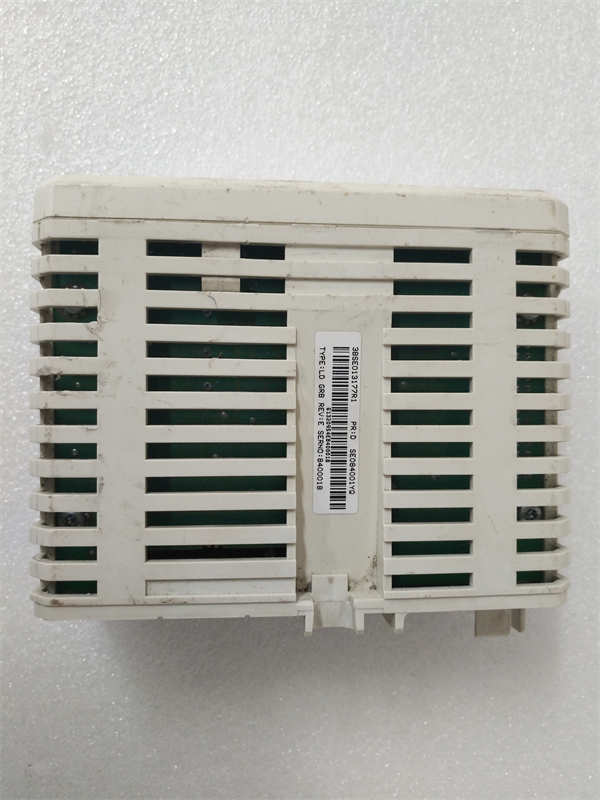

LDGRB-01 3BSE013177R1 ABB

technical specifications

Product model:LDGRB-01 3BSE013177R1

Manufacturer:ABB

Product Type:Grey Encoder Interface Module

Series:S800 I/O

Encoder interface:24V electrical interface(parallel or serial)

Position sensor support:Grey encoder(absolute)

Speed signal output:analog signal

Pulse signal output:Supports

Communication interface:Fiber DDCS(transmit Tx and receive Rx)

Installation method:Modular installation,suitable for S800 I/O cage

Main features and advantages

The ABB LDGRB-01 3BSE013177R1 gray encoder interface module has many significant features and advantages,making it perform well in position feedback applications in the field of industrial automation.Its main advantage lies in the ability to achieve high-speed and high-precision reading of absolute gray encoders,ensuring the accuracy and real-time performance of position information.The flexible encoder interface of LDGRB-01 module supports both parallel and serial communication modes,making it convenient to connect with different types of encoders.In addition to location information,ABB LDGRB-01 can also provide analog speed signals and pulse signal outputs,further expanding its functionality and application range.Through the integrated fiber optic DDCS interface,LDGRB-01 3BSE013177R1 is capable of fast and reliable data communication with ABB’s control system,ensuring real-time response and high-performance operation of the control system.In addition,as a member of the ABB S800 I/O series,ABB LDGRB-01 has excellent reliability and easy maintenance,and can adapt to various harsh industrial environments.

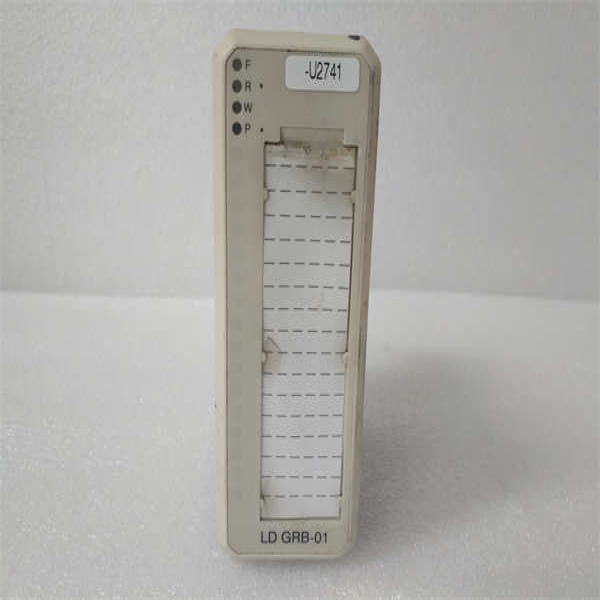

LDGRB-01 3BSE013177R1 ABB

application area

The ABB LDGRB-01 3BSE013177R1 gray encoder interface module is widely used in industrial automation fields that require precise position and velocity feedback.In motor control applications,LDGRB-01 can accurately read the absolute position of the motor rotor,providing critical position feedback signals for high-performance servo control systems.In the field of robotics,ABB LDGRB-01 can be used for joint and axis position detection,achieving precise motion control of robots.In the material conveying system,this module can provide accurate position information for synchronizing and coordinating the movements of different parts.In addition,ABB LDGRB-01 is also commonly used in automation equipment that requires high-precision position control,such as printing machinery,textile machinery,packaging machinery,etc.For example,it is used in conjunction with SCYC 55830(speed terminal board)and AMC-3(application and motor control board)to achieve precise motor position and speed control.

Related products

SCYC 55830(Tachotterminal board):A speed measurement terminal board commonly used in conjunction with LDGRB-01 to receive its analog speed signal.

AMC-3(Application&Motor Control Board):ABB’s application and motor control board,LDGRB-01 communicates with it through a fiber optic DDCS interface to transmit position information.

NTAC(Pulse Encoder Interface):A pulse encoder interface that is sometimes connected to the pulse output of LDGRB-01.

ABB S800 I/O series modules:Other input/output modules belonging to the S800 I/O series,similar to LDGRB-01,used to build complete automation systems.

ABB AC800M Controller:ABB’s high-performance PLC controller that can communicate and control with S800 I/O systems including LDGRB-01.

ABB Drives:ABB’s various AC and DC drives typically require position feedback from encoder interface modules such as LDGRB-01 for their control systems.

ABB Encoders:Various absolute gray encoders compatible with LDGRB-01.

Preparation before installation:Before installing the ABB LDGRB-01 3BSE013177R1 module,please be sure to refer to the relevant user manuals for the ABB S800 I/O system and LDGRB-01 module to understand the detailed installation steps and wiring requirements.Ensure that the S800 I/O cage is correctly installed and powered.Prepare the corresponding connecting cables according to the type of encoder used(parallel or serial).Carefully check if the power and signal lines of the encoder meet the interface requirements of LDGRB-01.When inserting the LDGRB-01 module into the slot of the S800 I/O cage,make sure to align and gently push it in until it locks.Connect the signal line between the encoder and external devices such as speedometers and pulse counters.Finally,connect the fiber DDCS interface to the corresponding controller module.

Maintenance suggestion:To ensure the long-term stable operation of ABB LDGRB-01 3BSE013177R1 module,it is recommended to regularly check whether the module is securely connected in the S800 I/O cage.Keep the surface of the module clean to avoid dust accumulation and affect heat dissipation.Regularly inspect the encoder and its connecting cables for damage or looseness.If using fiber optic communication,please ensure that the fiber optic connectors are clean and not bent or damaged.It is recommended to regularly use diagnostic tools or software provided by ABB to check the operating status and communication connections of the LDGRB-01 module.If any abnormalities are found,please promptly refer to the user manual for troubleshooting or contact ABB technical support.

Product Guarantee

ABB provides standard quality assurance for its ABB LDGRB-01 3BSE013177R1 gray encoder interface module.
