Description

Product Introduction

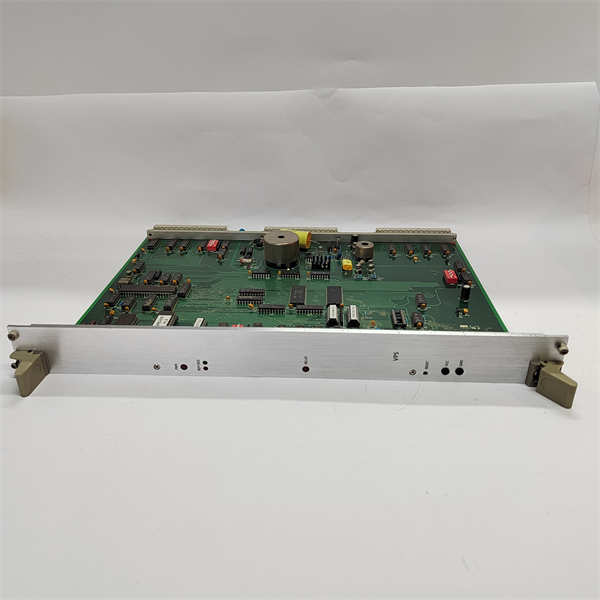

The ALSTOM 12004-102-01 VER.C is a specialized vibration processing board integral to legacy Speedtronic Mark IV and Mark V turbine control systems. Designed for critical machinery protection, this VPS (Vibration Processing System) board conditions and analyzes signals from up to four vibration sensors (seismoprobes or accelerometers), converting raw mechanical motion data into actionable intelligence for turbine health assessment.

As a core component in ALSTOM’s machinery protection framework, the 12004-102-01 VER.C provides real-time vibration amplitude monitoring, enabling early detection of imbalance, misalignment, bearing wear, or blade passing issues. The board interfaces directly with the turbine controller’s protective relay logic, triggering alarms or trip signals when pre-set vibration thresholds are exceeded. Version “C” represents enhanced signal processing stability over earlier revisions, featuring improved noise immunity in electrically noisy turbine environments. Its role is indispensable for preventing catastrophic failures in high-speed rotating equipment, directly contributing to operational safety and asset longevity in power generation applications.

Core Advantages and Technical Highlights

High-fidelity signal conditioning: The ALSTOM 12004-102-01 VER.C incorporates precision instrumentation amplifiers with 24-bit ADC resolution, ensuring accurate vibration measurement even at low amplitudes (<0>

Advanced diagnostics: Onboard DSP performs real-time FFT analysis, enabling harmonic detection and resonance identification. The board generates both overall vibration (OV) values and spectral data for integration with diagnostic software like System 1™. Continuous channel health monitoring detects sensor faults (open/short circuit) and signals loss.

Robust electrical isolation: Triple-layer isolation between field inputs, logic circuits, and backplane prevents ground loops and suppresses EMI/RFI interference from generator excitation systems. Transient voltage suppression protects against lightning-induced surges.

Engineering efficiency: Front-accessible DIP switches enable channel configuration (sensitivity, filtering) without disassembly. Hot-swappable design allows replacement during turbine operation (with bypass protocols). The 12004-102-01 VER.C maintains backward compatibility with earlier VTCC cards and Mark IV rack layouts.

Typical Application Scenarios

Gas turbine protection: In 100MW+ frame turbines, the ALSTOM 12004-102-01 VER.C monitors bearing housing vibrations at compressor and turbine sections. Its high-frequency response (10kHz) detects blade resonance events, while integrated notch filters suppress gearmesh frequency interference in driven equipment.

Steam turbine supervisory systems: For 3000+ RPM steam turbines, the board processes signals from shaft-mounted proximity probes (via signal converters) and casing accelerometers simultaneously. Its dual-range capability handles both low-frequency foundation resonance (<10Hz>

Hydroelectric generator monitoring: In pumped-storage plants, the 12004-102-01 VER.C tracks vibration during rapid start-stop transitions. Water-lubricated bearing wear is identified through trending sub-synchronous vibration components using its spectral streaming output.

Compressor station safeguarding: Pipeline centrifugal compressors utilize the board’s 4-channel density for axial/radial vibration monitoring. Its -30°C cold-start capability ensures reliability in Arctic installations.

Related Model Recommendations

12004-102-01 VER.B: Previous revision with reduced EMI shielding

12004-102-02: Dual-channel variant for auxiliary equipment

TVIB-1: Replacement vibration card for newer Mark VIe systems

IS200VPROH1C: GE Mark VIe Vibro Processing Module

TK3-2E: Speedtronic I/O Termination Board (VPS interface)

TVQB: Quad Bearing Monitor for integrated protection

TVDT: Dual Thrust Position Monitor

TREG: Turbine Regulator Controller (system core)

TDZN: Proximitor Sensor Power Supply

Installation, Commissioning and Maintenance Instructions

Installation preparation: Verify rack power shutdown and implement LOTO. Ground the Mark IV chassis to station earth (<1>12004-102-01 VER.C. Confirm backplane connector compatibility (96-pin DIN 41612). Prepare shielded twisted-pair cables (Belden 8761 recommended) with crimped MIL-C-5015 connectors.

Commissioning procedure: Set DIP switches for sensor type (SW1: 0.2/1.0V/in sensitivity) and filtering (SW2: 1kHz high-pass). Apply sensor calibration certificates to configure software scaling. Perform loop checks using portableshaker calibration source. Validate trip setpoints at 125% threshold via signal injection.

Maintenance suggestions: Quarterly inspection of terminal tightness (0.6 N·m torque). Annual cleaning of backplane contacts with DeoxIT D5. Monitor “Signal Quality” LED status during operation. Keep spare 12004-102-01 VER.C modules pre-configured for rapid swap during outages. Archive vibration baselines after major overhauls for comparative analysis.
