The ICS TRIPLEX T8151B is a high-integrity Main Processor Module for the legacy Tricon v9 Safety Instrumented System (SIS), developed by ICS Triplex (now part of Schneider Electric). Serving as the computational core of the Tricon v9 platform, this module executes critical safety logic using Triple Modular Redundant (TMR) architecture to achieve fault-tolerant control for SIL 3 applications. The T8151B processes input data through three independent 32-bit microprocessor channels, synchronizing and voting on results every 2-4 ms to ensure fail-safe operation. Designed for extreme reliability in hazardous environments, it supports complex shutdown logic for Emergency Shutdown Systems (ESD), Fire & Gas (F&G), and Turbine Control applications. The module interfaces seamlessly with Tricon I/O cards via the TriBus communication network and features extensive diagnostics to detect >99% of dangerous failures. As a cornerstone of legacy safety systems, the ICS TRIPLEX T8151B delivers unmatched availability (>99.999%) for refineries, power plants, and offshore platforms where system obsolescence is a key operational challenge.

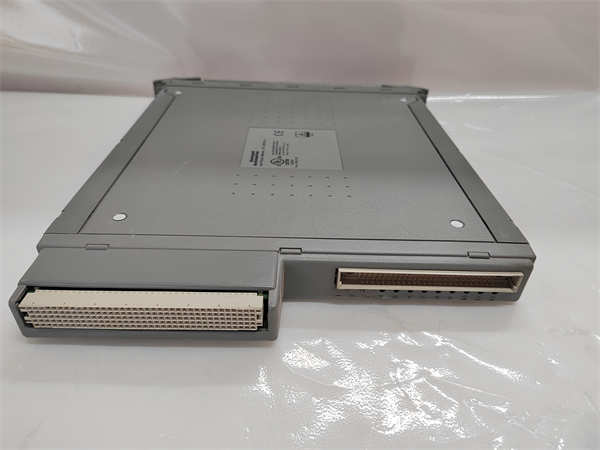

ICS TRIPLEX T8151B
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | ICS TRIPLEX T8151B |
| Manufacturer | ICS Triplex (Schneider Electric) |
| Product Type | TMR Main Processor Module |
| Architecture | Triple Modular Redundant (TMR) |
| Processor | Three independent 32-bit microprocessors |
| Memory | 4 MB SRAM per channel, 1 MB EPROM per channel |
| Voting Mechanism | 2-out-of-3 (2oo3) hardware voting |
| Safety Integrity Level | SIL 3 (IEC 61508/61511 certified) |
| Scan Time | 2-4 ms (application-dependent) |
| Backplane Interface | TriBus (20 Mbps) |
| Communication Ports | RS-232 (service port), TriStation protocol |
| Power Requirement | +5 VDC @ 3.2A (via backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Relative Humidity | 5% to 95% non-condensing |
| MTBF | >100 years (calculated) |
| Certifications | ATEX, IECEx, FM, CSA |
Main Features and Advantages
Ultra-Reliable TMR Architecture: Three isolated processing channels execute identical logic simultaneously. Dedicated hardware voters compare results every scan cycle, automatically correcting single-channel faults without process interruption. This design achieves >99.999% availability, making the T8151B ideal for safety-critical functions.
Comprehensive Diagnostics: Continuous self-tests monitor processor health, memory integrity (via parity checks), TriBus synchronization, and power quality. Faults are reported through LED indicators and TriStation diagnostics, enabling predictive maintenance. The module’s diagnostic coverage exceeds 99%, meeting rigorous SIL 3 requirements.
Deterministic Performance: With sub-4ms scan times and hardware-level voting, the ICS TRIPLEX T8151B guarantees predictable response for fast-acting ESD sequences. Its real-time operating system prioritizes safety logic execution, ensuring compliance with ANSI/ISA-84 shutdown timing requirements.
Legacy System Support: Designed for seamless integration with Tricon v9 racks (e.g., Model 3008 chassis) and I/O modules (e.g., 3503E digital input). Supports Tricon Classic communication protocols for peer-to-peer networking and DCS integration.
Field-Proven Robustness: Military-grade components withstand shock/vibration (IEC 60068-2-27/6) and EMI/RFI interference. Conformal coating protects against corrosive atmospheres. Hot-swap capability allows module replacement without system shutdown.
Application Field
The ICS TRIPLEX T8151B is deployed in high-hazard processes requiring certified safety performance. In oil & gas, it serves as the backbone for offshore platform ESD systems, executing wellhead shutdowns and pipeline isolation during gas leaks or overpressure events. Refineries utilize it for FCCU reactor emergency depressurization and flare knockout drum control.
Power generation facilities rely on the T8151B for turbine overspeed protection (meeting API 670 standards) and burner management systems in coal-fired plants. Chemical plants implement it for reactor runaway prevention and toxic gas detection shutdowns. Nuclear facilities leverage its TMR design for safety-related cooling systems.
The module’s legacy compatibility makes it crucial for brownfield upgrades in LNG liquefaction trains and pharmaceutical batch processes, where full system replacement is cost-prohibitive. Its -40°C to +70°C operating range supports arctic drilling operations and desert pipeline pumping stations.
Related Products
ICS TRIPLEX 3503E: Digital Input Module – Primary field interface for T8151B safety systems.
ICS TRIPLEX 3620: Analog Input Module – Processes 4-20mA signals for T8151B logic.
ICS TRIPLEX 4351B: TMR Analog Input – High-reliability version for T8151B systems.
ICS TRIPLEX 3008: Main Chassis – Houses the T8151B processor and I/O modules.
ICS TRIPLEX T8461: Communication Module – Bridges T8151B to DCS/SCADA systems.
ICS TRIPLEX T0120: Firmware EPROM Card – Stores application logic for T8151B.
ICS TRIPLEX 4000103-510: Power Supply – Provides conditioned power to T8151B chassis.
Tricon CX 3008: Modern Chassis – Migration path for T8151B systems.

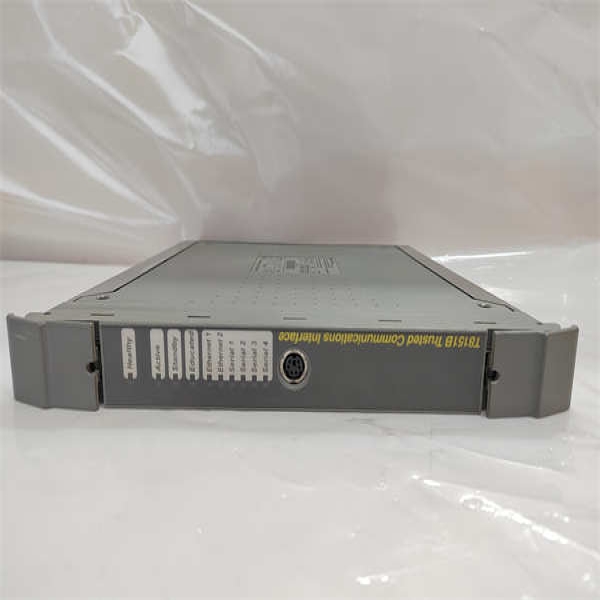

ICS TRIPLEX T8151B
Installation and Maintenance
Pre-installation preparation: Verify chassis compatibility (Tricon v9). Discharge static electricity using wrist strap. Prepare TriStation 7.0+ software for configuration. Check slot alignment and backplane connector cleanliness.
Maintenance recommendations: Monitor TriStation diagnostics for channel disagreement or memory errors. Perform annual contact resistance checks on backplane connectors. Maintain EPROM firmware backups for rapid recovery. When hot-swapping the T8151B, follow sequence: (1) Initiate swap in TriStation, (2) Release module latch, (3) Insert replacement, (4) Verify auto-synchronization. Avoid exposing modules to condensation during storage.
