Description

The GE HE693ADC409A-22 is a high-density, 16-channel analog-to-digital converter (ADC) module designed for the venerable yet highly reliable GE Fanuc Series 90-30 Programmable Logic Controller (PLC) platform. This module serves as a critical interface between the digital control system and the analog process world, accurately converting analog voltage or current signals from field transmitters and sensors into precise digital values that the PLC CPU can process for control, monitoring, and data acquisition. The GE HE693ADC409A-22 is renowned for its channel density, allowing it to handle up to sixteen analog inputs in a single slot, which maximizes control rack space efficiency and significantly reduces the cost per point for large-scale applications. Its design emphasizes robustness and accuracy, featuring channel-to-channel isolation to prevent ground loops and mitigate electrical noise, ensuring signal integrity even in the electrically harsh environments typical of industrial settings. For facilities operating Series 90-30 systems, the GE HE693ADC409A-22 remains an indispensable component for maintaining and modernizing control strategies involving critical process variables like pressure, temperature, flow, and level.

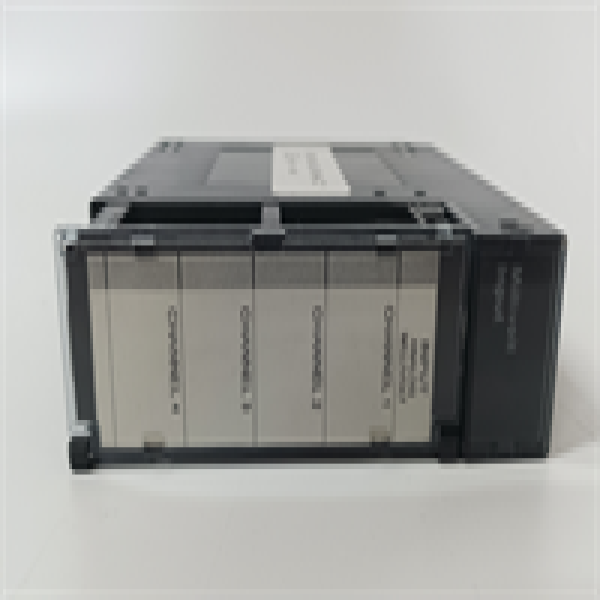

HE693ADC409A-22 GE

Technical Specifications

Main Features and Advantages

High-Density and Flexible Configuration: The primary advantage of the GE HE693ADC409A-22 is its high channel count. Sixteen independently configurable inputs on a single module drastically reduce hardware footprint and simplify cabinet layout. Each channel can be individually software-configured for a specific voltage or current range, providing unparalleled flexibility to interface with a diverse mix of sensors and transmitters without requiring jumpers or hardware modifications.

Superior Signal Integrity and Noise Immunity: Engineered for industrial reliability, the module incorporates 500V AC of optical isolation between the field wiring and the internal PLC bus. This isolation is critical for breaking ground loops and rejecting common-mode noise, ensuring that the digitized data received by the CPU is accurate and stable, which is the foundation for precise process control and reduced operational variances.

Seamless Integration and Diagnostics: The GE HE693ADC409A-22 is fully supported by the Proficy Machine Edition and Logicmaster programming software suites. This allows for easy configuration, scaling, and real-time diagnostics directly from the engineer’s workstation. Status LEDs on the module provide immediate visual feedback on power, communication, and channel health, enabling rapid troubleshooting and minimizing mean time to repair (MTTR).

Proven Legacy Reliability: As a cornerstone of the Series 90-30 system, this module is built to last. Its design is proven in thousands of installations worldwide, offering extreme mean time between failures (MTBF). This reliability, combined with continued long-term availability support, makes the GE HE693ADC409A-22 a trusted component for sustaining critical automation infrastructure for decades.

Application Field

The GE HE693ADC409A-22 finds its primary application in industrial processes controlled by the GE Fanuc Series 90-30 PLC where high-density analog signal acquisition is required. It is extensively used in water and wastewater treatment plants for monitoring pH, chlorine levels, tank pressures, and flow rates across numerous points. In manufacturing and machining automation, this module is deployed to read signals from analog sensors monitoring hydraulic pressure, temperature controllers, and position feedback devices. It is also a fundamental component in material handling and batch processing systems for weighing scales and recipe management. The GE HE693ADC409A-22 is particularly valued in legacy upgrade projects, allowing existing Series 90-30 systems to continue operating reliably by replacing aging or failed analog input modules, thereby extending the lifecycle of the entire control system without a costly and disruptive full-scale migration.

Related Products

GE HE693RTD708A: An 8-channel RTD input module for direct temperature measurement using RTD sensors.

GE HE693ADC404: A 4-channel analog input module, offering a lower-density alternative for smaller applications.

GE HE693DAC705A: A 4-channel analog output module, used to command control valves and variable frequency drives.

GE HE693ETH001: An Ethernet interface module for connecting the Series 90-30 rack to a plant network.

GE IC693CPU350: A popular Series 90-30 CPU module that would be the central processor for a rack containing the HE693ADC409A-22.

GE HE693ADC409A-21: A similar 16-channel analog input module, potentially with a different firmware or compatibility revision.

Installation and Maintenance

Pre-installation preparation: Before installing the GE HE693ADC409A-22, ensure power to the Series 90-30 rack is completely disconnected. Verify the module’s slot placement according to the system’s configuration; analog modules typically have specific slot requirements. Have the appropriate high-density analog input cable (e.g., a IC693CBL316 or similar) ready for termination to the field wiring. Handle the module by the edges to avoid electrostatic discharge (ESD) damage.

Maintenance recommendations: Maintenance for the GE HE693ADC409A-22 is minimal. Focus on ensuring terminal connections are secure and free from corrosion. Periodically monitor the module’s status LEDs for any fault indications. The most effective maintenance is performed through the programming software, which can be used to run diagnostics, check for signal drift, and verify the health of each channel. Keeping a calibrated spare module on hand is a recommended best practice to facilitate a swift replacement and minimize process downtime.
