Description

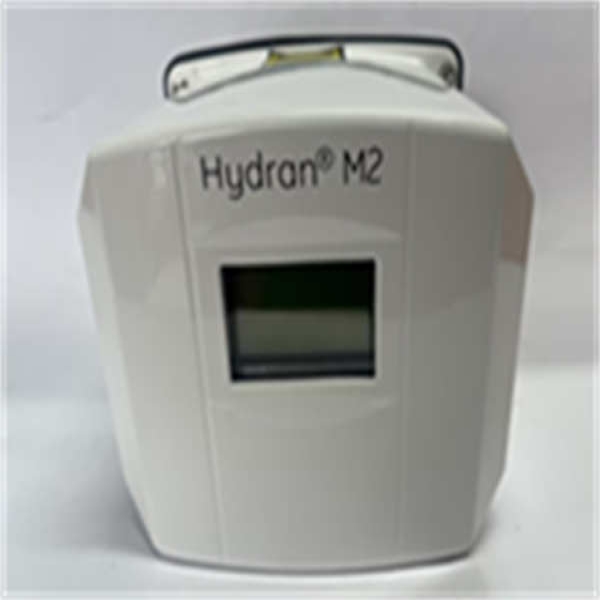

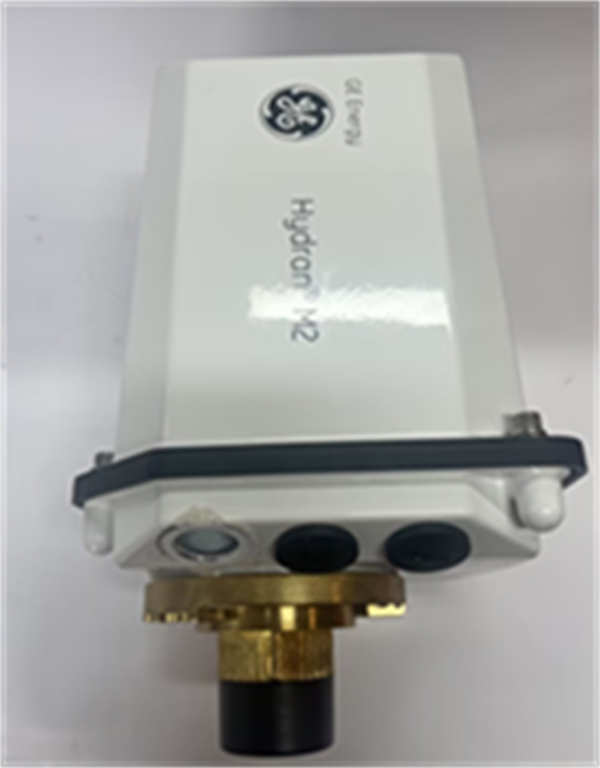

The GE HYDRAN M2 is an advanced, continuous online monitoring system designed for the real-time analysis of key fault gases dissolved in transformer insulating oil. This sophisticated device is a critical component in modern predictive maintenance strategies for electrical assets, specifically power transformers. The core function of the GE HYDRAN M2 is to provide early and accurate detection of incipient faults—such as thermal overheating, partial discharge, and arcing—within a transformer by measuring the concentrations of hydrogen (H₂), carbon monoxide (CO), and moisture (H₂O). By employing semi-permeable membrane technology and robust electrochemical sensors, the system extracts these gases from the oil and delivers precise readings, enabling asset managers to move from reactive or time-based maintenance to a proactive, condition-based approach. The GE HYDRAN M2 is designed for rugged substation environments, offering reliable and stable performance that is essential for preventing catastrophic transformer failures, minimizing unplanned outages, and maximizing the lifespan of these critical and costly assets. It serves as a sentinel, providing continuous intelligence on the health of the transformer 24/7.

HYDRAN M2 GE

Technical Specifications

Main Features and Advantages

Proactive Fault Detection and Early Warning: The primary advantage of the GE HYDRAN M2 is its ability to provide an early warning of developing faults long before they become critical. By continuously tracking the generation rates of key fault gases, it can detect abnormal thermal and electrical activity at its earliest stages. This allows maintenance teams to schedule investigations and interventions during planned outages, preventing costly forced outages and extensive damage.

Proven and Reliable Sensor Technology: The system utilizes field-proven, maintenance-friendly electrochemical sensors specifically designed for longevity and stability in oil analysis. The semi-permeable membrane technology provides a clean, representative sample of gas to the sensors, protecting them from oil contamination and ensuring consistent, reliable readings over extended periods, which reduces the total cost of ownership.

Comprehensive Asset Health Assessment: While many monitors focus solely on hydrogen, the GE HYDRAN M2 provides a more comprehensive health assessment by also monitoring carbon monoxide (a key indicator of paper insulation degradation) and moisture (a critical parameter affecting dielectric strength and paper aging). This trio of measurements offers a more complete picture of the transformer’s condition, enabling better-informed decision-making.

Robust Design and Seamless Integration: Built for harsh substation environments, the GE HYDRAN M2 features a rugged IP54 enclosure and a wide operating temperature range. Its standard 4-20 mA outputs and Modbus RTU communication protocol allow for seamless integration into virtually any SCADA system, Distributed Control System (DCS), or plant asset management software, enabling remote monitoring and centralized data trending from the control room.

Application Field

The GE HYDRAN M2 is deployed exclusively for monitoring the health of high-value liquid-filled electrical equipment. Its primary application is on power transformers within electrical transmission and distribution networks, including those at utility substations, large industrial plants (e.g., metals, mining, chemicals), and wind farms. It is particularly critical for units that are strategically important, difficult to access, or have a history of operational issues. The GE HYDRAN M2 is also installed on other apparatus such as load tap changers (LTCs) and reactor banks. The data it provides is used for condition-based maintenance, helping to prioritize transformer maintenance schedules, validate the need for further investigation (like full laboratory DGA or internal inspection), and ultimately, to prevent catastrophic failures that can lead to millions of dollars in equipment damage, fines for unmet load obligations, and significant reputational harm.

HYDRAN M2 GE

Related Products

GE HYDRAN M2-X: An extended version of the monitor, potentially with additional gas detection capabilities or communication options.

GE HYDRAN 201R: A portable, field-test version of the Hydran technology for spot checks and calibration verification.

GE TXP™ Transformer Monitoring Platform: A comprehensive monitoring system that can integrate data from the HYDRAN M2 with other measurements like temperature, load, and Bushing monitoring.

GE B90 Differential Relay: A protective relay for transformers, which benefits from the diagnostic data provided by the HYDRAN M2.

GE Vita™ Asset Health Management Software: A cloud-based analytics platform that can aggregate and analyze data from multiple HYDRAN M2 units across a fleet for predictive insights.
