Description

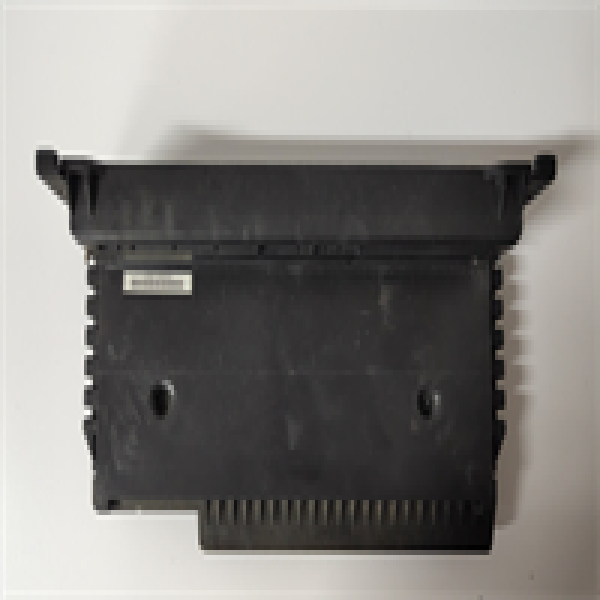

The GE IC660TBD024 is a high-performance, specialized communication interface module from the GE Fanuc Genius® I/O system, designed to function as a Genius Bus to TCP/IP Ethernet Gateway. This advanced module serves as a critical bidirectional protocol converter, enabling seamless and robust data exchange between the deterministic Genius bus network and standard IEEE 802.3 Ethernet networks. The core function of the GE IC660TBD024 is to map data from up to 32 Genius I/O blocks—including discrete, analog, and special function modules—into a standard Ethernet TCP/IP protocol stack. This allows any Ethernet-enabled device, such as a PLC, HMI, SCADA system, or asset management software, to directly access and interact with Genius I/O data without requiring a native Genius bus controller. The GE IC660TBD024 effectively makes the entire Genius I/O subsystem appear as a connected node on the plant network, enabling remote monitoring, configuration, and data acquisition from anywhere on the network. It is engineered for industrial reliability with features like electrical isolation and comprehensive diagnostics, making it an indispensable tool for modernizing legacy systems, integrating islands of automation, and implementing plant-wide data connectivity strategies.

IC660TBD024 GE

Technical Specifications

Main Features and Advantages

Powerful Ethernet Connectivity and Integration: The primary advantage of the GE IC660TBD024 is its ability to bridge the gap between the proprietary Genius bus and open, standard Ethernet. It encapsulates Genius I/O data into standard TCP/IP packets, allowing it to communicate with a vast array of Ethernet-enabled devices. This enables HMIs and SCADA systems to directly visualize Genius I/O data, and it allows higher-level systems like MES or ERP to collect production data without needing a dedicated PLC as an intermediary.

Advanced Diagnostics and Web Server Interface: A standout feature of the GE IC660TBD024 is its embedded web server. Users can access the module’s configuration and diagnostic pages using a standard web browser, providing a user-friendly interface for monitoring the health of the Genius network, checking the status of individual I/O points, and viewing detailed diagnostic and traffic statistics. This greatly simplifies troubleshooting and remote support.

Flexible Data Access and Security: The module supports multiple methods for data access, including a proprietary protocol for efficient data exchange and Modbus TCP/IP server functionality. This Modbus TCP capability is particularly powerful, as it allows any Modbus TCP client (which is virtually any modern PLC, HMI, or software package) to read from and write to the Genius I/O blocks. This provides unparalleled flexibility for system integration. Basic security features like IP address filtering help protect the network from unauthorized access.

Robust Industrial Design and Reliability: Engineered for the plant floor, the GE IC660TBD024 includes 1500V of isolation between the Genius bus and the Ethernet network. This protects both networks from electrical noise, ground loops, and voltage transients, ensuring data integrity and network stability. Its rugged design ensures reliable operation in the demanding environments typical of industrial automation.

Application Field

The GE IC660TBD024 is deployed in a wide range of applications where there is a need to integrate legacy Genius I/O into modern Ethernet-based network architectures. It is extensively used for asset monitoring and data collection, allowing a central SCADA system to gather data from remote Genius I/O panels across a facility without the cost of a full PLC at each location. In modernization projects, it is used to keep existing and reliable Genius I/O operational while migrating the central control platform to a newer system that uses Ethernet as its backbone. The GE IC660TBA026M is also ideal for providing HMIs with a direct window into the Genius I/O state and for enabling advanced analytics software to access machine data for predictive maintenance and operational intelligence applications.

IC660TBD024 GE

Related Products

GE IC660TBD020: A similar Genius to Ethernet gateway, potentially an earlier version.

GE IC660ELB921: A 32-point DC input Genius block that would be connected to the bus.

GE IC690TBD202: A Genius to Ethernet gateway for the Series 90-30 platform.

GE Rx3i PLC with ETM001 Ethernet module: A modern controller that could communicate with the IC660TBD024 via Ethernet.

GE Proficy HMI/SCADA: Software that can directly communicate with the gateway to display Genius I/O data.

GE Genius Bus Controller (IC693BEM331 for Series 90-30): A traditional method for integrating Genius I/O, highlighting the alternative approach this gateway provides.
