Description

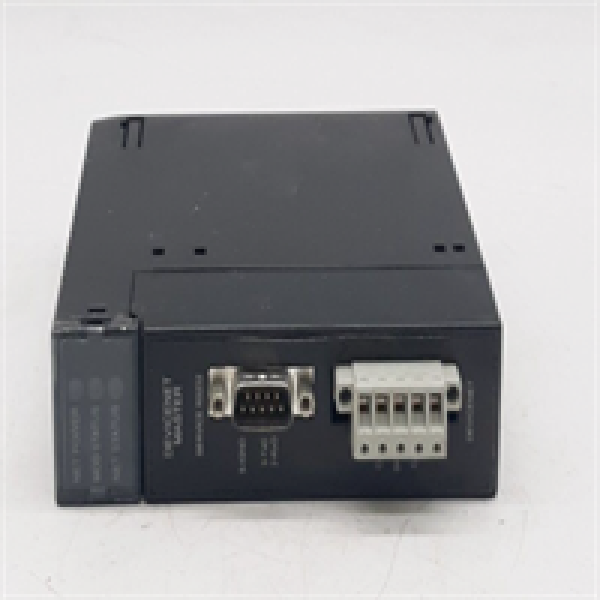

The GE Fanuc IC693DNM200-BD is a specialized DeviceNet Master Scanner Module designed for the GE Fanuc Series 90-30 Programmable Logic Controller system. This communication module enables seamless integration of Series 90-30 PLCs into DeviceNet networks, serving as the master controller that manages data exchange with up to 63 DeviceNet slave devices. The GE Fanuc IC693DNM200-BD provides a robust industrial networking solution that simplifies wiring, reduces installation costs, and enhances system flexibility by allowing distributed devices to communicate over a single network cable. This module operates as the central command point on the DeviceNet network, scanning connected slave devices, processing input/output data, and managing network communications according to the DeviceNet protocol specification. The GE Fanuc IC693DNM200-BD offers significant value through its ability to create distributed control architectures, reduce wiring complexity, and provide comprehensive diagnostic capabilities for maintaining network health and performance.

IC693DNM200-BD GE

Technical Specifications

Main Features and Advantages

The GE Fanuc IC693DNM200-BD offers comprehensive DeviceNet master functionality with several advanced features. Complete DeviceNet compliance: The module fully conforms to ODVA DeviceNet specifications, ensuring compatibility with a wide range of DeviceNet slave devices from multiple vendors. Flexible network configuration: Supporting all standard DeviceNet baud rates (125K, 250K, 500K) and configurable node addressing, the GE Fanuc IC693DNM200-BD provides adaptability to various network requirements and distances. The module’s substantial I/O capacity (512 bytes input/output) enables communication with numerous devices while handling significant data exchange requirements.

Enhanced diagnostic capabilities: Comprehensive LED status indicators provide immediate visual feedback on network health, communication status, and module operation, facilitating quick troubleshooting and maintenance. The GE Fanuc IC693DNM200-BD features automatic baud rate detection and node addressing capability, simplifying network setup and expansion. Optical isolation on the network interface protects the PLC backplane from electrical noise and ground potential differences, ensuring reliable operation in harsh industrial environments. The module supports both polled and change-of-state communication modes, optimizing network bandwidth usage based on application requirements. Easy configuration through programming software simplifies network setup and monitoring, reducing engineering time and improving system reliability.

Application Field

The GE Fanuc IC693DNM200-BD is extensively used in manufacturing and process industries where distributed device networking is essential. In automotive manufacturing, this module connects PLC systems with various DeviceNet-enabled devices including photoelectric sensors, limit switches, motor starters, variable frequency drives, and operator interfaces on production lines and assembly systems. The GE Fanuc IC693DNM200-BD is particularly valuable in material handling applications such as conveyor systems, automated storage and retrieval systems, and packaging machinery where it reduces wiring complexity and enables flexible device integration.

In food and beverage processing, the GE Fanuc IC693DNM200-BD networks hygienic devices, flow meters, temperature sensors, and control valves while providing the necessary diagnostic capabilities for maintenance planning. The building automation sector utilizes this module for integrating HVAC components, lighting controls, and access control systems over a unified network infrastructure. The GE Fanuc IC693DNM200-BD also serves OEM equipment manufacturers who require standardized networking solutions for their machines, enabling easier integration with customer systems and reducing installation time through simplified wiring architectures. The module’s robust design makes it suitable for harsh environments found in mining, forestry, and heavy equipment applications.
