Description

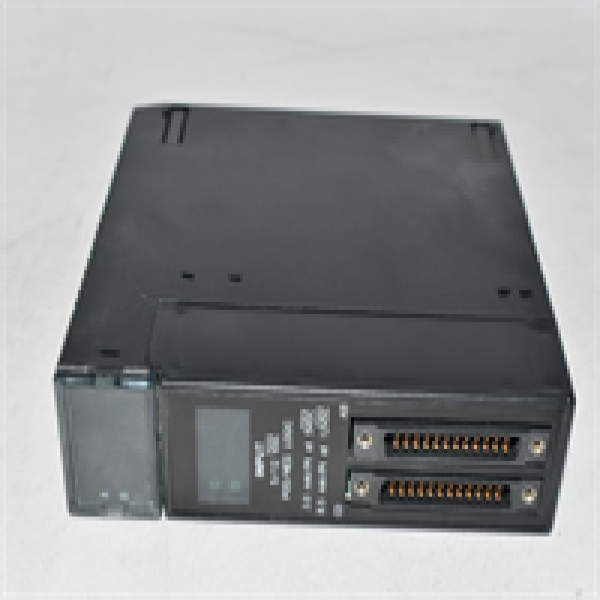

The GE Fanuc IC693MDL654 is a high-density Discrete Output Module designed for the GE Fanuc Series 90-30 Programmable Logic Controller system. This robust output module provides 32 points of relay output capability, offering a compact and efficient solution for controlling a wide array of industrial actuators, solenoids, motor starters, and other electrical devices. The GE Fanuc IC693MDL654 serves as a critical interface between the PLC’s control logic and the physical field devices, translating digital commands from the processor into actual electrical operations within the automated system. Designed for reliability and performance in industrial environments, this module features Form C (break-before-make) relay contacts that provide both normally open and normally closed switching configurations for maximum application flexibility. The GE Fanuc IC693MDL654 delivers exceptional value by maximizing I/O point density while maintaining reliable switching performance, making it an ideal choice for applications requiring numerous output points within limited rack space.

IC693MDL654 GE

Technical Specifications

Main Features and Advantages

The GE Fanuc IC693MDL654 offers several advanced features that make it stand out in industrial automation applications. High-density design: With 32 output points in a single module slot, the GE Fanuc IC693MDL654 provides exceptional space efficiency, reducing the overall footprint of control systems while maximizing output capability. Versatile relay contacts: The Form C (SPDT) contact configuration offers both normally open and normally closed switching options, providing unparalleled flexibility for various control applications without requiring additional components.

Robust switching capability: The 2A contact rating at both AC and DC voltages allows the GE Fanuc IC693MDL654 to handle a wide range of industrial loads including solenoids, motor starters, contactors, and indicator lights. Individual point fusing provides protection against short circuits and overload conditions, preventing single-point failures from affecting the entire module. Comprehensive status indication: Each output point features its own LED indicator, providing immediate visual feedback of output status for easy troubleshooting and maintenance. The GE Fanuc IC693MDL654 offers excellent electrical isolation (1500V RMS) between field wiring and the PLC backplane, protecting the control system from electrical noise and voltage transients commonly found in industrial environments. The module’s mechanical construction ensures reliable operation in demanding conditions, with high vibration resistance and secure screw terminal connections for field wiring.

Application Field

The GE Fanuc IC693MDL654 is widely deployed across numerous industries where high-density relay output control is required. In manufacturing automation, this module is extensively used in automotive assembly lines, packaging machinery, and material handling systems where it controls valves, clutches, brakes, and numerous other actuators. The GE Fanuc IC693MDL654 is particularly valuable in applications requiring mixed voltage control, as its relay outputs can switch both AC and DC loads simultaneously from the same module.

In building automation and infrastructure applications, the GE Fanuc IC693MDL654 controls lighting systems, HVAC equipment, pump controls, and access control devices in commercial and industrial facilities. The module’s Form C contacts make it ideal for safety interlock circuits and transfer switching applications where both normally open and normally closed contacts are required. The GE Fanuc IC693MDL654 serves water and wastewater treatment plants for controlling pumps, valves, and chemical feed systems with reliable switching performance. In original equipment manufacturing, this module is built into industrial machinery, test equipment, and processing systems where high point density and reliable switching are essential. The module’s ability to handle both AC and DC loads makes it suitable for international applications where voltage standards may vary.

Related Products

IC693MDL653: 16-point relay output module with lower density

IC693MDL655: 32-point transistor output module for DC applications

IC693MDL740: 32-point digital input module for complementary applications

IC693MDL645: 16-point output module with different contact ratings

IC693ACC300: Power supply module for system operation

IC693CPU311: Entry-level CPU compatible with the output module

IC693CHS397: Relay output simulator for testing applications

IC690TBD001: Terminal block accessories for wiring convenience
