The GE IC697CPM790 is a high-performance central processing unit (CPU) module for the GE Fanuc Series 90-70 programmable logic controller system, representing the pinnacle of processing capability within this legendary platform. As the brain of the control system, this powerful CPU executes complex logic, motion control, and process automation tasks with exceptional speed and reliability. The IC697CPM790 operates on a robust real-time operating system and supports programming in multiple languages including Ladder Logic, Structured Text, and Function Block Diagrams per IEC 61131-3 standards. This module is specifically engineered for demanding applications that require extensive memory capacity, high I/O handling capabilities, and advanced computational performance, making it suitable for everything from complex manufacturing automation to critical process control systems.

Featuring a 25 MHz microprocessor with enhanced processing capabilities, the GE IC697CPM790 delivers significantly improved execution speeds compared to earlier Series 90-70 CPUs, enabling faster scan times and more responsive control for time-critical applications. The module includes substantial battery-backed memory for program storage and data retention, ensuring continuity of operations during power interruptions. With support for extensive discrete and analog I/O points, plus sophisticated networking capabilities through various communication modules, the IC697CPM790 can serve as the cornerstone of large, distributed control systems. Its rugged design ensures reliable operation in industrial environments, while backward compatibility with existing Series 90-70 I/O systems provides a clear migration path for modernizing legacy installations without complete system overhaul.

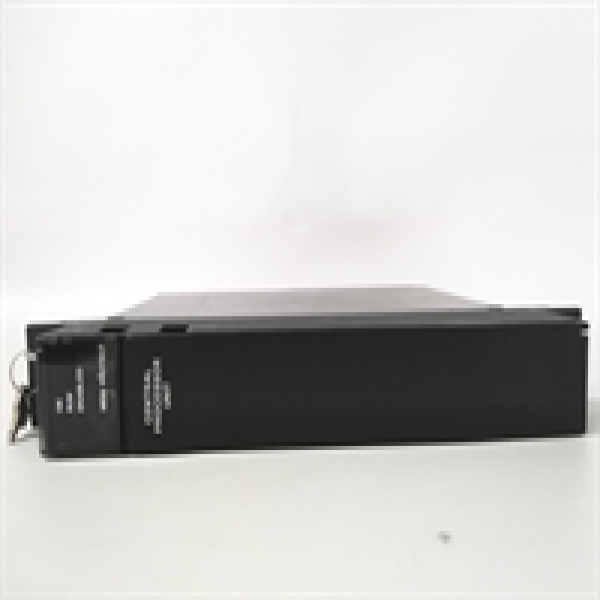

IC697CPM790 GE

Technical Specifications

Main Features and Advantages

The GE IC697CPM790 stands out with several advanced features that deliver exceptional performance and reliability. Its enhanced 25 MHz processor provides significantly faster execution speeds compared to previous Series 90-70 CPUs, reducing scan times and improving response times for critical control applications. The substantial memory capacity, expandable to 1.5MB, supports complex control strategies, extensive data logging, and sophisticated program structures that would overwhelm lesser processors. This capability makes the IC697CPM790 ideal for applications requiring advanced mathematical computations, process control algorithms, or large-scale data handling.

A key advantage of this CPU is its robust communication capabilities, supporting multiple network protocols through various communication modules. This allows the IC697CPM790 to function as part of distributed control systems, coordinating operations across multiple nodes and interfacing with supervisory systems. The module’s rugged industrial design ensures reliable operation in challenging environments, with wide operating temperature ranges and immunity to electrical noise. The comprehensive diagnostic capabilities, including detailed status indicators and system monitoring functions, provide valuable insights into system performance and facilitate quick troubleshooting. The GE IC697CPM790 also offers excellent backward compatibility, protecting investments in existing Series 90-70 I/O systems while providing a clear path for future expansion and modernization.

Application Field

The GE IC697CPM790 finds application in numerous industries that demand high-performance, reliable control systems for complex processes. In manufacturing automation, it serves as the primary controller for automotive production lines, robotic workcells, and material handling systems where its fast processing speed and large I/O capacity are essential for coordinating complex operations. The module’s robust performance makes it particularly suitable for heavy industries such as metal processing, industrial machinery manufacturing, and large-scale assembly operations where precision control and reliability are critical.

In process industries, the IC697CPM790 provides the computing power for critical control systems in chemical processing plants, oil and gas facilities, and power generation stations where its extensive analog I/O capabilities and processing power manage complex control loops and safety systems. The module’s communication capabilities enable integration into distributed control architectures, making it valuable for water and wastewater treatment facilities, pharmaceutical manufacturing, and food processing plants. The GE IC697CPM790 is also deployed in infrastructure applications such as transportation systems, mining operations, and energy management systems where its reliability and long-term support availability ensure continuous operation of mission-critical processes. The CPU’s scalability and networking features make it ideal for applications requiring integration with supervisory systems and enterprise-level data collection.
