Description

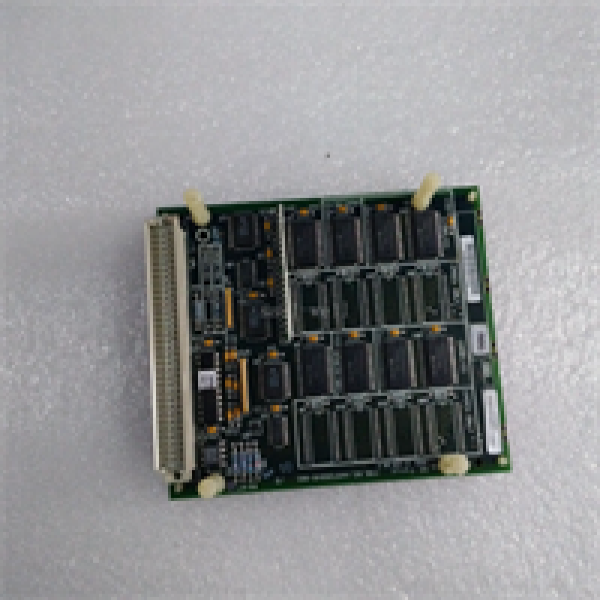

The GE IC697MEM717C is a specialized memory expansion module designed for the GE Fanuc Series 90-70 programmable logic controller system, providing essential additional non-volatile memory capacity for complex control applications. This factory-configured memory module serves as a critical enhancement to the Series 90-70 CPUs, significantly expanding the available memory for storing large control programs, extensive data tables, complex recipe parameters, and detailed historical data logging. The “C” suffix indicates a specific factory configuration or capacity variant, ensuring optimized performance for particular application requirements. The IC697MEM717C interfaces directly with compatible Series 90-70 CPU modules through the dedicated memory expansion port, delivering seamless memory augmentation without compromising the system’s processing speed or operational integrity.

This memory module employs high-quality non-volatile memory technology that maintains stored data without external power, ensuring program and data retention during power interruptions or system shutdowns. The GE IC697MEM717C is engineered to meet the rigorous demands of industrial environments, featuring robust construction that withstands vibration, electrical noise, and temperature variations typical of factory settings. By significantly expanding the available memory space, this module enables the implementation of more sophisticated control strategies, advanced mathematical computations, and comprehensive data management capabilities that would exceed the built-in memory capacity of standard CPU modules. The installation of the IC697MEM717C effectively future-proofs Series 90-70 systems, allowing for program expansions and additional functionality without requiring complete controller replacement.

IC697MEM717C GE

Technical Specifications

Main Features and Advantages

The GE IC697MEM717C provides several significant features that enhance the capabilities of Series 90-70 systems. Its substantial memory expansion capacity allows for the implementation of complex control algorithms, extensive data storage, and sophisticated application programs that would be impossible with standard CPU memory alone. The non-volatile memory technology ensures that critical program data and operational parameters are maintained during power outages, with battery backup support providing extended data retention periods. This feature is particularly valuable in continuous process applications where program integrity is essential for safety and operational consistency.

The module’s direct interface with the CPU ensures high-speed data access without creating communication bottlenecks or affecting system scan times. The robust industrial design of the IC697MEM717C provides reliable operation in challenging environmental conditions, with protection against vibration, electrical noise, and temperature extremes that could affect lesser memory products. The factory configuration (-C variant) ensures optimized performance and compatibility with specific application requirements, reducing installation time and potential configuration errors. The memory expansion provided by the GE IC697MEM717C effectively extends the functional life of Series 90-70 systems by enabling the addition of new features and capabilities without requiring complete controller replacement, protecting investments in existing automation infrastructure.

Application Field

The GE IC697MEM717C is essential for Series 90-70 applications that require extensive memory capacity beyond standard CPU capabilities. In complex manufacturing systems, this memory module enables the implementation of sophisticated control strategies for automotive assembly lines, robotic workcells, and precision machining centers where large program structures and extensive data handling are required. The additional memory capacity is particularly valuable for applications involving complex sequencing, advanced motion control, and extensive recipe management that demand substantial memory resources.

In process industries, the IC697MEM717C supports critical applications in chemical processing, pharmaceutical manufacturing, and food processing facilities where extensive data logging, batch processing, and regulatory compliance tracking require significant memory resources. The module’s non-volatile memory capability ensures that important process parameters and recipe data are maintained during power interruptions, which is crucial for product quality and batch consistency. Infrastructure applications including power generation, water treatment facilities, and transportation systems benefit from the expanded memory for historical data collection, trend analysis, and predictive maintenance applications. The GE IC697MEM717C is also widely used in modernization projects where existing Series 90-70 systems require enhanced capabilities to handle new functions and expanded I/O configurations without replacing the entire control platform.

IC697MEM717C GE

Related Products

IC697CPM790: High-performance Series 90-70 CPU module that accepts the IC697MEM717C memory expansion.

IC697ACC701: Battery backup module that provides power for memory retention in the IC697MEM717C.

IC697PWR711: Power supply module that provides stable power to the CPU and memory expansion system.

IC697CHS770: 7-slot VME chassis that houses the CPU and memory module.

IC697MEM719: Alternative memory expansion module with different capacity options.

IC697BEM731: Genius bus controller module for distributed I/O systems that may utilize expanded memory capabilities.

IC697ALG730: Analog I/O module that can benefit from additional memory for data processing.

IC697CMM711: Communication module that works with the expanded memory for enhanced data handling.
