Description

The GE Fanuc IC698CPE010 is a robust and high-capacity power supply module specifically engineered for the PACSystems RX7i platform. This module is a critical system component, responsible for converting the incoming AC line voltage to the stable, regulated DC power required by all other modules installed in the RX7i chassis, including the CPU (such as the IC698CMX016), I/O modules, and communications coprocessors. The primary role of the GE Fanuc IC698CPE010 is to ensure a clean, consistent, and reliable power source, which is the foundation for the stable operation of the entire automation control system. Without a properly sized and functioning power supply, even the most advanced CPU cannot operate correctly, making the IC698CPE010 a cornerstone of system integrity.

Designed to power larger configurations, the GE Fanuc IC698CPE010 delivers 50 watts of output power at 5 volts DC. It is typically installed in the left-most slot of the RX7i chassis, where it connects directly to the backplane to distribute power. Its design accounts for the demanding conditions of industrial environments, featuring wide input voltage acceptance, protection against overloads, and filtering to mitigate electrical noise. The reliability of the GE Fanuc IC698CPE010 is paramount for mission-critical applications, as any power disruption can lead to unplanned downtime, production losses, or even safety incidents. Its robust construction ensures continuous operation, contributing directly to maximizing plant uptime.

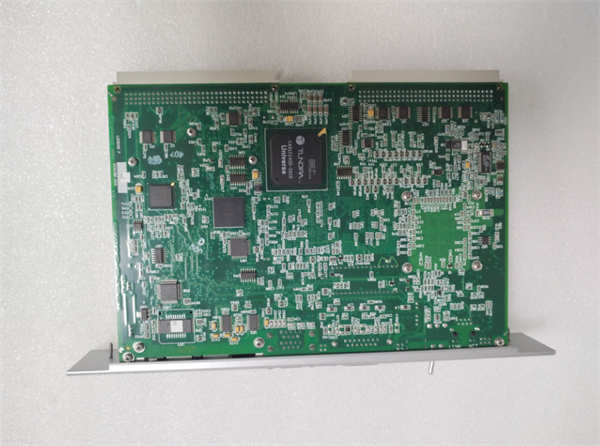

IC698CPE010 GE

Technical Specifications

Main Features and Advantages

The GE Fanuc IC698CPE010 offers several key features that make it a reliable choice for powering RX7i systems. A significant advantage is its wide input voltage range (85-264 VAC), which allows it to be used with standard power sources across the globe without requiring taps or manual switches. This flexibility simplifies inventory and installation for multinational operations. The module also provides excellent immunity to line transients and electrical noise, ensuring that brief fluctuations or interference on the AC line do not disrupt the sensitive electronics of the CPU and I/O modules. This clean power delivery is crucial for preventing spurious faults and maintaining data integrity.

Built-in protection mechanisms are a critical aspect of the IC698CPE010. It features current-limited overload protection, which safeguards the power supply and the backplane from damage in the event of a short circuit or an overload condition caused by a faulty module. The design allows for automatic recovery once the fault condition is cleared, minimizing downtime. The single “Power Good” LED provides immediate visual confirmation of the module’s operational status, enabling quick diagnostics during startup or troubleshooting. The 50-watt output capacity of the GE Fanuc IC698CPE010 is specifically designed to support a fully loaded RX7i chassis, providing ample margin for the combined power requirements of multiple modules, which enhances long-term reliability and system stability.

Application Field

The GE Fanuc IC698CPE010 is deployed wherever a PACSystems RX7i platform is used for high-reliability automation and control. In critical infrastructure applications such as water treatment and wastewater management plants, the IC698CPE010 provides the dependable power needed for continuous process control, ensuring that filtration, chemical dosing, and pump operations run uninterrupted to meet regulatory and public health standards. Its robustness is essential in these 24/7 operations where power quality can vary.

In the energy sector, including power generation plants and oil & gas facilities, the GE Fanuc IC698CPE010 is found within control systems managing turbines, compressors, and safety shutdown systems. The clean and stable power it delivers is vital for the accurate operation of analog I/O modules that monitor critical pressures and temperatures. Furthermore, in large-scale discrete manufacturing, such as automotive assembly lines or metal fabrication facilities, the IC698CPE010 powers the RX7i controllers that coordinate complex machinery and robotics. In these applications, the power supply’s reliability directly impacts production throughput and overall equipment effectiveness (OEE), making it an unsung hero of the automation system.

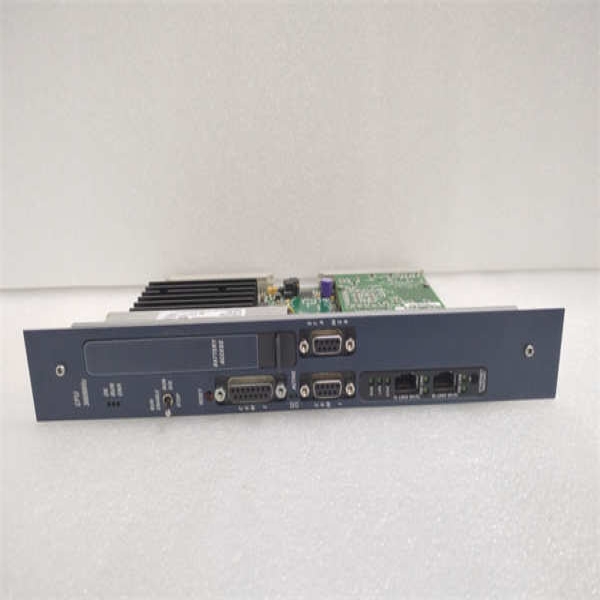

IC698CPE010 GE

Related Products

IC698CHS117: A 17-slot RX7i chassis that is commonly powered by the IC698CPE010 power supply module.

IC698CMX016: The RX7i CPU module that relies on the stable power provided by the IC698CPE010.

IC698PSA100: A 100-watt power supply module for the RX7i platform, offering higher output for systems with even greater power demands.

IC698PSA350: A 350-watt AC power supply, representing a higher-tier option for the most demanding RX7i configurations.

IC698CPE040: A 40-watt power supply module, which is an alternative for smaller RX7i chassis with lower power requirements.

IC690PWR321: A power supply module for the older Series 90-30 PLC, often referenced in upgrade scenarios to the RX7i platform.
