Description

The GE Fanuc IC698CPE030 is a high-performance power supply module integral to the PACSystems RX7i programmable automation controller platform. This module is engineered to deliver reliable, regulated DC power to all components within an RX7i chassis, serving as the foundational power source for the entire control system. The primary function of the GE Fanuc IC698CPE030 is to convert the incoming AC mains voltage to the precise +5VDC power required by the high-speed PCI-based backplane, which in turn powers the CPU, I/O modules, and communication interfaces. With a robust 60-watt output rating, the IC698CPE030 is specifically designed to support larger, more complex RX7i configurations that demand substantial power for extensive I/O networks and sophisticated processing capabilities.

What distinguishes the GE Fanuc IC698CPE030 is its enhanced power capacity compared to lower-wattage models in the same family. This makes it suitable for systems populated with power-hungry modules such as high-density analog and digital I/O, specialized communication coprocessors, and the most advanced CPU models. The module incorporates advanced power conditioning circuitry to ensure exceptional stability and noise immunity, which is critical for maintaining the accuracy of analog signals and the integrity of high-speed data communications. The reliability of the GE Fanuc IC698CPE030 is paramount in mission-critical applications, as it ensures that the sophisticated control strategies executed by the PACSystems RX7i platform are supported by an unwavering power foundation, thereby maximizing system uptime and operational consistency.

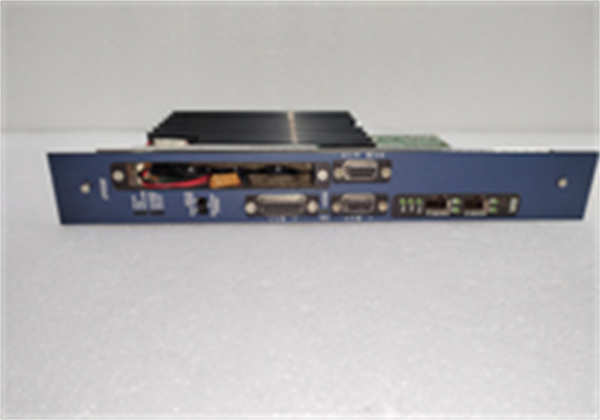

IC698CPE030 GE

Technical Specifications

Main Features and Advantages

The GE Fanuc IC698CPE030 offers a significant advantage through its high 60-watt power output, enabling it to support fully loaded RX7i chassis without operating at the upper limit of its capacity. This headroom is crucial for long-term reliability and thermal management, as the power supply runs cooler and experiences less stress, directly contributing to a longer service life. The unit features a universal input voltage range (85-264 VAC), which provides exceptional flexibility for global deployment and inherent resilience against common AC line fluctuations, ensuring stable operation without the need for external voltage stabilizers in most cases.

Robust built-in protection mechanisms are central to the design of the IC698CPE030. It incorporates current-limiting circuitry that instantly protects the module and the valuable backplane components in the event of a short circuit or a catastrophic failure of another module in the rack. This protection is designed to be non-latching, allowing for automatic recovery once the fault condition is cleared, which minimizes system downtime. The clear and unambiguous “Power Good” LED provides instant visual feedback on the module’s status, facilitating quick diagnostics. The combination of high capacity, robust protection, and wide input tolerance makes the GE Fanuc IC698CPE030 a supremely reliable choice for ensuring the continuous operation of complex and expansive automation systems.

Application Field

The GE Fanuc IC698CPE030 is deployed in large-scale industrial automation applications where the RX7i platform is used to control complex processes with extensive I/O requirements. In major power generation facilities, the IC698CPE030 provides the necessary power for control systems managing turbine sequencing, boiler control, and safety instrumented functions, where system reliability is non-negotiable. Similarly, in oil and gas refineries, this module powers the controllers for complex continuous processes, ensuring that the large number of analog and digital points are managed without interruption.

In extensive material handling systems, such as those found in major distribution centers or airport baggage handling networks, the GE Fanuc IC698CPE030 supports the RX7i controllers that coordinate thousands of I/O points across conveyors, sorters, and scanners. The high power capacity is essential for these data-intensive applications. The module is also ideal for large manufacturing facilities, such as automotive assembly plants or steel mills, where the control system integrates numerous high-density I/O racks, motion controllers, and network modules. In these demanding environments, the IC698CPE030 ensures that the core control system has the clean, stable, and abundant power required for 24/7 operation.

IC698CPE030 GE

Related Products

IC698CPE010: A 50-watt power supply module, offering a lower power alternative for medium-sized configurations.

IC698CPE020: A 30-watt power supply module, suitable for smaller RX7i chassis with modest power needs.

IC698PSA100: A 100-watt AC power supply, representing an even higher-capacity option for the most demanding systems.

IC698CHS117: A 17-slot RX7i chassis, which is an ideal form factor to be powered by the high-capacity IC698CPE030.

IC698CMX016: The high-performance RX7i CPU module that often requires the robust power delivery of the IC698CPE030 in a fully loaded system.

IC698ETM001: An Ethernet Interface Module, which is an example of a communication module that consumes backplane power and would be supported by the IC698CPE030.
