Description

The GE Fanuc IC698CRE030 is a critical component within the PACSystems RX7i platform, specifically functioning as the Redundancy Interface Module (RIM) for the second chassis in a hot-standby redundant system configuration. This module does not operate in isolation; it works in tandem with an identical module in the primary chassis to create a seamless, high-availability control system. The core mission of the GE Fanuc IC698CRE030 is to facilitate continuous, high-speed synchronization between the primary and standby CPU pairs, ensuring that the standby controller maintains an identical copy of the control logic, I/O data, and system state at all times. This architecture is designed for mission-critical applications where any unscheduled downtime would result in significant safety risks, production losses, or environmental consequences.

In a redundant system, the IC698CRE030 module manages the critical communication link between the two separate RX7i chassis. It constantly monitors the health and status of its local CPU and the peer CPU in the other rack. In the event of a fault in the primary system—such as a CPU failure, power supply failure, or backplane communication error—the GE Fanuc IC698CRE030 is instrumental in executing a rapid, automatic, and bumpless transfer of control to the standby system. This failover process happens within milliseconds, ensuring continuous process operation without interruption. The robust design of the GE Fanuc IC698CRE030 is, therefore, not just about adding a backup; it is about creating a fault-tolerant system that delivers an unparalleled level of operational availability and reliability for the most demanding industrial environments.

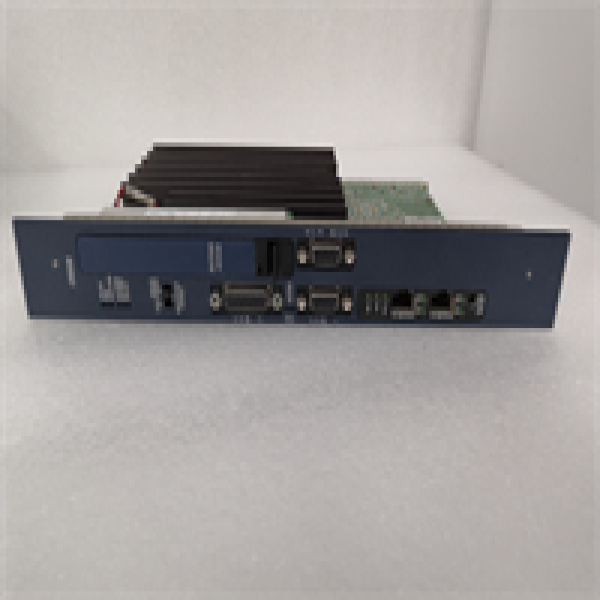

IC698CRE030 GE

Technical Specifications

Main Features and Advantages

The most significant feature of the GE Fanuc IC698CRE030 is its ability to enable a true hot-standby redundancy scheme. The standby system is fully initialized and continuously updated, not merely powered on, allowing for a switchover that is virtually instantaneous and transparent to the ongoing process. The synchronization between the two systems is achieved via a dedicated, high-speed fiber-optic link. This link provides inherent immunity to electromagnetic interference (EMI), ensuring the integrity of the critical synchronization data even in electrically noisy industrial environments. The use of fiber optics also allows the primary and standby chassis to be physically separated by a significant distance, providing flexibility in system layout and enhanced protection against localized physical events.

The IC698CRE030 module provides comprehensive system diagnostics and clear status indication. A series of LEDs on the front panel provide instant visual confirmation of the module’s status, the health of the fiber link, and whether the local chassis is in the Active or Standby role. This simplifies system monitoring and troubleshooting. The automatic failover capability managed by the GE Fanuc IC698CRE030 eliminates the need for operator intervention during a fault, preventing human error and minimizing process disruption. This results in maximum system availability, reduced risk, and protection of valuable assets. The integration of the IC698CRE030 is a proactive investment in system resilience, ensuring business continuity and safeguarding against the high costs associated with unplanned downtime.

Application Field

The GE Fanuc IC698CRE030 is deployed in industries where continuous operation is paramount and system failure is not an option. In power generation, especially for turbine control and grid management systems, redundancy ensured by the IC698CRE030 prevents catastrophic equipment damage and maintains grid stability. In oil and gas applications, such as offshore platform control, pipeline SCADA systems, and refinery safety shutdown systems (ESD), the module ensures that control is never lost, thereby preventing safety incidents and environmental releases.

In critical infrastructure, including large water treatment and distribution networks, the system powered by the IC698CRE030 guarantees that purification and pumping operations continue uninterrupted, ensuring public health and safety. Furthermore, in continuous process industries like chemical manufacturing or pharmaceutical production, a single unplanned shutdown can result in the loss of an entire batch, representing a massive financial loss. The GE Fanuc IC698CRE030 provides the fault tolerance needed to protect these high-value processes. It is also essential in automated material handling systems for major airports or distribution centers, where a control system failure would cause immediate and widespread logistical chaos.

Related Products

IC698CRE020: The redundant CPU module pair that works in conjunction with the IC698CRE030 RIM modules to form a complete redundant system.

IC698CRE010: Another variant of the Redundancy Interface Module, potentially for different chassis sizes or earlier system configurations.

IC698CHS117: A 17-slot RX7i chassis, commonly used as the platform for building redundant systems requiring the IC698CRE030.

IC698CMX016: A standard (non-redundant) RX7i CPU module; understanding its function highlights the value added by the IC698CRE030 for redundancy.

IC698ACC720: A VME bus adapter, which may be used in a chassis with a IC698CRE030 to allow the redundant system to interface with legacy VME-based I/O.

IC698ETM001: An Ethernet Interface Module, which can be used in both chassis to provide network connectivity for the redundant system.
