Description

The IS200DTAIH1ABB is a specialized digital turbine auxiliary interface module manufactured by General Electric for the Mark VI Speedtronic turbine control system. This crucial component serves as a primary interface between the turbine control system and various auxiliary equipment, providing essential monitoring and control capabilities for supporting systems that ensure safe turbine operation. The IS200DTAIH1ABB is specifically engineered to handle discrete signals from devices such as lube oil pumps, hydraulic units, cooling systems, and other critical auxiliary machinery that are vital for turbine start-up, operation, and shutdown sequences.

As an integral part of GE’s comprehensive turbine management platform, the IS200DTAIH1ABB module demonstrates exceptional reliability in processing multiple discrete input signals simultaneously while maintaining the high integrity required for power generation applications. The module interfaces seamlessly with the Mark VI system architecture through the VME backplane, enabling real-time communication with the main turbine controller and other system components. The robust design of the IS200DTAIH1ABB ensures stable performance in the challenging environments typical of power generation facilities, with enhanced protection against electrical noise, voltage transients, and temperature variations that could compromise system reliability.

Technical Specifications

Main Features and Advantages

The IS200DTAIH1ABB offers superior discrete input processing capabilities with comprehensive electrical isolation that ensures signal integrity in electrically noisy environments. Each of the 16 input channels features individual optical isolation, providing complete electrical separation between field devices and the sensitive control system electronics. This isolation strategy prevents ground loops and protects the module from voltage surges and transients that commonly occur in industrial settings. The module supports flexible input types, accepting both dry contact signals and voltage inputs within specified ranges, making it adaptable to various field device configurations without requiring additional signal conditioning equipment.

Advanced Diagnostics and Reliability: A significant advantage of the IS200DTAIH1ABB is its comprehensive diagnostic capability, featuring per-channel status indicators that provide immediate visual feedback on input state and module health. The module incorporates built-in debouncing circuitry that filters contact chatter, ensuring reliable detection of legitimate state changes while ignoring electrical noise. The robust design includes thermal protection and overvoltage safeguards that enhance module longevity in demanding applications. The front-panel removable terminal blocks simplify wiring and maintenance, reducing downtime during installation or replacement procedures. These features combine to make the IS200DTAIH1ABB an exceptionally reliable choice for critical auxiliary system monitoring where accurate status information is essential for safe turbine operation.

Application Field

The IS200DTAIH1ABB is primarily deployed in power generation facilities utilizing GE Frame series gas turbines and steam turbines, where it monitors critical auxiliary systems essential for safe turbine operation. The module interfaces with lube oil system components, tracking pump status, pressure switches, and temperature alarms that protect turbine bearings from damage. In hydraulic systems, the IS200DTAIH1ABB monitors accumulator pressures, valve positions, and pump status to ensure proper actuation of control valves and protective devices. The module also plays a vital role in cooling water systems, tracking pump operation, flow switches, and temperature sensors that prevent overheating of critical turbine components.

Beyond traditional power generation, the IS200DTAIH1ABB finds application in mechanical drive turbines used in pipeline compression, refinery operations, and industrial processes where continuous operation is essential. The module’s robust design makes it suitable for offshore platforms and remote installations where environmental conditions may be particularly challenging. In combined cycle power plants, the IS200DTAIH1ABB monitors auxiliary systems for both gas and steam turbines, providing comprehensive status information to the coordinated control system. The module’s reliable performance ensures that operators have accurate real-time information about auxiliary equipment status, enabling prompt response to abnormal conditions and preventing equipment damage through early detection of developing problems.

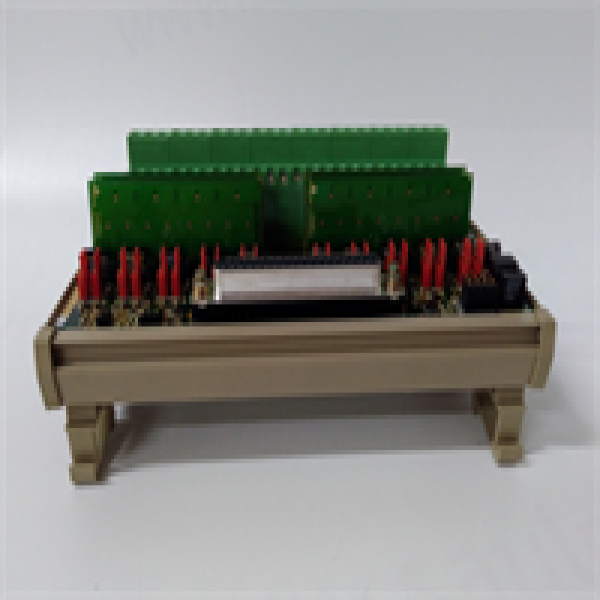

IS200DTAIH1ABB GE
