Description

The IS200EGDMH1ADF is a specialized Excitation Gate Drive Module developed by General Electric as a critical component within the Mark VI Speedtronic turbine control system. This advanced module serves as the essential interface between the turbine control processor and the excitation system, specifically designed to manage and control the firing of thyristors in the generator field power circuit. The primary function of the IS200EGDMH1ADF is to provide precisely timed gate pulses to the excitation system’s power components, ensuring accurate control of generator field current and maintaining stable terminal voltage under varying load conditions. As part of GE’s comprehensive turbine-generator control strategy, this module plays a vital role in maintaining grid synchronization and power quality while protecting the generator from electrical faults.

Operating within the sophisticated architecture of the Mark VI system, the IS200EGDMH1ADF demonstrates exceptional precision in controlling generator excitation parameters. The module receives control signals from the main turbine controller and converts them into precisely synchronized gate drive signals that regulate the output of the excitation power supply. The robust design of the IS200EGDMH1ADF ensures reliable performance in the electrically noisy environment of power generation facilities, with enhanced immunity to electromagnetic interference and voltage transients that could affect excitation control accuracy. The module incorporates advanced monitoring and protection features that safeguard both the excitation system and the generator from abnormal operating conditions, contributing significantly to overall system reliability and availability.

Technical Specifications

Main Features and Advantages

The IS200EGDMH1ADF offers sophisticated excitation control capabilities with its six independent gate drive channels that provide precise thyristor firing control for three-phase bridge configurations. The module features advanced synchronization circuitry that maintains precise phase relationship with the generator output, ensuring optimal firing angles under all operating conditions. Each gate drive output provides isolated, high-current pulses capable of triggering large thyristors directly, eliminating the need for external amplification stages. The IS200EGDMH1ADF incorporates intelligent pulse timing algorithms that compensate for system variations, maintaining consistent excitation control during load changes and transient conditions. The module’s flexible pulse width adjustment allows optimization for different excitation system configurations and generator characteristics.

Advanced Protection and Diagnostics: A significant advantage of the IS200EGDMH1ADF is its comprehensive protection suite that monitors excitation system health and prevents damage to critical components. The module continuously monitors thyristor gate circuit integrity, detecting open circuits, short circuits, and marginal triggering conditions that could lead to excitation system failure. Built-in overtemperature protection ensures safe operation during demanding conditions, while synchronization loss detection prevents improper firing sequences that could damage the excitation system. The IS200EGDMH1ADF also features extensive diagnostic capabilities that provide detailed status information to the main controller, enabling predictive maintenance and reducing troubleshooting time. These protection features combine with the module’s robust design to ensure reliable excitation control that maintains generator stability and protects valuable power generation assets.

Application Field

The IS200EGDMH1ADF is primarily deployed in power generation facilities utilizing GE’s heavy-duty gas turbines, steam turbines, and hydroelectric generators where precise excitation control is critical for stable power delivery. The module serves as the key interface in static excitation systems for large synchronous generators, controlling field current to maintain terminal voltage within strict tolerances required for grid code compliance. In combined cycle power plants, the IS200EGDMH1ADF ensures optimal excitation control for generators operating in both base load and frequency response modes, adapting to changing grid demands while maintaining power quality. The module’s precision control capabilities are particularly valuable in applications requiring var/power factor control, where exact excitation management is essential for efficient power delivery.

The robust design of the IS200EGDMH1ADF makes it suitable for demanding applications including industrial power generation, offshore platforms, and remote mining operations where reliable excitation control is essential for continuous operation. In peaking power plants, the module’s fast response characteristics enable rapid field current adjustments during sudden load changes, maintaining grid stability during peak demand periods. The IS200EGDMH1ADF also finds application in synchronous condenser operations, where it controls excitation to maintain vars flow for voltage support on transmission systems. The module’s reliability and precision make it essential for any application requiring exact generator control, from large utility-scale power plants to critical industrial facilities where power quality and system stability are paramount concerns.

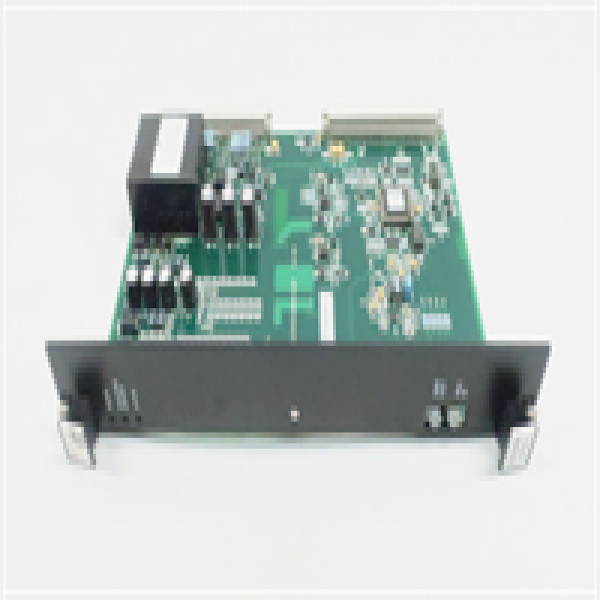

IS200EGDMH1ADF GE
