Description

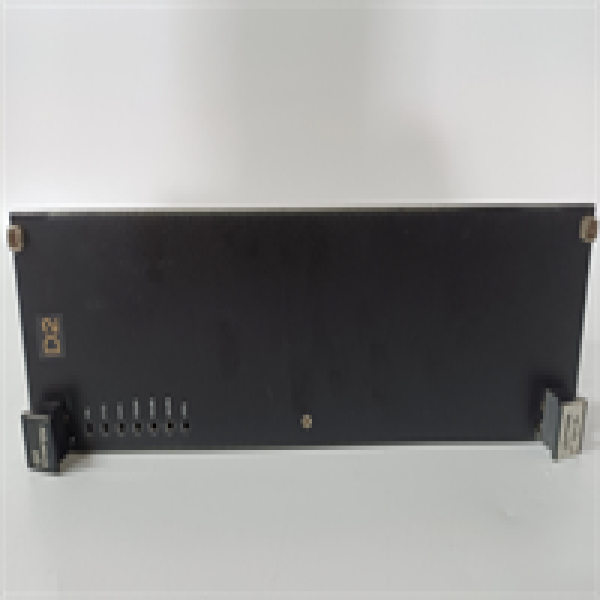

The IS200EPSMG1AED is a high-performance System Power Supply Module designed by General Electric as a critical power distribution component within the Mark VI Speedtronic turbine control system. This essential module serves as the primary power conversion and distribution unit, responsible for converting incoming power to the precise voltage levels required by various system components in the turbine control rack. The primary function of the IS200EPSMG1AED is to provide clean, stable, and reliable power to all modules in the VME chassis, ensuring proper operation of processors, I/O modules, communication cards, and other critical control components. As the foundational power element in GE’s sophisticated control architecture, this module plays a vital role in maintaining system stability and preventing power-related disruptions that could impact turbine operation.

Engineered for maximum reliability in demanding power generation environments, the IS200EPSMG1AED incorporates advanced power conversion technology with comprehensive protection features. The module accepts a wide range of input voltages and converts them to the multiple DC voltage levels required by the Mark VI system, including +5VDC for digital logic, ±15VDC for analog circuits, and other specialized voltages for specific module requirements. The robust design of the IS200EPSMG1AED ensures stable operation through voltage fluctuations, electrical noise, and temperature variations commonly encountered in turbine control applications. With its sophisticated monitoring capabilities and redundant design features, this power supply module provides the critical power infrastructure that enables the entire turbine control system to perform with the reliability and precision required for modern power generation.

IS200EPSMG1AED GE

Technical Specifications

Main Features and Advantages

The IS200EPSMG1AED offers superior power management capabilities with its wide input voltage range that accommodates various international power standards and provides tolerance to voltage fluctuations. The module features advanced switching technology that ensures high efficiency across the entire load range, minimizing heat generation and improving overall system reliability. Each output voltage is independently regulated and isolated, preventing noise propagation between different circuit types and ensuring clean power to sensitive analog and digital components. The IS200EPSMG1AED incorporates comprehensive protection circuitry including overvoltage protection, overcurrent limiting, and thermal shutdown that safeguard both the power supply itself and the connected modules from electrical faults. The module’s intelligent fan cooling system automatically adjusts speed based on temperature and load conditions, ensuring optimal thermal management while minimizing acoustic noise.

Enhanced Monitoring and Redundancy Features: A significant advantage of the IS200EPSMG1AED is its sophisticated monitoring system that provides real-time status information for all power parameters. The module continuously monitors output voltages, currents, temperature, and overall health status, communicating this information to the system controller for proactive maintenance planning. The power supply features power-fail detection circuitry that provides early warning of impending input power loss, allowing the control system to initiate orderly shutdown procedures. For critical applications, the IS200EPSMG1AED supports parallel operation and N+1 redundancy configurations when used with appropriate external circuitry, ensuring continuous system operation even during power supply maintenance or failure. The module’s hot-swap capability, when properly implemented with external hold-up circuits, allows for replacement without system shutdown, significantly improving overall system availability. These advanced features make the IS200EPSMG1AED an exceptionally reliable power solution for critical turbine control applications.

Application Field

The IS200EPSMG1AED is deployed across the entire spectrum of GE turbine applications, from heavy-duty gas turbines in simple cycle service to complex combined cycle power plants integrating multiple turbines and balance-of-plant systems. In Frame 7FA and 9FA gas turbine installations, the module provides reliable power to control systems managing fuel distribution, combustion monitoring, exhaust temperature control, and emissions compliance. For steam turbine applications, the IS200EPSMG1AED ensures stable operation of control modules governing steam admission valves, extraction controls, and turbine protection systems. The power supply’s robust design makes it particularly valuable in harsh environments such as offshore platforms and industrial cogeneration facilities where power quality may be variable and environmental conditions challenging.

The module’s comprehensive power protection features make it essential for critical infrastructure applications where unexpected shutdowns could have significant consequences. In black start and grid support applications, the IS200EPSMG1AED maintains control system integrity during system disturbances and recovery operations. The power supply’s wide input voltage range accommodates various installation scenarios, from utility-scale power plants with stable power sources to remote installations with generator-based or renewable power systems. For modern flexible operation requirements including frequent starts and load changes, the IS200EPSMG1AED provides the stable power foundation that enables precise control and monitoring throughout rapidly changing operating conditions. The module’s reliability and diagnostic capabilities also make it suitable for retrofitting older turbine control systems, where it can significantly improve overall system stability and reduce maintenance requirements.
