Description

The REXROTH R901325866, R900775346, and R901273425A represent a family of high-performance hydraulic components from Bosch Rexroth, a global leader in drive and control technologies. These parts are integral to constructing precise and reliable hydraulic control systems across a vast range of industrial and mobile applications. As part of Rexroth’s extensive modular valve system, components like the R901325866 proportional valve are designed for exacting control over flow and pressure, enabling sophisticated motion sequences in machinery. The R900775346 is typically a screw-in cartridge valve, often acting as a critical pilot-operated check valve or pressure control element that is installed into a manifold block, providing the foundational logic for hydraulic circuits.

The REXROTH R901273425A is commonly a custom or semi-custom manifold block (control block) that serves as the central platform onto which other cartridge valves, such as the R900775346, are installed. This integrated approach allows system designers to create complex hydraulic circuits in a compact, leak-resistant, and highly efficient package. Together, these models exemplify the Rexroth philosophy of modularity, reliability, and performance. By utilizing these genuine components, engineers and maintenance teams ensure that their hydraulic systems—from massive press lines to agile mobile equipment—operate with the precision, durability, and efficiency that Rexroth is renowned for. The interoperability between the R901325866, R900775346, and R901273425A underscores the power of a well-designed modular system.

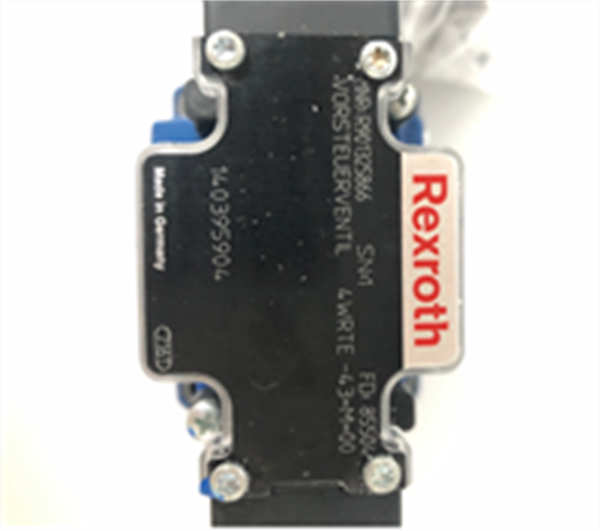

R901325866 R900775346 R901273425A REXROTH

Technical Specifications

Main Features and Advantages

Precision and Control: The REXROTH R901325866, as a proportional valve, offers exceptional control over hydraulic flow or pressure, allowing for smooth and accurate control of actuator speed and force. This translates to higher product quality, better process repeatability, and reduced mechanical stress on machinery. The precise metering capability of a valve like the R901325866 is essential for applications requiring nuanced motion profiles.

Modularity and System Integration: A core advantage of this product family is its modular design. Cartridge valves like the R900775346 are building blocks that can be combined in a manifold block like the REXROTH R901273425A to create a custom, integrated circuit. This eliminates numerous external pipes and fittings, drastically reducing potential leak points, saving space, and shortening assembly time. This modularity also simplifies troubleshooting and future system modifications.

Robustness and Reliability: Engineered for the most demanding environments, these components are manufactured to the highest quality standards. They are designed to withstand high pressure spikes, contamination, and continuous operation, ensuring a long service life and minimizing unplanned downtime. Using the genuine R900775346 cartridge or the R901273425A manifold block guarantees perfect material compatibility, precise machining tolerances, and optimal performance as intended by the original system design.

Application Field

The REXROTH R901325866, R900775346, and R901273425A are deployed in a multitude of industries where robust and intelligent hydraulic power is required. In mobile hydraulics, they are found in the control systems of excavators, cranes, and agricultural machinery, where the R901325866 provides precise control for tool movement and the cartridge valves within blocks like the R901273425A manage functions like boom locking and load holding.

In industrial manufacturing, these components are the workhorses of injection molding machines, controlling the intricate sequence of mold closing, injection, and ejection with high repeatability. They are equally critical in metal forming presses, stamping lines, and die-casting machines, where high forces and reliable cycle control are paramount. The compact nature of the manifold block system, exemplified by the REXROTH R901273425A, makes it ideal for applications with space constraints, such as within the confines of a machine tool or on a complex material handling system. Any application demanding reliable, compact, and high-performance hydraulic control is a prime candidate for this family of Rexroth products.

Related Products

REXROTH R900500269: A common pilot-operated check valve cartridge, functionally similar to some versions of the R900775346.

REXROTH R900508118: A pressure relief valve cartridge, often used in conjunction with other cartridges in a manifold.

REXROTH 0811408076: A complete directional control valve assembly that may utilize these cartridge components internally.

REXROTH R901200167: A different model of proportional directional valve, offering an alternative to the R901325866.

REXROTH R901171470: A manifold blank used for creating custom control blocks, similar in concept to the R901273425A.

REXROTH R900413071: A seal kit for cartridge valves, essential for maintenance of components like the R900775346.

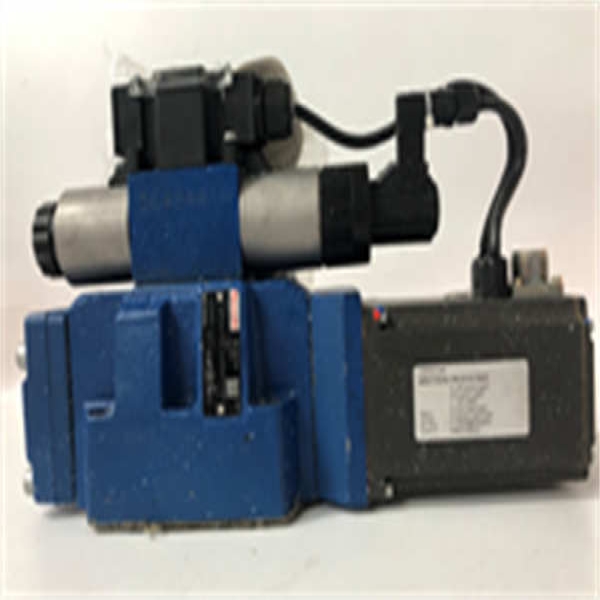

R901325866 R900775346 R901273425A REXROTH

Installation and Maintenance

Pre-installation preparation: Before installing any component like the R900775346 cartridge or the R901325866 valve, it is critical to ensure the hydraulic system is completely depressurized. Meticulously clean the work area and all components to prevent contamination. Verify the manifold block R901273425A for any damage to the sealing surfaces or threaded cavities. Use new seals and O-rings as specified by Rexroth, and apply the recommended lubricant prior to assembly.

Maintenance recommendations: Regular maintenance is key to the longevity of the R901325866, R900775346, and R901273425A. Monitor the hydraulic fluid condition through regular oil analysis and maintain strict filtration levels to prevent wear on the sensitive control edges of these components. Periodically check for external leaks and tighten connections to the R901273425A manifold block as necessary. If a valve like the R901325866 shows erratic behavior, inspect the electrical connector and solenoid. Always use genuine Rexroth seal kits when servicing the R900775346 cartridge to ensure a perfect fit and reliable sealing performance.
