Description

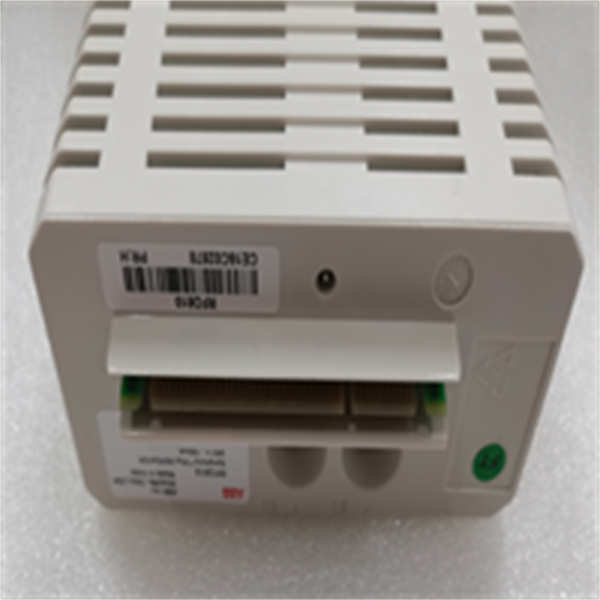

The ABB RFO810 is a dedicated, high-performance System Power Supply Module designed specifically for the ABB Freelance Distributed Control System (DCS) and its AC 700F series of controllers. It serves as the critical “power heart” of the control station, converting the incoming mains or DC supply voltage to the stable, clean, and precisely regulated low-voltage DC power required by the controller’s CPU, I/O modules, and communication interfaces. The primary role of the ABB RFO810 is to ensure an uninterrupted and high-quality power feed, which is a fundamental prerequisite for the reliable and deterministic operation of the entire control loop. Without a stable power foundation provided by modules like the ABB RFO810, even the most advanced control algorithms cannot function correctly, making this component a cornerstone of system integrity.

This module is engineered for seamless integration into the Freelance rack or mounting base, featuring a compact and robust design that meets rigorous industrial standards. The ABB RFO810 is more than just a voltage converter; it is an intelligent component of the DCS. It typically includes monitoring circuitry that can report its status (such as “Power OK”) to the controller, enabling system-wide diagnostics and early warning of potential power-related issues. By selecting the genuine ABB RFO810, system integrators and end-users guarantee perfect electrical and mechanical compatibility, ensuring optimal performance, enhanced system availability, and protection for the valuable controller hardware it supports. Its design prioritizes efficiency, low heat generation, and resilience against voltage fluctuations commonly found in industrial environments.

RFO810 ABB

Technical Specifications

Main Features and Advantages

The ABB RFO810 is distinguished by its exceptional reliability and robust design for industrial duty. It features a wide input voltage range, allowing it to tolerate significant fluctuations in the supply voltage without affecting the performance of the connected controller and I/O modules. This inherent resilience is crucial in plants where voltage sags and surges are common. The module incorporates comprehensive protection mechanisms, including automatic shutdown in case of a short-circuit on its outputs and overload protection, which safeguard both the power supply itself and the expensive controller hardware from damage.

Seamless Integration and Diagnostic Capabilities: A key advantage of the ABB RFO810 is its plug-and-play design within the ABB Freelance ecosystem. It is mechanically and electrically designed to fit perfectly into the designated slot of the controller base unit, eliminating any guesswork during installation. Furthermore, the ABB RFO810 provides vital diagnostic signals to the AC 700F controller. The controller can monitor the status of the power supply, and a “Power OK” signal can be used in the application program or can be read by the engineering station, providing early warning of potential power issues before they lead to a system shutdown. This integration simplifies system design, enhances diagnostic coverage, and contributes to higher overall plant availability by allowing for proactive maintenance. The compact and efficient design of the ABB RFO810 also helps in saving control panel space and reducing heat buildup within the enclosure.

Application Field

The ABB RFO810 finds its primary application wherever the ABB Freelance DCS or AC 700F controllers are deployed. This includes a vast range of industries that require robust and medium-scale process control. In the water and wastewater treatment sector, the ABB RFO810 provides reliable power for controllers managing filtration, chemical dosing, and pump stations, where uninterrupted operation is essential for public health and environmental compliance. In building automation and HVAC systems for large facilities, it ensures that the control of chillers, air handling units, and energy management systems remains stable and continuous.

Within the food and beverage and pharmaceutical industries, the ABB RFO810 is used in control systems for batching, mixing, and packaging processes. Its reliability is key to maintaining recipe consistency and production hygiene. It is also extensively applied in manufacturing and material handling, controlling assembly lines, conveyor systems, and specialized machinery. In the renewable energy sector, particularly in biomass and biogas plants, the ABB RFO810 forms part of the control core that manages the complex fermentation and gas processing workflows. In all these applications, the role of the ABB RFO810 is fundamental: to deliver clean, stable power that enables the AC 700F controller to execute its logic flawlessly, ensuring process efficiency, product quality, and operational safety.

Related Products

ABB AC 700F Controller CPU: The main processor module that is powered by the RFO810.

ABB RFO811: A potential variant or successor model with different power ratings or features.

ABB CI701: A communication interface module that connects to the same base unit powered by the RFO810.

ABB DI810 / AI810: Examples of digital and analog input modules that rely on the power from the RFO810.

ABB DO810 / AO810: Examples of digital and analog output modules powered by the system supply.

ABB Freelance Base Unit: The physical rack that houses the RFO810, CPU, and I/O modules.

ABB S800 I/O: A remote I/O system that can be networked with an AC 700F controller for distributed control.

RFO810 ABB

Installation and Maintenance

Pre-installation preparation: Before installing the ABB RFO810, ensure that the system is completely de-energized. Verify that the input power source (typically 24V DC) is within the specified voltage range and is correctly fused according to ABB’s guidelines. Confirm that the base unit is compatible and that the slot for the power supply module is clean and free of obstruction. The wiring for the input power should be of the correct gauge and securely connected to the terminal points, respecting the polarity to prevent damage to the ABB RFO810.

Maintenance recommendations: The ABB RFO810 is designed for minimal maintenance. It is a solid-state device with no user-serviceable parts. Regular maintenance should consist of visual inspections during planned shutdowns to check for any signs of overheating, corrosion, or loose connections. The status of the ABB RFO810 should be monitored via the Freelance control system’s diagnostic functions, which will report any power supply faults. Ensuring adequate ventilation around the controller cabinet is important to prevent excessive operating temperatures that could affect the long-term reliability of the ABB RFO810. If a module fails, it must be replaced as a unit by a qualified technician with an identical, genuine ABB part.
