Description

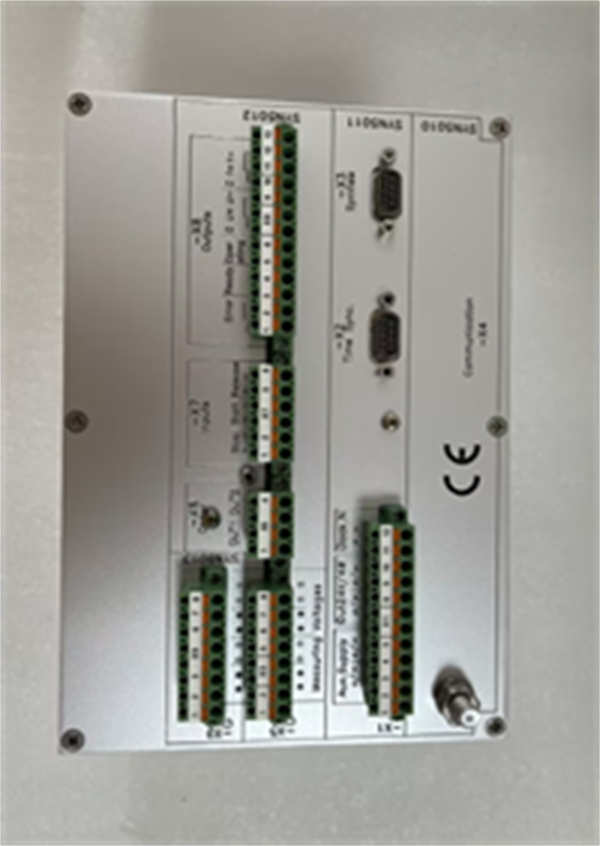

The ABB SYN5202-0271 is a highly specialized and critical control module designed for ABB’s UNITROL® series of excitation systems, which are responsible for controlling the magnetic field of synchronous generators. This specific board plays a central role in the automatic voltage regulator (AVR) function, meticulously managing the generator’s terminal voltage and reactive power output to ensure stable and efficient operation, whether the generator is connected to an isolated load or synchronized with a large power grid. The ABB SYN5202-0271 module processes real-time data from generator terminals and the power system, executing complex control algorithms to precisely adjust the field current in the generator’s rotor. This precise control is fundamental for maintaining power quality, supporting grid voltage, and ensuring the generator remains stable during network disturbances.

As an integral component within the UNITROL® platform, the SYN5202-0271 is engineered for maximum reliability and seamless integration with other system components like power rectifiers and system interfaces. Its value proposition lies in its direct impact on the availability and performance of the generator. A failure of the ABB SYN5202-0271 can lead to a loss of voltage control, potentially forcing a generator offline and causing significant production and financial losses. Therefore, this module is a vital spare part for power utilities and industrial plants, ensuring the continuous, reliable, and safe operation of their power generation assets. The ABB SYN5202-0271 embodies the sophisticated technology required to keep the lights on and the grid secure.

SYN5202-0271 ABB

Technical Specifications

Main Features and Advantages

Precision Control and Stability: The core advantage of the ABB SYN5202-0271 is its ability to provide exceptionally precise and stable control of the generator’s excitation. It utilizes advanced control algorithms, including PID regulators and power system stabilizer (PSS) functions, to dampen power oscillations and respond instantaneously to changes in load or grid conditions. This ensures that the generator maintains a constant voltage, supports the grid during faults, and operates within its safe operating area, all under the vigilant management of the SYN5202-0271.

High Reliability and Redundancy Support: Designed for critical power generation applications, the ABB SYN5202-0271 is built with industrial-grade components and undergoes rigorous testing. In many UNITROL® system configurations, a redundant SYN5202-0271 module can be installed. This allows for automatic, bumpless transfer to the backup module in the event of a fault in the primary unit, guaranteeing uninterrupted excitation control and maximizing generator availability. This built-in redundancy is a key feature for mission-critical power generation.

Comprehensive Monitoring and Diagnostics: The ABB SYN5202-0271 is not just a control device; it is also a intelligent monitoring unit. It continuously performs self-diagnostics and monitors the health of the excitation system. Status information, alarm conditions, and operational data are communicated to the system’s HMI or plant DCS. This allows operators and maintenance personnel to have full visibility into the performance of the ABB SYN5202-0271 and the overall excitation system, enabling predictive maintenance and rapid troubleshooting.

Application Field

The ABB SYN5202-0271 is exclusively applied in the control and regulation of synchronous generators across the entire power generation spectrum. In large-scale thermal power plants, it is used to control the excitation of the main generator, ensuring efficient power delivery to the grid and stable operation during load changes. In hydroelectric power plants, the ABB SYN5202-0271 manages the excitation for hydro generators, providing fast response to frequency changes and contributing to grid stability.

Beyond utility-scale power, this module is also critical in industrial power generation. It is found in cogeneration plants within chemical, paper, and manufacturing facilities, where it controls generators that produce both process steam and electricity. The ABB SYN5202-0271 is also essential for emergency and standby power systems in critical infrastructure like hospitals and data centers, ensuring that backup generators can pick up the load smoothly and maintain stable voltage when the main grid fails. Any application involving a synchronous generator that requires precise voltage and reactive power control is a domain for the ABB SYN5202-0271.

SYN5202-0271 ABB

Related Products

ABB UNITROL® 1000/2000/5000/6000: The main excitation system families that utilize the SYN5202-0271 and similar control boards.

ABB SYN5202-xxxx (other suffixes): Other variants or firmware versions of the same control board platform with different functionalities.

ABB RECxxx: Thyristor power rectifier units that are controlled by the firing pulses from the SYN5202-0271.

ABB SYSxxx: System interface modules or power supplies within the same UNITROL® cabinet that interact with the ABB SYN5202-0271.

ABB DCS 500/600: ABB’s industrial drive systems, which represent a different product line but share some technological principles with excitation systems.
