Description

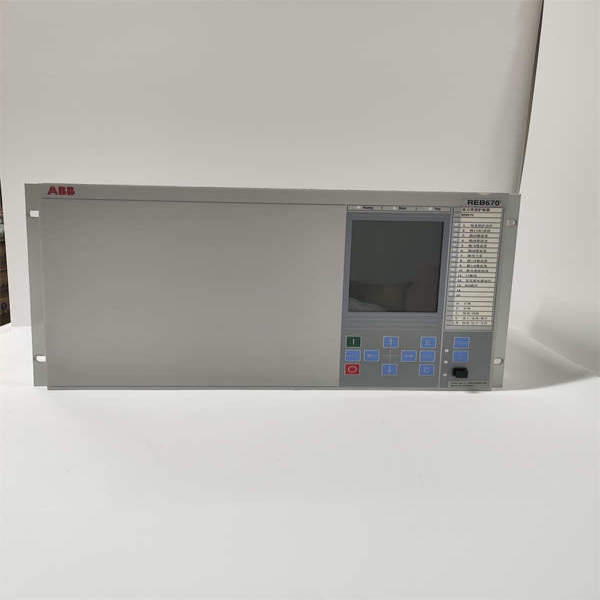

The ABB REB670 1MRK002820-AC is a sophisticated numerical protection relay belonging to ABB’s renowned RELION 670 series, specifically designed for comprehensive line differential protection in modern power systems. This advanced protection terminal represents the cutting edge of power system protection technology, incorporating intelligent algorithms and robust communication capabilities to ensure the reliability and security of electrical networks. The primary function of the ABB REB670 1MRK002820-AC is to provide high-speed, selective fault detection and clearance for transmission and sub-transmission lines, utilizing current differential protection as its core principle while integrating multiple additional protection functions in a single device. This integrated approach makes the ABB REB670 1MRK002820-AC an ideal solution for complex protection schemes where space optimization and functional completeness are critical requirements.

As part of ABB’s RELION product family, the ABB REB670 1MRK002820-AC embodies the latest advancements in digital protection technology, offering exceptional performance for utility and industrial power systems. The device supports sophisticated communication protocols including IEC 61850 for seamless integration into digital substation automation systems, along with traditional protocols to ensure compatibility with existing infrastructure. The value proposition of the ABB REB670 1MRK002820-AC extends beyond basic protection – it provides comprehensive condition monitoring, extensive event recording, and advanced automation capabilities that enable predictive maintenance and enhance overall system visibility. Its rugged design ensures reliable operation in demanding substation environments, while the user-friendly interface simplifies configuration, operation, and maintenance, establishing the ABB REB670 1MRK002820-AC as a trusted solution for protecting critical power infrastructure worldwide.

Technical Specifications

Main Features and Advantages

Comprehensive Protection Scheme: The ABB REB670 1MRK002820-AC offers a complete protection package with current differential protection as its primary function, providing absolute selectivity and high-speed operation for transmission lines. This advanced protection terminal incorporates multiple backup protection functions including distance protection zones with power swing detection, four-stage phase and ground overcurrent protection, and breaker failure protection. The sophisticated algorithm of the ABB REB670 1MRK002820-AC ensures reliable operation during system disturbances while maintaining stability during external faults, making it exceptionally suitable for complex network configurations and evolving grid conditions.

Advanced Communication Capabilities: This protection relay features extensive communication options that facilitate seamless integration into modern substation automation systems. The ABB REB670 1MRK002820-AC supports IEC 61850 edition 2 for process bus and station bus communication, enabling efficient engineering and interoperability in digital substations. Its dual Ethernet ports support redundant network configurations, while the integrated optical communication channel provides secure, high-speed data exchange for current differential protection between line terminals. The communication flexibility of the ABB REB670 1MRK002820-AC ensures future-proof operation and simplifies system expansion or modification.

Enhanced Monitoring and Analysis: The ABB REB670 1MRK002820-AC incorporates comprehensive monitoring and recording capabilities that provide valuable insights into system performance and relay operation. It features high-resolution disturbance recording with extended memory capacity, detailed event logging with time synchronization, and continuous measurement of power system parameters. The advanced monitoring functions of the ABB REB670 1MRK002820-AC support condition-based maintenance strategies and facilitate thorough post-event analysis, helping operators optimize system performance and improve reliability.

User-Friendly Operation and Maintenance: Designed for efficiency throughout its lifecycle, the ABB REB670 1MRK002820-AC features intuitive human-machine interface with a large graphical display and navigation keys for local operation. The relay supports ABB’s PCM600 configuration tool for simplified setting management, and its modular design facilitates easy maintenance and potential future upgrades. The user-centric design of the ABB REB670 1MRK002820-AC reduces engineering time, minimizes the risk of configuration errors, and streamlines routine testing and maintenance procedures.

Application Field

The ABB REB670 1MRK002820-AC finds its primary application in transmission and sub-transmission networks where reliable line protection is critical for system stability and power supply continuity. In utility transmission systems, this protection terminal is deployed for protecting overhead lines and underground cables in networks ranging from 110kV to 400kV, where its current differential protection capability provides absolute selectivity for complex mesh systems. The ABB REB670 1MRK002820-AC is particularly valuable in applications requiring communication-based protection schemes, including pilot-wire replacement and fiber-optic based differential protection, making it ideal for modernizing existing infrastructure while maintaining or enhancing protection performance.

In industrial power systems, the ABB REB670 1MRK002820-AC provides main protection for incoming feeders and interconnections in large industrial plants, steel mills, and petrochemical facilities. Its comprehensive protection functions and communication capabilities ensure reliable operation of critical power supply circuits, while the device’s robust design withstands the challenging electromagnetic environment typical of industrial installations. The flexibility of the ABB REB670 1MRK002820-AC allows it to be adapted to various system configurations, making it suitable for both simple radial networks and complex industrial power distribution systems with multiple infeeds.

The ABB REB670 1MRK002820-AC also plays a crucial role in renewable energy applications, particularly in protecting collector lines in wind and solar farms and interconnection lines to the main grid. In railway electrification systems, this protection terminal ensures reliable operation of traction power supply networks, while in mining and metals industries, it provides comprehensive protection for critical supply circuits. The device’s adaptability and advanced features make the ABB REB670 1MRK002820-AC a versatile solution across the energy value chain, from generation to transmission and industrial power distribution.

Related Products

ABB REF615: Feeder protection relay for distribution applications

ABB RET670: Transformer protection relay for power transformer applications

ABB REG670: Generator protection relay for power generation units

ABB REC670: Capacitor bank protection relay for reactive power compensation

ABB RES670: Numerical busbar protection system

ABB RED670: Line differential protection for lower voltage applications

ABB REX640: Universal protection relay platform for various applications

ABB PCM600: Protection and Control IED Manager for configuration

Installation and Maintenance

Pre-installation preparation: Before installing the ABB REB670 1MRK002820-AC, carefully review the product documentation and verify compatibility with the specific application requirements. Ensure the panel cutout dimensions meet specifications and confirm adequate clearance for wiring and ventilation. For the ABB REB670 1MRK002820-AC, prepare the necessary communication infrastructure including fiber optic cables for differential protection channels and Ethernet cables for station communication. Verify the availability of appropriate configuration tools and ensure all required accessories including mounting hardware and communication modules are available before commencing installation.

Maintenance recommendations: Regular maintenance for the ABB REB670 1MRK002820-AC should include periodic inspection of the front panel indicators and display readings to verify normal operation. The device’s self-supervision functions should be monitored through available communication interfaces or local display. For the ABB REB670 1MRK002820-AC, maintain accurate records of setting changes and firmware versions, and perform regular backups of configuration parameters. Ensure time synchronization is maintained for accurate event recording, and periodically verify the integrity of communication links, particularly for current differential protection channels. Regular functional testing according to the maintenance schedule and manufacturer’s recommendations is essential to maintain protection system reliability.
