Description

The ABB RET670 1MRK002816-AB is a highly advanced numerical transformer protection relay belonging to ABB’s renowned RELION 670 series, specifically engineered to provide comprehensive protection for power transformers in utility and industrial power systems. This sophisticated protection terminal represents the pinnacle of transformer protection technology, incorporating intelligent algorithms and multi-functional capabilities to ensure the reliability and security of critical power infrastructure. The primary function of the ABB RET670 1MRK002816-AB is to provide high-speed, selective fault detection and clearance for power transformers, utilizing differential protection as its core principle while integrating multiple additional protection functions in a single, compact device. This integrated approach makes the ABB RET670 1MRK002816-AB an ideal solution for complex protection schemes where space optimization and functional completeness are critical requirements for transformer applications ranging from distribution to large power transformers.

As part of ABB’s RELION product family, the ABB RET670 1MRK002816-AB embodies the latest advancements in digital protection technology, offering exceptional performance for transformer protection applications. The device supports sophisticated communication protocols including IEC 61850 for seamless integration into digital substation automation systems, along with traditional protocols to ensure compatibility with existing infrastructure. The value proposition of the ABB RET670 1MRK002816-AB extends beyond basic protection – it provides comprehensive condition monitoring, extensive event recording, and advanced automation capabilities that enable predictive maintenance and enhance overall system visibility for transformer management. Its rugged design ensures reliable operation in demanding substation environments, while the user-friendly interface simplifies configuration, operation, and maintenance, establishing the ABB RET670 1MRK002816-AB as a trusted solution for protecting critical power transformers in electrical networks worldwide.

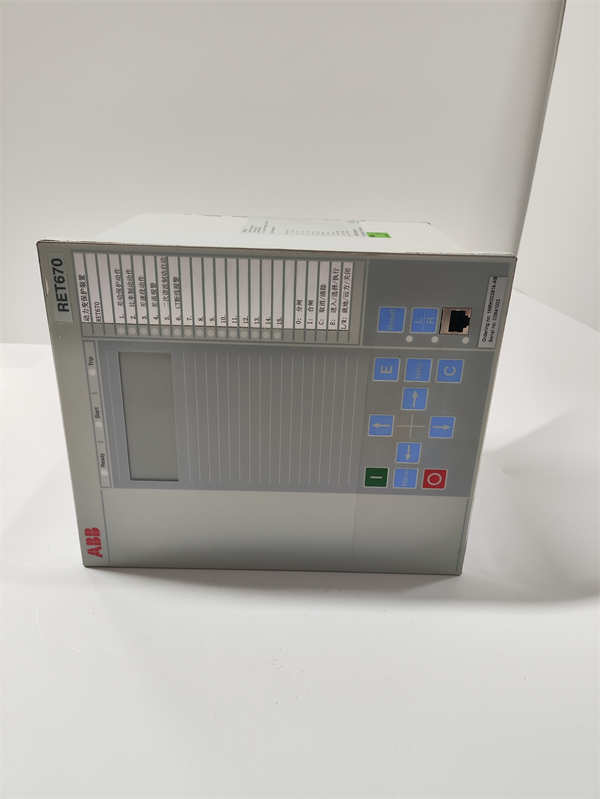

ABB RET670 1MRK002816-AB

Technical Specifications

Main Features and Advantages

Comprehensive Transformer Protection: The ABB RET670 1MRK002816-AB offers a complete protection package with current differential protection as its primary function, providing sensitive and fast protection for transformer internal faults. This advanced protection terminal incorporates multiple backup protection functions including restricted earth fault protection, overcurrent protection with voltage control, thermal overload protection, and comprehensive voltage protection. The sophisticated algorithm of the ABB RET670 1MRK002816-AB ensures reliable operation during transformer energization and system disturbances while maintaining stability during external faults, making it exceptionally suitable for complex transformer applications in evolving grid conditions.

Advanced Differential Protection Scheme: A key feature of the ABB RET670 1MRK002816-AB is its advanced transformer differential protection with multiple harmonic restraint capabilities. The device includes second and fifth harmonic blocking for magnetizing inrush conditions, as well as cross-blocking logic to ensure stability during external faults with CT saturation. The differential protection of the ABB RET670 1MRK002816-AB supports various transformer vector groups and provides automatic compensation for phase shift and ratio mismatch, significantly simplifying the commissioning process and enhancing protection reliability.

Enhanced Monitoring and Analysis: The ABB RET670 1MRK002816-AB incorporates comprehensive monitoring and recording capabilities that provide valuable insights into transformer performance and relay operation. It features high-resolution disturbance recording with extended memory capacity, detailed event logging with time synchronization, and continuous measurement of transformer parameters including load tap changer operations. The advanced monitoring functions of the ABB RET670 1MRK002816-AB support condition-based maintenance strategies and facilitate thorough post-event analysis, helping operators optimize transformer performance and improve reliability.

User-Friendly Operation and Configuration: Designed for efficiency throughout its lifecycle, the ABB RET670 1MRK002816-AB features intuitive human-machine interface with a large graphical display and navigation keys for local operation. The relay supports ABB’s PCM600 configuration tool for simplified setting management, and its modular design facilitates easy maintenance and potential future upgrades. The user-centric design of the ABB RET670 1MRK002816-AB reduces engineering time, minimizes the risk of configuration errors, and streamlines routine testing and maintenance procedures for transformer protection applications.

Application Field

The ABB RET670 1MRK002816-AB finds its primary application in power transmission and distribution networks where reliable transformer protection is critical for system stability and power supply continuity. In utility substations, this protection terminal is deployed for protecting power transformers ranging from distribution transformers to large autotransformers in networks from 110kV to 400kV, where its comprehensive protection capability provides complete security for these critical and expensive assets. The ABB RET670 1MRK002816-AB is particularly valuable in applications requiring complex protection schemes for multi-winding transformers, including phase shift transformers and transformers with load tap changers, making it ideal for both new installations and modernization projects.

In industrial power systems, the ABB RET670 1MRK002816-AB provides main protection for step-down transformers in large industrial plants, steel mills, and petrochemical facilities. Its comprehensive protection functions and communication capabilities ensure reliable operation of critical power supply transformers, while the device’s robust design withstands the challenging electromagnetic environment typical of industrial installations. The flexibility of the ABB RET670 1MRK002816-AB allows it to be adapted to various transformer configurations, making it suitable for both simple two-winding transformers and complex three-winding transformer applications in industrial power distribution systems.

The ABB RET670 1MRK002816-AB also plays a crucial role in renewable energy applications, particularly in protecting main step-up transformers in wind farms and solar power plants. In generator-transformer units, this protection terminal ensures reliable operation of the generator transformer, while in railway electrification systems, it provides comprehensive protection for traction power transformers. The device’s adaptability and advanced features make the ABB RET670 1MRK002816-AB a versatile solution across the energy value chain, from generation to transmission and industrial power distribution, ensuring the protection of valuable transformer assets.

Related Products

ABB REB670: Line differential protection relay for transmission line applications

ABB REF615: Feeder protection relay for distribution applications

ABB REG670: Generator protection relay for power generation units

ABB REC670: Capacitor bank protection relay for reactive power compensation

ABB RES670: Numerical busbar protection system

ABB REX640: Universal protection relay platform for various applications

ABB RADSS: Transformer differential protection system

ABB PCM600: Protection and Control IED Manager for configuration

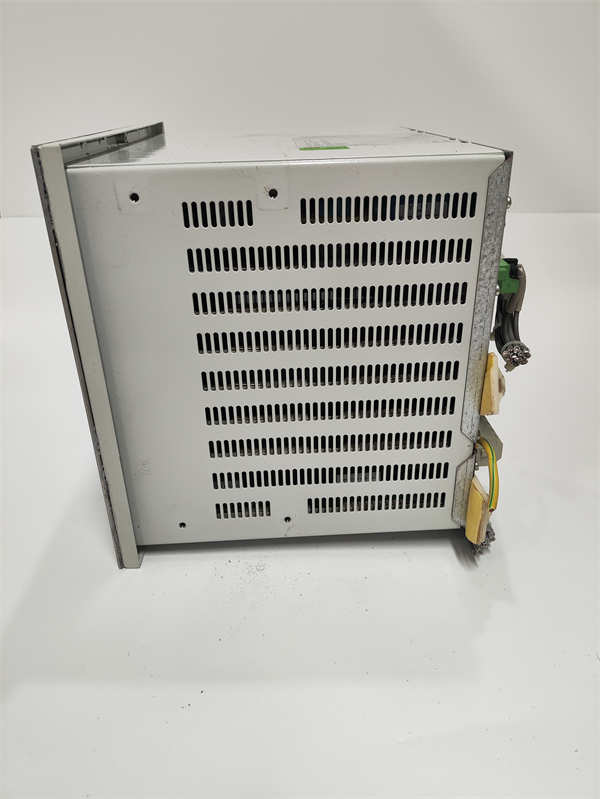

ABB RET670 1MRK002816-AB

Installation and Maintenance

Pre-installation preparation: Before installing the ABB RET670 1MRK002816-AB, carefully review the product documentation and verify compatibility with the specific transformer application requirements. Ensure the panel cutout dimensions meet specifications and confirm adequate clearance for wiring and ventilation. For the ABB RET670 1MRK002816-AB, prepare the necessary CT and VT circuits with correct ratios and verify the transformer vector group configuration. Ensure the availability of appropriate configuration tools and confirm all required accessories including mounting hardware and communication modules are available before commencing installation.

Maintenance recommendations: Regular maintenance for the ABB RET670 1MRK002816-AB should include periodic inspection of the front panel indicators and display readings to verify normal operation. The device’s self-supervision functions should be monitored through available communication interfaces or local display. For the ABB RET670 1MRK002816-AB, maintain accurate records of setting changes and firmware versions, and perform regular backups of configuration parameters. Ensure time synchronization is maintained for accurate event recording, and periodically verify the integrity of differential protection circuits. Regular functional testing according to the maintenance schedule and manufacturer’s recommendations is essential to maintain protection system reliability for critical transformer assets.
