Description

The TRICONEX 2071H 7400313-100 is a high-density, 32-channel digital input module specifically engineered for the Tricon v9, v10, and Tricon CX safety instrumented systems. This critical component serves as the primary interface between field devices and the triple modular redundant (TMR) safety controller, converting discrete DC signals from field switches, transmitters, and sensors into reliable digital data for processing by the Tricon system. The fundamental role of the TRICONEX 2071H 7400313-100 is to provide the essential “eyes” for the safety system, monitoring the status of emergency shutdown valves, pressure switches, level switches, and other critical safety devices in process industries. Its TMR architecture means that each of the 32 input channels is triplicated across three independent internal circuits, with the system employing a 2-out-of-3 voting mechanism to ensure both high availability and extreme fault tolerance.

As a vital part of the world-renowned Triconex safety platform, now part of Schneider Electric, the TRICONEX 2071H 7400313-100 embodies the rigorous design principles required for Safety Integrity Level (SIL) 3 applications according to IEC 61508 standards. The module is designed to operate reliably in harsh industrial environments where electrical noise, temperature extremes, and vibration are common. The value of the TRICONEX 2071H 7400313-100 extends beyond simple signal conversion; it represents a critical layer of protection for people, equipment, and the environment by ensuring that the safety system receives accurate and dependable information about the state of the protected process. Its comprehensive diagnostic capabilities continuously monitor both the module’s internal health and the integrity of the field wiring, providing early warning of potential failures and maintaining the overall integrity of the safety instrumented function.

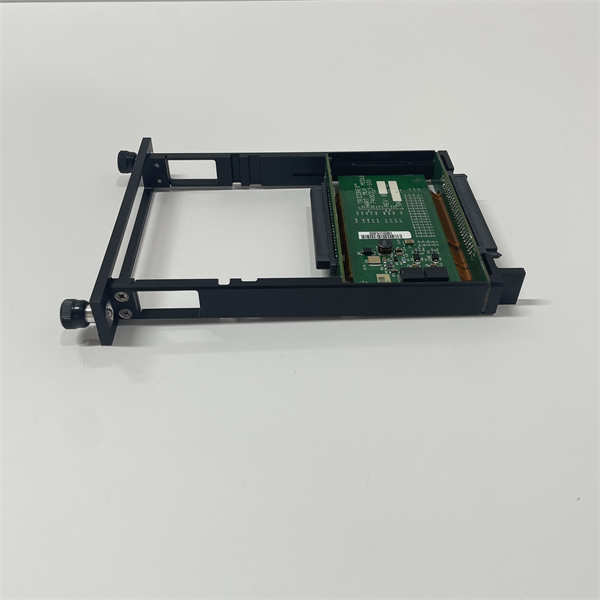

TRICONEX 2071H 7400313-100

Technical Specifications

Main Features and Advantages

Triple Modular Redundant (TMR) Architecture: The defining characteristic of the TRICONEX 2071H 7400313-100 is its complete triple redundancy. Each input channel consists of three independent circuits, each with its own power supply, microprocessor, and communication path. The system performs continuous voting on the data from all three legs, ensuring that a single fault in any part of the input circuitry does not cause a system failure or spurious trip. This TMR design of the TRICONEX 2071H 7400313-100 provides the high availability and fault tolerance required for critical safety applications, allowing online maintenance and repair without shutting down the protected process.

Comprehensive Diagnostic Capabilities: The module features extensive online diagnostics that monitor both module health and field circuit integrity. The TRICONEX 2071H 7400313-100 can detect field-side problems such as open circuits, short circuits, and loss of field power. Internally, it continuously checks for faults in its processors, memory, and communication circuits. These diagnostics are reported to the main processor, which can alert operators to take corrective action before a fault compromises the safety function. This proactive maintenance capability significantly enhances the reliability and operational readiness of the safety system.

Flexible Field Wiring Configuration: A key operational advantage of the TRICONEX 2071H 7400313-100 is its flexible field wiring capability. The 32 input points are grouped into four banks of eight channels each. Each bank can be independently configured via a jumper block to accept either sinking (NPN) or sourcing (PNP) field signals. This flexibility simplifies integration with a wide variety of field devices and existing instrumentation, reducing engineering time and potential wiring errors during installation or modification of the safety system.

High Density and Robust Design: The TRICONEX 2071H 7400313-100 provides a high channel count in a single-slot form factor, optimizing cabinet space and reducing the overall footprint of the safety system. Despite its high density, the module is built to withstand the demanding conditions of industrial environments. It features high noise immunity, conformal-coated circuit boards for protection against contaminants, and robust connectors designed for reliable operation in the presence of vibration. This combination of density and ruggedness makes the TRICONEX 2071H 7400313-100 an efficient and reliable choice for large safety applications.

Application Field

The TRICONEX 2071H 7400313-100 is deployed in safety instrumented systems (SIS) across process industries where the failure of a control function could lead to catastrophic consequences. In the oil and gas sector, it is extensively used on offshore platforms, in refineries, and along pipelines for emergency shutdown (ESD) systems. Here, the module monitors critical devices such as pressure safety switches on vessels, flame detectors in fired heaters, and gas detection sensors, ensuring that the TRICONEX 2071H 7400313-100 can initiate a safe shutdown in the event of a hazardous condition.

In petrochemical and chemical plants, the module forms part of the safety system protecting reactors, distillation columns, and storage facilities. The high-density TRICONEX 2071H 7400313-100 is ideal for these applications where a large number of discrete signals—from flow switches, level switches, and temperature switches—need to be monitored reliably. Its TMR architecture ensures that the process can continue operating safely even in the presence of a fault, preventing costly production losses while maintaining the highest safety standards.

The TRICONEX 2071H 7400313-100 also plays a vital role in power generation, particularly in nuclear and fossil-fueled plants, where it is used in turbine shutdown systems and boiler protection systems. In pharmaceutical and other highly regulated industries, the module provides the reliable input data needed for safety interlocks on critical process equipment. The proven reliability and SIL 3 certification of the TRICONEX 2071H 7400313-100 make it the preferred choice for any application where functional safety is paramount and system integrity cannot be compromised.

Related Products

TRICONEX 3664: Termination panel unit used for field wiring connection to the 2071H module.

TRICONEX 2071K: A similar 32-point digital input module with enhanced specifications.

TRICONEX 2073H: 32-Channel Digital Output Module, often used alongside the 2071H for complete safety control.

TRICONEX 2070H: 16-Channel Analog Input Module for process variable monitoring in the same TMR system.

TRICONEX 4351B: Main Processor Module for the Tricon system, which processes the inputs from the 2071H.

TRICONEX 8302A: Power Supply Module that provides conditioned power to the 2071H and other modules.

TRICONEX 9571-810: Communication Module for interfacing the Tricon system with DCS and other networks.

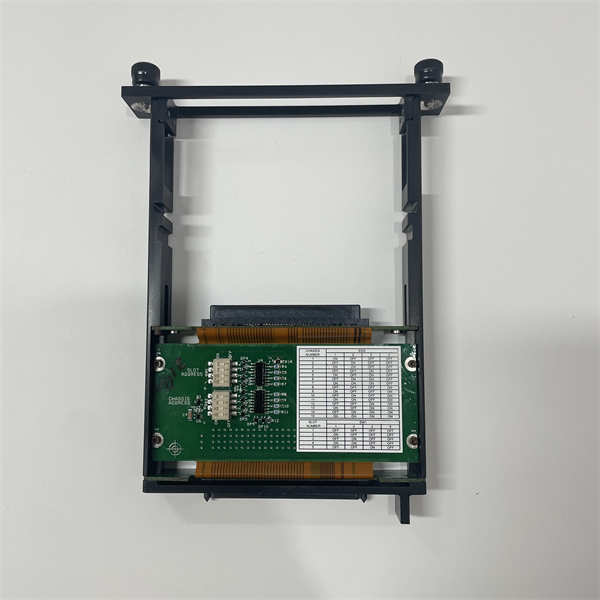

TRICONEX 2071H 7400313-100

Installation and Maintenance

Pre-installation preparation: Before installing the TRICONEX 2071H 7400313-100, ensure the Tricon chassis is powered down and properly isolated. Verify the module’s compatibility with your specific Tricon controller model (v9, v10, or CX). For the TRICONEX 2071H 7400313-100, carefully plan the field wiring configuration by setting the sink/source jumpers for each bank of 8 channels according to your field device specifications. Have the appropriate termination units (like the 3664) and cables ready, and ensure all tools are properly grounded to prevent electrostatic discharge damage to the sensitive electronic components.

Maintenance recommendations: Regular maintenance for the TRICONEX 2071H 7400313-100 involves monitoring its status through the Tricon diagnostic software and noting any reported faults. The module supports online replacement in a powered chassis, but this should only be performed by trained personnel following proper procedures. For the TRICONEX 2071H 7400313-100, periodically review the diagnostic history and perform a visual inspection for any signs of damage or corrosion on the connectors. It is recommended to keep a pre-configured spare module to minimize downtime in case of a failure. Always follow the manufacturer’s guidelines for module handling and storage to preserve its reliability.
