Description

The TRICONEX 3902AX is a high-performance 8-channel analog input module specifically designed for the Tricon v9, v10, and Tricon CX safety instrumented systems. This sophisticated module serves as the critical interface for continuous process variables, converting analog signals from field transmitters into reliable digital data for processing by the triple modular redundant (TMR) safety controller. The primary function of the TRICONEX 3902AX is to provide precise monitoring of critical process parameters such as pressure, temperature, flow, and level by interfacing with 4-20mA transmitters and other analog field devices. Its advanced TMR architecture ensures that each input channel is triplicated across three independent internal circuits, with the system employing a 2-out-of-3 voting mechanism to achieve both high availability and extreme fault tolerance for safety-critical applications.

As an integral component of the renowned Triconex safety platform, now part of Schneider Electric, the TRICONEX 3902AX embodies the rigorous design standards required for Safety Integrity Level (SIL) 3 applications according to IEC 61508 standards. The module is engineered to deliver exceptional accuracy and stability in harsh industrial environments where electrical noise, temperature variations, and vibration are prevalent. The value proposition of the TRICONEX 3902AX extends beyond basic signal conversion; it represents a vital sensing layer for process safety by ensuring that the safety system receives accurate and dependable information about continuous process conditions. Its comprehensive diagnostic capabilities continuously monitor both the module’s internal health and the integrity of field loops, providing early detection of potential failures and maintaining the overall integrity of safety instrumented functions in demanding process applications.

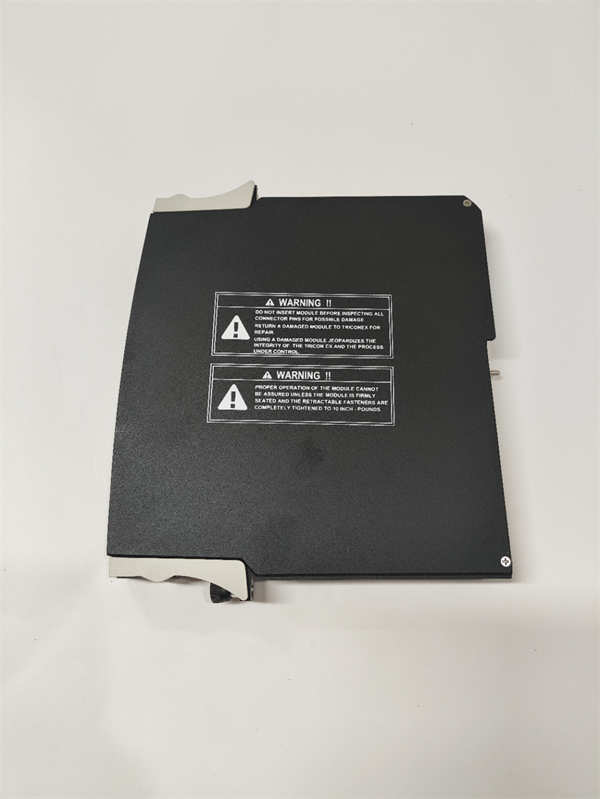

TRICONEX 3902AX

Technical Specifications

Main Features and Advantages

Triple Modular Redundant Architecture: The core strength of the TRICONEX 3902AX lies in its complete triple redundancy design. Each analog input channel is processed through three independent circuits, each with its own signal conditioning, analog-to-digital conversion, and processing path. The system continuously compares the results from all three legs and uses median voting to determine the valid process value. This TMR architecture of the TRICONEX 3902AX ensures that a single fault in any part of the input circuitry will not cause a system failure or generate erroneous data, providing the high availability and fault tolerance essential for critical safety applications.

High Accuracy and Signal Integrity: The TRICONEX 3902AX delivers exceptional measurement accuracy with 16-bit resolution and ±0.1% of span accuracy under reference conditions. The module features advanced signal conditioning with high common-mode and normal-mode rejection ratios, effectively eliminating noise and ensuring clean signal acquisition in electrically noisy industrial environments. The precision engineering of the TRICONEX 3902AX guarantees that even small changes in process variables are accurately detected, enabling the safety system to make precise decisions based on reliable process data.

Comprehensive Diagnostic Coverage: This module incorporates extensive online diagnostics that monitor both internal module health and external field circuit integrity. The TRICONEX 3902AX can detect field-side problems such as open circuits, short circuits, and out-of-range signals. Internally, it continuously verifies the health of its power supplies, processors, memory, and communication circuits. These diagnostic capabilities of the TRICONEX 3902AX provide early warning of potential failures, allowing for planned maintenance and preventing undetected failures that could compromise the safety function.

Flexible Configuration and Hot Replacement: The TRICONEX 3902AX supports flexible configuration options through the TriStation 1131 software, allowing engineers to set alarm limits, filtering parameters, and failure states for each channel. The module is designed for hot replacement, meaning it can be removed and inserted into a powered chassis without shutting down the Tricon system or the protected process. This maintainability feature of the TRICONEX 3902AX significantly enhances system availability and reduces maintenance downtime in continuous process applications.

Application Field

The TRICONEX 3902AX is deployed in safety instrumented systems across process industries where continuous monitoring of analog process variables is critical for safe operation. In the oil and gas industry, it is extensively used in emergency shutdown systems on offshore platforms, in refineries, and along pipelines. Here, the TRICONEX 3902AX monitors critical process variables such as vessel pressures, compressor discharge temperatures, and flow rates, ensuring that the safety system can initiate appropriate actions when process conditions approach unsafe limits.

In petrochemical and chemical processing plants, the module forms an essential part of safety systems protecting reactors, distillation columns, and storage facilities. The high-precision TRICONEX 3902AX is ideal for these applications where accurate monitoring of temperature, pressure, and level is crucial for preventing runaway reactions, overpressurization, or environmental releases. Its robust design and diagnostic capabilities make it particularly valuable in these demanding applications where measurement reliability directly impacts process safety.

The TRICONEX 3902AX also plays a vital role in power generation facilities, including nuclear, thermal, and combined-cycle plants, where it monitors critical parameters in turbine control, boiler protection, and feedwater systems. In pharmaceutical and other batch process industries, the module provides the reliable analog input needed for safety interlocks on reactors and other critical process equipment. The proven reliability and SIL 3 certification of the TRICONEX 3902AX make it the preferred choice for any application where accurate analog signal acquisition is essential for functional safety and where system integrity cannot be compromised.

Related Products

TRICONEX 3801E: Analog Input Module with different channel count or specifications

TRICONEX 3805E: High Density Analog Input Module

TRICONEX 3663: Termination panel unit for analog input module field wiring

TRICONEX 3503E: Analog Output Module for control output applications

TRICONEX 4351B: Main Processor Module for the Tricon system

TRICONEX 8302A: Power Supply Module for system power distribution

TRICONEX 9571-810: Communication Module for system integration

TRICONEX 2071H: Digital Input Module for discrete signal monitoring

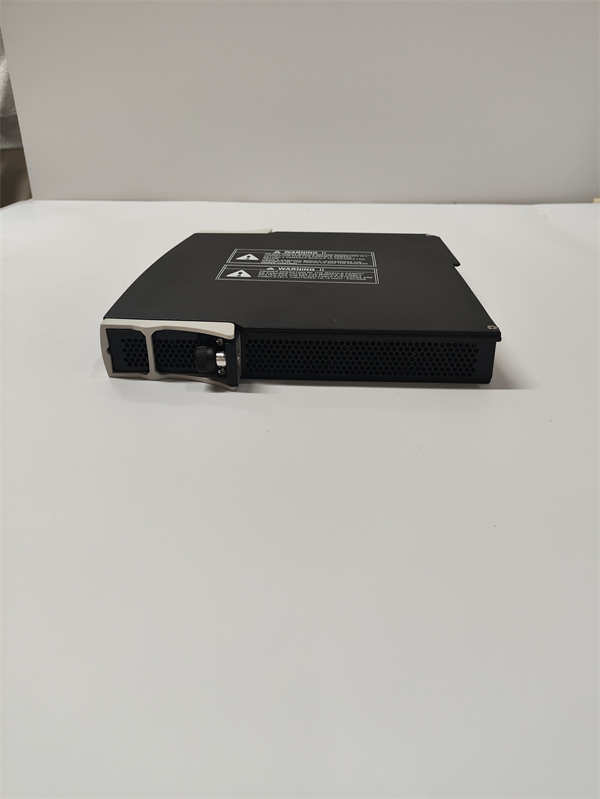

TRICONEX 3902AX

Installation and Maintenance

Pre-installation preparation: Before installing the TRICONEX 3902AX, ensure the Tricon chassis is properly powered down and isolated. Verify compatibility with your specific Tricon controller model and chassis type. For the TRICONEX 3902AX, carefully plan the field wiring configuration, ensuring proper shielding and grounding practices are followed for analog signals. Have the appropriate termination units and cables ready, and ensure all configuration tools including TriStation 1131 software are available for module setup and commissioning. Verify that the field transmitters are properly calibrated and configured for 4-20mA output before connection.

Maintenance recommendations: Regular maintenance for the TRICONEX 3902AX involves monitoring its operational status through the Tricon diagnostic software and reviewing any reported faults or deviations. The module supports online replacement in a powered chassis, but this procedure should only be performed by trained personnel following established safety protocols. For the TRICONEX 3902AX, periodically verify calibration accuracy by comparing the module’s readings with known reference values. Maintain proper documentation of all configuration changes and calibration records. Keep the module firmware updated according to manufacturer recommendations and maintain a stock of pre-configured spare modules to minimize system downtime in case of failure.
