Description

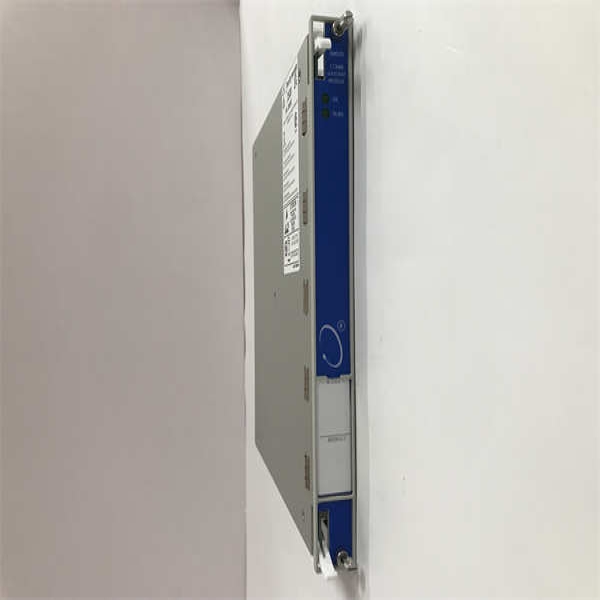

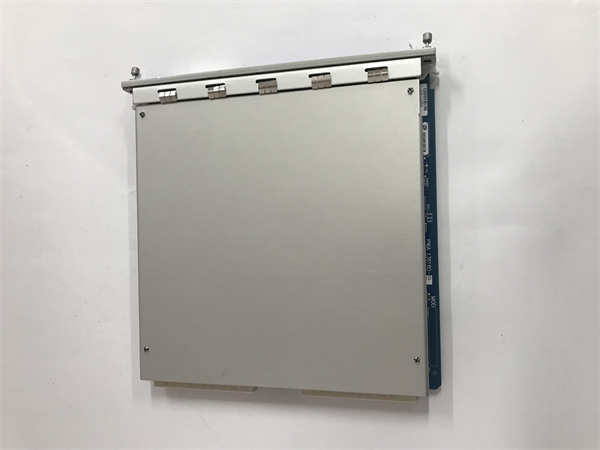

The BENTLY 3500-92 136180-01 is a sophisticated Communication Gateway module that serves as the critical interface between the Bently Nevada 3500 machinery monitoring system and external plant networks and control systems. This advanced communication module functions as the data conduit that bridges the gap between the real-time machinery protection world and the broader plant automation environment, enabling comprehensive data integration and remote monitoring capabilities. The primary function of the BENTLY 3500-92 136180-01 is to collect, process, and transmit machinery health data from all monitoring modules within the 3500 rack to distributed control systems (DCS), plant asset management systems (PAM), and other higher-level monitoring applications. Its role extends beyond simple data passing – it provides intelligent data management, protocol conversion, and network integration that transforms raw monitoring data into actionable information for operations and maintenance personnel across the enterprise.

As the communication backbone of the 3500 system, the BENTLY 3500-92 136180-01 embodies the convergence of machinery protection and industrial digitalization. The module supports multiple industry-standard communication protocols simultaneously, allowing seamless integration with various control and monitoring platforms from different manufacturers. The strategic value of the BENTLY 3500-92 136180-01 lies in its ability to make critical machinery information accessible throughout the organization, enabling condition-based maintenance strategies, predictive analytics, and centralized monitoring of distributed assets. By providing reliable, timestamped data from vibration monitors, position sensors, temperature monitors, and other protection channels, this gateway module transforms the 3500 system from an isolated protection device into an integrated component of the modern industrial IoT ecosystem, contributing significantly to improved equipment reliability, reduced maintenance costs, and enhanced operational intelligence.

BENTLY 3500-92 136180-01

Technical Specifications

Main Features and Advantages

Multi-Protocol Communication Capability: The BENTLY 3500-92 136180-01 stands out for its ability to communicate using multiple industrial protocols simultaneously. This versatile module can interface with Modbus TCP/IP for integration with most modern DCS systems, while also supporting OPC for connection to asset management systems and historical databases. The protocol flexibility of the BENTLY 3500-92 136180-01 eliminates the need for additional protocol converters and simplifies integration in multi-vendor automation environments, providing a future-proof communication solution that can adapt to evolving plant network architectures.

High-Performance Data Handling: This gateway module is engineered to handle the substantial data throughput generated by comprehensive machinery monitoring systems. The BENTLY 3500-92 136180-01 can process and transmit not only basic process variables and alarm statuses but also dynamic waveform data and event records from multiple monitoring channels. The efficient data management of the BENTLY 3500-92 136180-01 ensures that critical machinery information reaches operations and engineering personnel in near real-time, enabling quick response to developing equipment issues and supporting detailed analysis of machinery behavior.

Advanced Configuration and Monitoring: The module offers sophisticated configuration options through both web-based interfaces and dedicated software tools. The BENTLY 3500-92 136180-01 provides extensive diagnostic information about communication status, data flow, and network health, allowing IT and instrumentation personnel to quickly identify and resolve connectivity issues. The user-friendly configuration interface of the BENTLY 3500-92 136180-01 simplifies the setup of data mapping, alarm handling, and communication parameters, reducing engineering time and minimizing configuration errors during system commissioning and modifications.

Robust Network Security and Reliability: Designed for industrial network environments, the BENTLY 3500-92 136180-01 incorporates features that ensure communication security and network stability. The module includes configurable security settings, network segregation capabilities, and fault-tolerant communication mechanisms that maintain data integrity even during network disturbances. The industrial-grade construction of the BENTLY 3500-92 136180-01 ensures reliable operation in electrically noisy environments, while its dual Ethernet ports support network redundancy schemes that enhance overall system availability.

Application Field

The BENTLY 3500-92 136180-01 finds essential application across all industries where Bently Nevada 3500 systems are deployed and integration with plant-wide monitoring and control systems is required. In power generation facilities, this gateway module serves as the critical link between turbine protection systems and plant DCS, enabling operators to monitor vibration, temperature, and other critical parameters from the central control room. The BENTLY 3500-92 136180-01 allows power plant personnel to view machinery health information alongside process parameters, supporting comprehensive operational decision-making and facilitating compliance with grid reliability requirements.

In oil and gas applications, the module is extensively used on offshore platforms, in refineries, and along pipelines to integrate compressor and pump monitoring systems with centralized operations centers. The communication capabilities of the BENTLY 3500-92 136180-01 enable remote monitoring of critical equipment across distributed facilities, reducing the need for local presence and supporting asset integrity management programs. The module’s ability to transmit detailed vibration data and event histories makes it invaluable for diagnostic engineers analyzing equipment performance and planning maintenance activities.

The BENTLY 3500-92 136180-01 also plays a vital role in manufacturing industries including petrochemicals, pulp and paper, and metals production, where it connects machinery protection systems to plant asset management solutions. In these applications, the gateway module facilitates the implementation of predictive maintenance strategies by making detailed equipment health data available to maintenance planning systems and reliability engineering teams. The versatile communication options of the BENTLY 3500-92 136180-01 ensure compatibility with various automation architectures, making it suitable for both modern greenfield installations and legacy system upgrades across diverse industrial sectors.

Related Products

BENTLY 3500/15: Redundant Power Supply Module

BENTLY 3500/25: Keyphasor Module for timing reference

BENTLY 3500/32M: 4-Channel Vibration Monitor

BENTLY 3500/42M: Proximitor Power Supply

BENTLY 3500/50: 4-Channel Analog Monitor

BENTLY 3500/93: Display Module for local interface

BENTLY 3500/53: Relay Module for output control

BENTLY System 1: Asset Management Software platform

BENTLY 3500-92 136180-01

Installation and Maintenance

Pre-installation preparation: Before installing the BENTLY 3500-92 136180-01, ensure the 3500 rack is properly powered down and verify network requirements including IP address assignment, subnet configuration, and firewall considerations. For the BENTLY 3500-92 136180-01, prepare the necessary network cables and ensure compatibility with the target control systems and protocols. Review the data mapping requirements and have the configuration tools and documentation available. Verify rack compatibility and ensure adequate slot space is available for the gateway module installation.

Maintenance recommendations: Regular maintenance for the BENTLY 3500-92 136180-01 involves monitoring communication status through the module’s diagnostic indicators and network monitoring tools. Periodically verify data integrity by comparing values displayed in the DCS with local readings from the 3500 system. For the BENTLY 3500-92 136180-01, maintain updated documentation of network configurations and data mappings, and keep the module firmware current according to manufacturer recommendations. Regularly review communication performance metrics and establish backup procedures for configuration files to facilitate quick recovery in case of module replacement or failure.
