Description

The SHINKAWA MP Series vibration meters, including models MP-2T, MP-2S, MP-2P4, MP-2P1, and MP-2W2, represent a comprehensive family of professional portable vibration monitoring instruments designed for industrial predictive maintenance applications. These advanced handheld devices provide accurate measurement and analysis of vibration parameters, enabling maintenance personnel to assess machinery health and detect potential mechanical issues before they lead to equipment failure. Each model in the SHINKAWA MP Series offers specific capabilities tailored to different maintenance requirements, from basic vibration measurement to advanced analysis functions.The SHINKAWA MP-2T, MP-2S, MP-2P4, MP-2P1, and MP-2W2 models share the common purpose of supporting condition-based maintenance programs across various industries. These instruments serve as essential tools for routine machinery inspections, providing critical data on vibration levels that can indicate problems such as imbalance, misalignment, bearing wear, or other mechanical faults. The value of the MP Series lies in its ability to provide immediate, accurate vibration readings for both periodic monitoring and troubleshooting applications, helping organizations extend equipment life and reduce unplanned downtime.

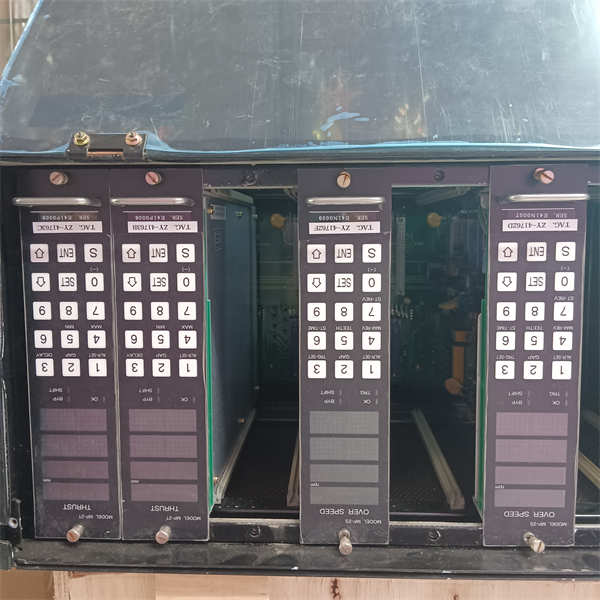

SHINKAWA MP-2T MP-2S MP-2P4 MP-2P1 MP-2W2

Technical Specifications

Parameter Name	MP-2T/MP-2S	MP-2P4/MP-2P1	MP-2W2
Product Models	MP-2T, MP-2S	MP-2P4, MP-2P1	MP-2W2
Measurement Parameters	Velocity, Acceleration	Velocity, Acceleration, Displacement	Velocity, Acceleration, Displacement
Frequency Range	10Hz-1kHz	10Hz-1kHz (Standard)	10Hz-1kHz (Standard)
Measurement Range	Velocity: 0.1-200mm/s	Velocity: 0.1-200mm/s	Velocity: 0.1-200mm/s
Accuracy	±5% reading ±2 digits	±5% reading ±2 digits	±5% reading ±2 digits
Display	LCD with numerical readout	LCD with graphical display	LCD with advanced display
Data Storage	Basic measurement storage	Extensive data storage	Advanced data storage
Interface	Basic communication	RS-232C/USB interface	Advanced communication
Special Features	Standard measurement	FFT analysis capability	Waveform analysis

Technical Principles and Innovative Values

Advanced sensor technology and signal processing: The SHINKAWA MP Series instruments incorporate high-precision piezoelectric accelerometers and sophisticated signal processing algorithms that ensure accurate vibration measurement across the entire frequency range. The MP-2P4 and MP-2P1 models feature enhanced processing capabilities for FFT analysis, while the MP-2W2 offers advanced waveform analysis functions. This technological foundation enables the MP Series to detect subtle changes in machine vibration patterns that may indicate developing faults, providing early warning of potential failures.Comprehensive data management system: The SHINKAWA MP-2T, MP-2S, MP-2P4, MP-2P1, and MP-2W2 models feature varying levels of data storage and management capabilities, with the higher-end models offering extensive memory for storing measurement data from multiple points. The instruments allow users to track vibration trends over time and transfer data to computer systems for detailed analysis. This systematic approach to data management supports effective predictive maintenance programs by providing historical data for comparison and trend analysis.User-centric design and operational efficiency: The MP Series instruments are designed with user convenience in mind, featuring intuitive interfaces, clear displays, and ergonomic designs that facilitate efficient operation in industrial environments. The SHINKAWA MP-2T and MP-2S models provide straightforward measurement functions for routine monitoring, while the MP-2P4, MP-2P1, and MP-2W2 offer progressively more advanced features for detailed analysis. This tiered approach allows users to select the appropriate instrument for their specific needs while maintaining consistency in measurement methodology.

Application Cases and Industry Value

In steel manufacturing plants, the SHINKAWA MP Series instruments are extensively used for monitoring critical equipment such as rolling mill drives, gearboxes, and large motors. Maintenance teams use the MP-2P4 for regular vibration surveys of rotating equipment, storing measurement data for trend analysis. When abnormal vibrations are detected, the MP-2W2 is employed for detailed waveform and spectrum analysis to diagnose the root cause of the problem. This approach has helped steel plants reduce unplanned downtime by 30% and extend equipment life through timely interventions based on accurate vibration data.In chemical processing facilities, the SHINKAWA MP-2T and MP-2S models are used for routine monitoring of pumps, compressors, and agitators in hazardous areas. The instruments’ robust construction and reliable performance make them suitable for use in challenging environments. The data collected using these instruments is integrated into the plant’s computerized maintenance management system (CMMS), enabling data-driven decision making for maintenance planning. This systematic approach has resulted in a 25% reduction in maintenance costs and improved equipment reliability across the facility.

SHINKAWA MP-2T MP-2S MP-2P4 MP-2P1 MP-2W2

Installation Maintenance and Full Cycle Support

Installation preparation: Before using any SHINKAWA MP Series instrument, ensure proper calibration and battery charging. Establish standardized measurement procedures including specific measurement points on each machine, sensor orientation, and measurement parameters. Create a consistent data management system for storing and tracking measurement results from all MP Series instruments used in the facility.Maintenance recommendations: Regular maintenance of MP Series instruments includes periodic calibration verification, sensor inspection, and battery care. Keep the instruments clean and stored in protective cases when not in use. Maintain proper documentation of all instruments including calibration records and service history. Train personnel on the specific features and operation of each MP Series model to ensure proper utilization of their capabilities.
