Description

The RELIANCE SR3000 2SR40700 is an advanced AC motor controller manufactured by Reliance Electric, designed to provide precise speed control and energy-efficient operation for industrial AC motor applications. This sophisticated variable frequency drive represents Reliance’s commitment to delivering high-performance motor control solutions that optimize energy usage while ensuring operational reliability in various industrial environments. The SR3000 2SR40700 incorporates state-of-the-art power electronics and control algorithms, making it suitable for a wide range of AC motor applications where precise speed regulation and energy efficiency are critical requirements.As part of Reliance Electric’s SR3000 series drive portfolio, the RELIANCE SR3000 2SR40700 offers comprehensive control capabilities for AC induction motors, featuring advanced vector control technology that delivers high torque performance across the entire speed range. The drive’s robust design includes built-in diagnostics, programmable acceleration/deceleration ramps, and multiple control mode options, enabling optimal motor performance in diverse application scenarios. The SR3000 2SR40700 integrates seamlessly with automation systems through various communication protocols, providing flexible integration options for modern industrial control architectures.The RELIANCE SR3000 2SR40700 delivers exceptional control accuracy and energy efficiency for AC motor applications, supporting operations in manufacturing, HVAC, water treatment, and material handling industries. Its compact design and advanced thermal management system ensure reliable operation in space-constrained environments, while comprehensive protection features safeguard both the drive and connected motor from electrical faults and abnormal operating conditions. The drive’s user-friendly interface simplifies setup and operation, contributing to reduced commissioning time and enhanced operational efficiency.

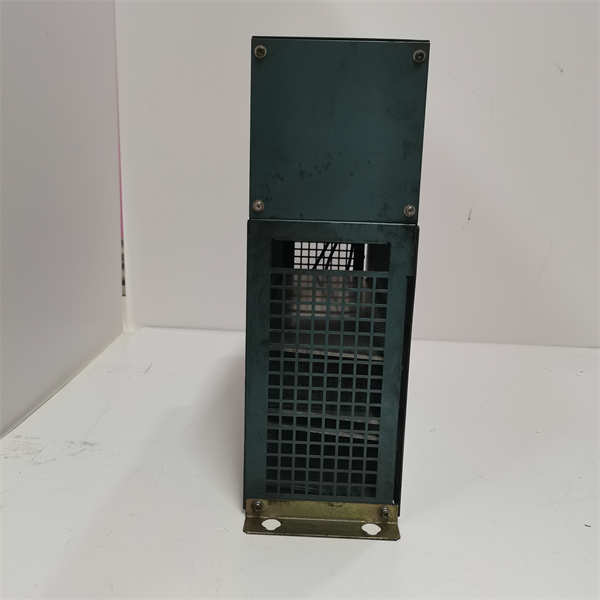

RELIANCE SR3000 2SR40700

Technical Specifications

Main Features and Advantages

Advanced Control Technology: The RELIANCE SR3000 2SR40700 utilizes sophisticated sensorless vector control technology that provides high starting torque and precise speed regulation without requiring feedback devices. The drive maintains ±0.5% speed regulation accuracy under varying load conditions, ensuring consistent process performance. The flexible control architecture supports both vector control for demanding applications and V/Hz control for simpler applications, providing adaptability to various operational requirements.Energy Efficiency Optimization: The drive incorporates automatic energy optimization features that continuously adjust motor flux levels based on load requirements, reducing energy consumption during light load conditions. The SR3000 2SR40700’s high efficiency rating exceeding 97.5% minimizes power losses and reduces operating costs. The built-in power factor correction capability improves overall system power quality while reducing utility demand charges.Comprehensive Protection and Diagnostics: Multiple protection features including electronic motor overload protection, short circuit protection, and ground fault detection safeguard equipment investment. The RELIANCE SR3000 2SR40700 features extensive diagnostic capabilities with fault history logging and real-time monitoring of operating parameters. These diagnostic functions enable predictive maintenance planning and quick troubleshooting, reducing downtime and maintenance costs.Flexible Connectivity: Standard RS-485 Modbus communication enables seamless integration with control systems, while optional Ethernet connectivity provides enhanced network capabilities. The SR3000 2SR40700 supports various I/O configurations including analog and digital inputs/outputs for flexible system integration. The drive’s programmable functionality allows customization for specific application requirements, enhancing system versatility.

Application Field

In industrial manufacturing environments, the RELIANCE SR3000 2SR40700 AC drives provide precise speed control for conveyor systems, pumps, fans, and machine tools. The drives optimize energy consumption while maintaining process accuracy in continuous production operations. The SR3000 2SR40700’s robust design ensures reliable performance in manufacturing plants where electrical noise and voltage fluctuations are common, supporting uninterrupted production schedules.For HVAC applications in commercial buildings, the drive controls fan and pump motors in heating, ventilation, and air conditioning systems. The RELIANCE SR3000 2SR40700’s energy optimization features significantly reduce energy consumption while maintaining comfort conditions. The drive’s quiet operation and reliable performance make it ideal for building automation systems where continuous operation and energy efficiency are paramount.In water and wastewater treatment facilities, the controller regulates pumps and aerators, providing flow control and process optimization. The RELIANCE SR3000 2SR40700’s corrosion-resistant options and reliable operation ensure continuous performance in harsh environmental conditions. The drive’s protection features prevent equipment damage during abnormal process conditions, ensuring reliable operation of critical water infrastructure systems.

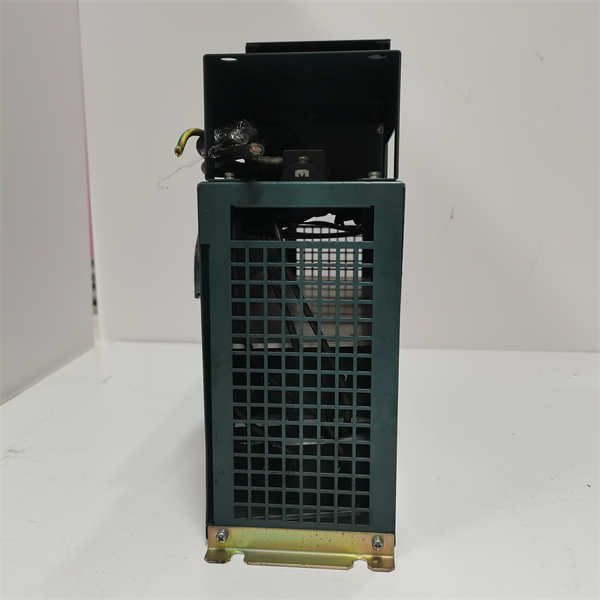

RELIANCE SR3000 2SR40700

Related Products

SR3000 2SR40500: 5HP version for smaller motor applicationsSR3000 2SR41000: 10HP version for larger motor requirementsSR4000: Advanced AC drive with enhanced featuresVS Drive*: Compact AC drive alternativeSP500: Digital DC drive for specific applicationsAutoMate: Control system for integrated automationFlexPak: Multi-function drive platformGemini: Drive system for specialized applications

Installation and Maintenance

Pre-installation preparation: The RELIANCE SR3000 2SR40700 requires proper mounting in a well-ventilated control panel with adequate clearance for heat dissipation. Ensure correct power wiring following manufacturer guidelines, with proper fusing and circuit protection installed. Verify motor compatibility and parameter settings before energizing the system. Use appropriate wire sizes and follow recommended grounding practices to ensure reliable operation and electrical safety.Maintenance recommendations: Regular inspection of power connections and cooling surfaces ensures optimal performance of the RELIANCE SR3000 2SR40700. Monitor drive operation and check for abnormal temperatures or audible alerts during routine operation. Maintain clean operating conditions and ensure adequate ventilation to prevent overheating. Keep parameter backups and maintain current firmware versions to ensure optimal performance and access to latest features.
