Description

The RELIANCE VZ3000G UVZC3455G is an advanced generation AC drive manufactured by Reliance Electric, designed to provide superior motor control and energy efficiency for industrial applications. This sophisticated variable frequency drive represents the evolution of Reliance’s VZ3000 series, incorporating enhanced features and improved performance characteristics for modern industrial requirements. The VZ3000G UVZC3455G combines state-of-the-art power electronics with advanced control algorithms, making it suitable for a wide range of AC motor applications where precision control, energy savings, and reliability are critical operational requirements.As part of the enhanced VZ3000G series, the RELIANCE UVZC3455G drive offers comprehensive motor control capabilities featuring improved thermal management, enhanced diagnostics, and expanded communication options. The drive’s design incorporates the latest IGBT technology and advanced DSP-based control, delivering precise speed regulation and torque control across the entire operating range. The VZ3000G UVZC3455G integrates seamlessly with modern automation systems through multiple communication protocols, providing flexible integration options while maintaining the rugged reliability expected from Reliance Electric products.The RELIANCE VZ3000G UVZC3455G delivers exceptional performance for demanding industrial applications, supporting operations in manufacturing, HVAC, water treatment, and material handling industries. Its compact design and improved cooling system ensure reliable operation in space-constrained environments, while comprehensive protection features safeguard both the drive and connected equipment. The drive’s user-friendly interface and enhanced programming capabilities simplify setup and operation, contributing to reduced commissioning time and improved operational efficiency.

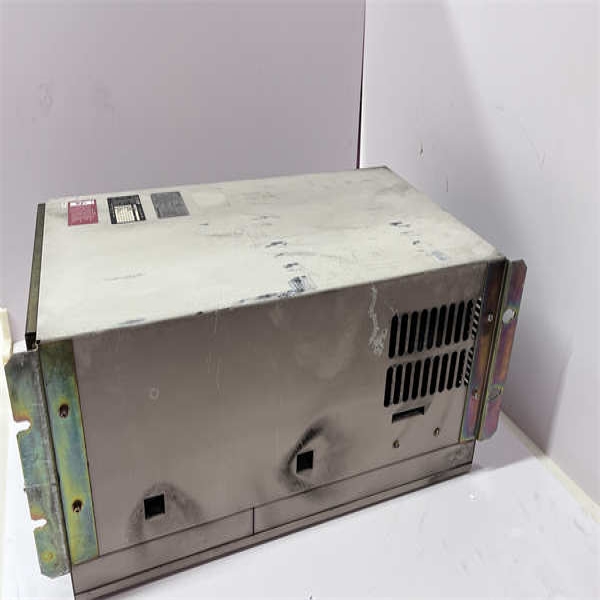

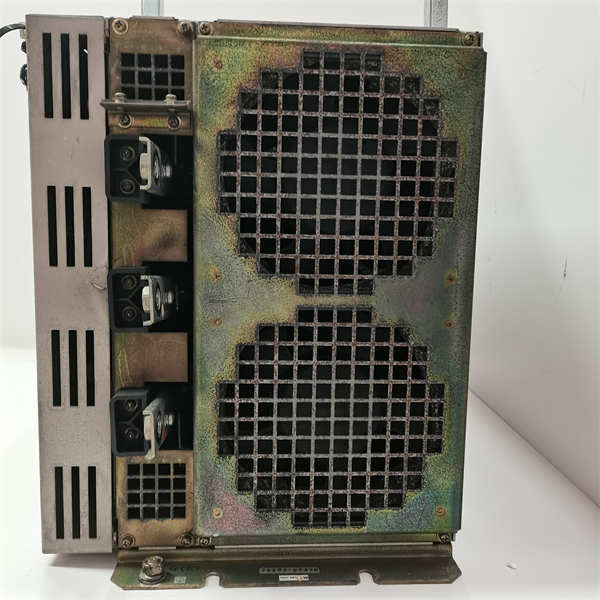

RELIANCE VZ3000G UVZC3455G

Technical Specifications

Main Features and Advantages

Advanced Control Technology: The RELIANCE VZ3000G UVZC3455G utilizes enhanced sensorless vector control technology that provides superior starting torque and precise speed regulation without requiring encoder feedback. The drive maintains ±0.2% speed regulation accuracy under varying load conditions, ensuring consistent process performance in the most demanding applications. The advanced control algorithms include automatic torque boost and slip compensation, delivering optimal motor performance across the entire operating range.Enhanced Energy Efficiency: The drive incorporates intelligent energy optimization algorithms that dynamically adjust motor flux based on real-time load requirements, reducing energy consumption during light load conditions by up to 30%. The VZ3000G UVZC3455G’s high efficiency rating exceeding 98% minimizes power losses and significantly reduces operating costs. The integrated harmonic mitigation features improve overall system power quality while reducing utility demand charges.Comprehensive Connectivity: With dual Ethernet ports supporting simultaneous EtherNet/IP and Modbus TCP communications, the RELIANCE VZ3000G UVZC3455G offers unparalleled connectivity options for modern industrial networks. The drive’s embedded web server allows remote monitoring and configuration via standard web browsers, while the USB port provides convenient local programming capability. These advanced connectivity features support Industry 4.0 initiatives and enable seamless integration into smart manufacturing environments.Robust Protection System: The drive features comprehensive protection mechanisms including advanced ground fault detection, phase loss protection, and motor thermal protection. The VZ3000G UVZC3455G’s enhanced diagnostic system provides detailed fault analysis with time-stamped event logging, enabling predictive maintenance and reducing troubleshooting time. The drive’s rugged design ensures reliable operation in harsh industrial environments with high immunity to electrical noise and voltage transients.

Application Field

In advanced manufacturing facilities, the RELIANCE VZ3000G UVZC3455G AC drives provide precise speed and torque control for automated production equipment, robotics, and precision machining centers. The drive’s high-speed communication capabilities and precise control algorithms support Industry 4.0 applications, enabling real-time data exchange and adaptive control strategies. The VZ3000G UVZC3455G’s robust performance ensures reliable operation in continuous production environments where maximum uptime is essential.For large-scale HVAC systems in commercial and institutional buildings, the drive optimizes energy consumption while maintaining precise environmental control. The RELIANCE VZ3000G UVZC3455G’s advanced energy management features significantly reduce operational costs in large facilities, while its quiet operation and reliable performance make it ideal for critical environments such as hospitals, data centers, and research facilities where uninterrupted operation is paramount.In water and wastewater treatment plants, the drive provides critical control for pumps, blowers, and aerators in demanding environmental conditions. The RELIANCE VZ3000G UVZC3455G’s corrosion-resistant options and enhanced protection features ensure reliable performance in harsh conditions, while its advanced control capabilities support complex process requirements and energy management initiatives in municipal infrastructure applications.

Related Products

VZ300G UVZC3445G: 10HP version for medium-power applicationsVZ3000G UVZC3465G: 20HP version for higher power requirementsVZ3000G Control Module: Main control board for system upgradesVZ3000G Power Module: Power section componentsAutoMate Control System: Integrated control platformSP500 Drive: Alternative drive solutionFlexPak Drive System: Multi-drive configurationGemini Control: Specialized control platform

Installation and Maintenance

Pre-installation preparation: The RELIANCE VZ3000G UVZC3455G requires proper mounting in a well-ventilated enclosure with adequate clearance for heat dissipation. Ensure correct power wiring following manufacturer guidelines, with proper line and load reactors installed when necessary. Verify motor compatibility and complete parameter configuration before initial startup. Use shielded cables for control wiring and follow recommended grounding practices to ensure EMC compliance and reliable operation.Maintenance recommendations: Regular inspection of power terminals and cooling surfaces ensures optimal performance of the VZ3000G UVZC3455G. Monitor drive temperatures and maintain clean air filters to prevent overheating. Perform periodic parameter backups and firmware updates to maintain optimal performance. The drive’s advanced diagnostics provide early warning of potential issues, enabling proactive maintenance planning and reducing unexpected downtime.
