Description

The ​​RADISYS SBC486DX66​​ is an industrial-grade, high-integration single-board computer (SBC) built around the Intel 486DX2 microprocessor operating at 66 MHz. This board was designed during the era when the 486 architecture was the workhorse of embedded computing, providing a perfect balance of processing power, low power consumption, and compatibility with the vast MS-DOS and real-time operating system software base. The ​​RADISYS SBC486DX66​​ consolidates the core functions of a full PC/AT system onto a single, robust board, including CPU, memory, video controller, disk interfaces, and serial/parallel ports. Its primary value proposition lies in its extreme reliability and long-term availability, making it a cornerstone for mission-critical embedded systems that require stable, proven hardware over many years, often exceeding the lifecycle of commercial-grade components.As a product from RADISYS, a company renowned for its commitment to long-lifecycle products, the ​​SBC486DX66​​ was engineered for applications where failure is not an option. It typically features soldered-down memory and industrial-temperature-rated components to ensure stable operation in environments with wide temperature swings, vibration, and electrical noise. The board’s high level of integration reduces the system’s overall chip count, thereby increasing mean time between failures (MTBF). Even today, the ​​RADISYS SBC486DX66​​ remains a critical component for maintaining and supporting legacy industrial automation, medical, defense, and transportation systems that were designed around this technology platform and are too costly or complex to replace entirely. It serves as a reliable computational engine for dedicated control, data acquisition, and user interface tasks.

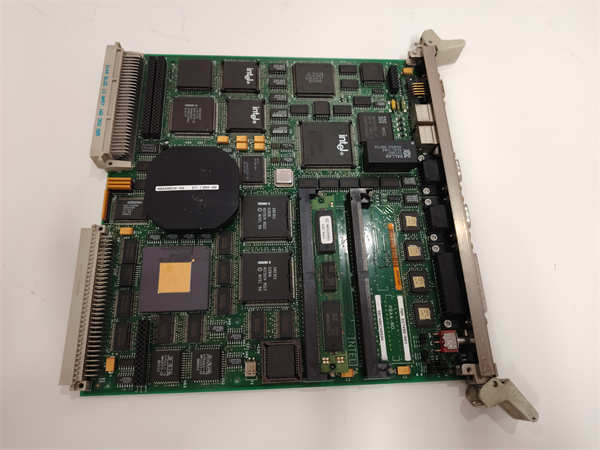

RADISYS SBC486DX66

Technical Specifications

Main Features and Advantages

Robust industrial design: The ​​RADISYS SBC486DX66​​ is built to a much higher standard than commercial desktop boards of the same era. It often utilizes a larger PCB for better heat dissipation and mechanical stability, and components are selected for longevity and performance under stress. This robust construction makes the ​​SBC486DX66​​ ideal for 24/7 operation in harsh industrial environments where standard PCs would fail, ensuring unparalleled system uptime and reliability.High integration and PC/AT compatibility: A key advantage of the ​​RADISYS SBC486DX66​​ is its high level of integration. It incorporates most core PC functions—CPU, memory, graphics, disk control, and I/O—on a single board. This “computer-on-a-board” approach simplifies system design, reduces the number of potential failure points, and minimizes the overall footprint. Its full PC/AT compatibility guarantees that it can run a wide array of off-the-shelf and custom software written for the DOS and x86 environment, protecting software investments.Long-term availability and support: RADISYS is known for its long-term product lifecycle support, a critical factor for embedded systems that may be in the field for decades. The ​​SBC486DX66​​ was produced and available for a significantly longer period than commercial equivalents. This commitment from the manufacturer, combined with the board’s inherent durability, provides OEMs with the confidence that their products can be supported and maintained long after commercial alternatives have been obsoleted, reducing total cost of ownership.

Application Field

The ​​RADISYS SBC486DX66​​ was deployed across a wide spectrum of demanding industries. In industrial automation, it served as the core controller for PLCs, CNC machines, and robotic systems, where its deterministic performance and reliability were paramount. It is commonly found in legacy SCADA systems, process control units, and test and measurement equipment that are still in operation today.Within the medical technology sector, the ​​RADISYS SBC486DX66​​ was used in critical diagnostic and therapeutic devices such as ultrasound machines, patient monitors, and blood analyzers. Its reliability and long-term component availability were essential for medical equipment certification and support. The board also saw extensive use in military and aerospace applications (in extended temperature grades) for navigation systems, communication equipment, and vehicle control systems, where its ability to operate reliably in extreme conditions was a necessity. Furthermore, the ​​RADISYS SBC486DX66​​ was a common choice for telecommunications infrastructure, point-of-sale systems, and digital signage, demonstrating its versatility as a robust, general-purpose embedded computing platform.

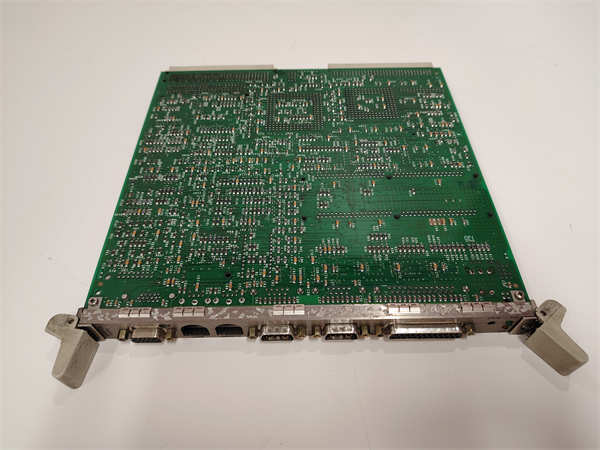

RADISYS SBC486DX66

Related Products

• ​​RADISYS SBC486DX50​​: A similar SBC from the same family but with a 50 MHz CPU.
• ​​RADISYS SBC386EX​​: A board based on the Intel 386EX processor, for lower-performance requirements.
• ​​RADISYS SBC5X86​​: A potential successor board using the AMD 5×86 processor for enhanced performance.
• ​​RADISYS PROTEUS SBC​​: A more modern family of SBCs from RADISYS, showcasing the evolution of their technology.
• ​​RADISYS PC/104 CPU Modules​​: Other CPU modules designed for the PC/104 form factor.
• ​​Intel 486 Microprocessor​​: The central processing unit that is the core of the ​​SBC486DX66​​.

Installation and Maintenance

Pre-installation preparation: Before installing the ​​RADISYS SBC486DX66​​, ensure proper ESD (electrostatic discharge) precautions are taken. Verify the correct voltage and polarity of the +5V power supply, as incorrect power can instantly destroy the board. Have the necessary system configuration details ready, such as the hard drive parameters (if booting from IDE) and the desired COM port settings. The board must be securely mounted to the carrier board or chassis using the provided standoffs to prevent short circuits and ensure mechanical stability.Maintenance recommendations: Maintenance for the ​​RADISYS SBC486DX66​​ is typically minimal but crucial. The most common point of failure in such legacy systems is the storage media (IDE hard disk) or the BIOS backup battery. Periodically check the health of the storage device and have a known-good disk image for recovery. If the board has a battery for BIOS settings, monitor it for signs of leakage and replace it proactively according to the manufacturer’s guidelines. Keep the board clean and free from dust buildup, and ensure adequate ventilation to prevent overheating. It is highly recommended to have a tested spare ​​RADISYS SBC486DX66​​ available to minimize system downtime in case of a failure.
