Description

The GE IS200AEPAH1AHD is a critical analog input module belonging to the renowned Mark VI series, specifically designed as an I/O Pack for the EX2100 excitation control system. This module serves as the vital sensory interface between the physical world of the turbine-generator set and the digital control intelligence of the EX2100 regulator. Its core function is to receive, isolate, and condition multiple low-level analog signals from field transducers—such as voltage, current, temperature, and pressure—converting them into high-precision digital data for the system’s central processor. As a dedicated component within the EX2100 platform, the IS200AEPAH1AHD is strategically positioned to ensure the highest levels of accuracy and reliability in monitoring key parameters that govern the excitation and stability of large generators.The value of the GE IS200AEPAH1AHD within the automation system is immense. It provides the foundational data necessary for complex control algorithms to maintain precise voltage regulation, manage reactive power flow, and implement comprehensive protection schemes for the generator. By offering high-density, isolated input channels, it reduces the need for external signal conditioning equipment, simplifying system architecture and enhancing overall reliability. The module is engineered to operate flawlessly in the electrically noisy environments typical of power generation plants, ensuring signal integrity is maintained under all operating conditions. The integration of the IS200AEPAH1AHD is therefore crucial for optimizing generator performance, ensuring grid stability, and preventing costly equipment damage.

Technical Specifications

Main Features and Advantages

The GE IS200AEPAH1AHD boasts several outstanding features that make it the preferred choice for critical excitation control applications. Its high-precision signal conditioning is paramount: the module utilizes high-quality components and advanced ADC technology to ensure minimal error in signal conversion, which is directly linked to the precise control of generator field current. Furthermore, each input channel is electrically isolated, preventing ground loops and rejecting high levels of electromagnetic interference (EMI). This robust design ensures that the data received by the EX2100 controller is accurate and reliable, even when the module is located near high-power equipment.Configuration and diagnostics are significantly simplified with the IS200AEPAH1AHD. The module can be easily configured using GE’s proprietary toolset (e.g., ToolboxST), allowing engineers to set parameters like input type, range, and scaling. Comprehensive diagnostic capabilities continuously monitor the health of the module itself and the status of the input signals, providing early warnings of potential faults such as wire breaks or signal out-of-range conditions. This proactive monitoring supports predictive maintenance strategies, reducing unplanned downtime. The hot-swappable design of the I/O packs in the EX2100 system allows for the IS200AEPAH1AHD to be replaced without powering down the entire control system, a critical feature for maximizing asset availability in continuous process industries like power generation.

Application Field

The primary application of the GE IS200AEPAH1AHD is in the field of power generation, where it is an integral component of turbine control systems. It is extensively used in gas turbine, steam turbine, and hydroelectric generator excitation systems. Within these systems, the IS200AEPAH1AHD is responsible for acquiring crucial operational data, including generator terminal voltage and current, field voltage and current, bearing temperatures, and various other process variables. This real-time data is essential for the EX2100 controller to execute automatic voltage regulation (AVR) and power system stabilizer (PSS) functions, ensuring the generator operates in synchronism with the power grid efficiently and stably.Beyond traditional power plants, the GE IS200AEPAH1AHD also finds applications in other industrial sectors requiring precise motor control and high-power conversion. This includes compressor drives in oil and gas pipelines, large fan and pump drives in mining and water treatment facilities, and test stands for large motors and generators. In all these scenarios, the module solves the fundamental problem of reliably interfacing a wide array of analog sensors to a high-speed digital control system. Its robustness and accuracy make it suitable for harsh environments where equipment must perform reliably for extended periods, supporting the core need for operational safety, efficiency, and availability in critical infrastructure.

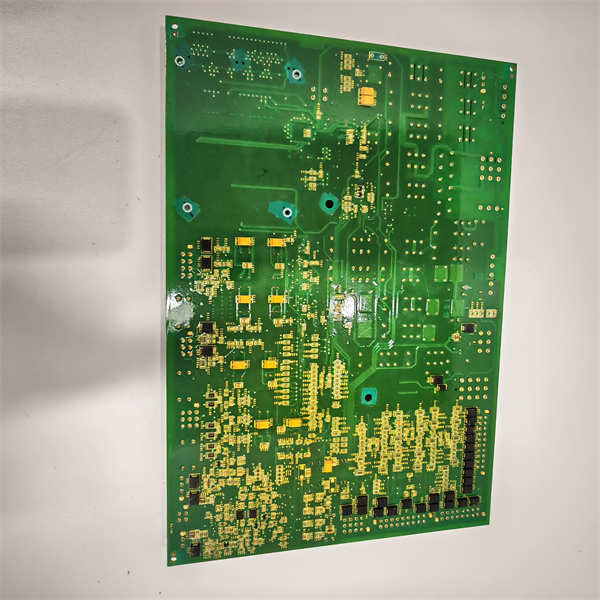

GE IS200AEPAH1AHD

Related Products

• IS200AEIAH1AHA: Another analog input module for the EX2100 system, often with different channel configurations or signal types, providing flexibility for specific application needs.

• IS200DSPXH1DBC: A DSP (Digital Signal Processor) board for the EX2100, which works in conjunction with I/O packs like the IS200AEPAH1AHD to execute control algorithms.

• IS200ERBG1AEB: An Ethernet gateway/redundancy board that provides network communication for the EX2100 rack, facilitating data exchange with higher-level control systems.

• IS200TBAIH1CCH: A terminal board assembly that provides the physical interface for field wiring to connect to the I/O packs like the IS200AEPAH1AHD.

• IS215UCVEM06A: A controller module from the Mark VIe series, representing the newer generation of GE control platforms, which can interface with similar I/O modules.

• IC693ALG392: A generic GE Fanuc series 90-30 analog input module, representing a different product line for PLC-based systems, contrasting with the integrated EX2100-specific design of the IS200AEPAH1AHD.

Installation and Maintenance

Pre-installation preparation: Before installing the GE IS200AEPAH1AHD, ensure the EX2100 rack is powered down and properly locked out/tagged out (LOTO) to prevent electrical hazards. Verify that the rack slot is compatible and clean. Have the necessary documentation, including the EX2100 system configuration and wiring diagrams, on hand. It is crucial to confirm that the module’s firmware version is compatible with the system software to avoid operational issues. Carefully inspect the IS200AEPAH1AHD for any signs of physical damage during transport.Maintenance recommendations: Regular maintenance for the IS200AEPAH1AHD primarily involves monitoring its status and diagnostics through the control system’s software interface. Periodically check for any fault indicators or alarm messages related to the module or its channels. Ensure the operating environment remains within the specified temperature and humidity ranges. Avoid exposing the module to excessive vibration or contamination. When handling the IS200AEPAH1AHD, always use proper electrostatic discharge (ESD) precautions to prevent damage to sensitive electronic components. Keep a certified spare module on hand to minimize downtime in the event of a failure.
