Description

The ​​Vibro-meter 200-560-000-113​​ and ​​200-560-101-017​​ represent the latest evolution of the ​​VM600 IOC4T​​ input/output communication modules, designed for precision signal acquisition in critical machinery protection applications. These advanced modules serve as the primary interface between field sensors and the VM600 processing system, ensuring accurate data collection for condition monitoring and protection functions. The ​​VM600 IOC4T​​ system embodies Vibro-meter’s commitment to providing reliable signal conditioning solutions for rotating equipment across various industrial sectors including power generation, oil and gas, and heavy manufacturing.As integral components of the VM600 platform, the ​​IOC4T​​ modules provide sophisticated signal conditioning capabilities for multiple sensor types. The ​​200-560-000-113​​ variant offers specific enhancements in signal processing, while the ​​200-560-101-017​​ provides complementary functionality to create a complete monitoring solution. Together, these ​​VM600 IOC4T​​ modules enable comprehensive machinery health monitoring, delivering exceptional performance in the most demanding industrial environments where measurement accuracy and reliability are paramount.

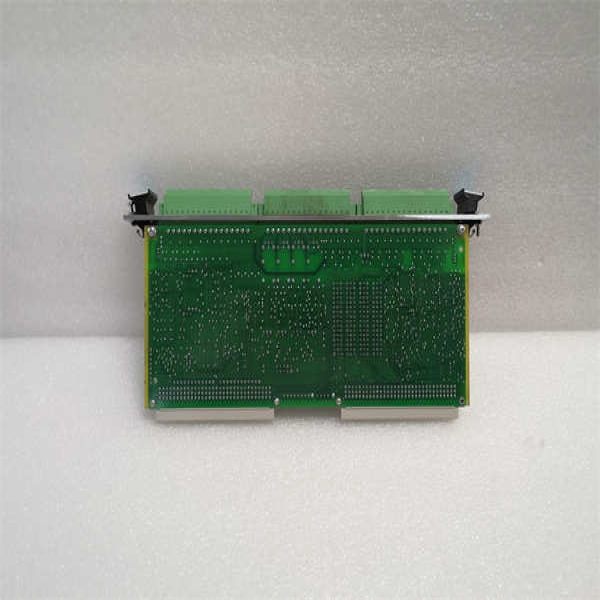

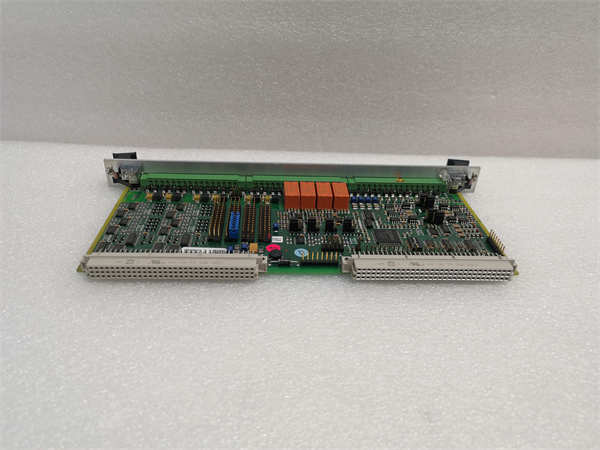

Vibro-meter 200-560-000-113 200-560-101-017 VM600 IOC4T

Technical Specifications

Main Features and Advantages

Advanced Signal Processing Capability: The ​​Vibro-meter VM600 IOC4T​​ modules incorporate high-precision 24-bit analog-to-digital converters that ensure exceptional signal resolution across the entire measurement range. The ​​200-560-000-113​​ variant features enhanced filtering algorithms that provide superior noise rejection while maintaining signal integrity. Advanced anti-aliasing filters prevent signal distortion, ensuring accurate representation of high-frequency vibration components critical for early fault detection in high-speed rotating equipment.Enhanced Configuration Flexibility: The ​​200-560-101-017​​ module complements the ​​200-560-000-113​​ by providing expanded configuration options and compatibility with an extended range of sensor types. Each channel can be independently configured through intuitive software for various signal types including accelerometers, proximitors, thermocouples, and RTDs. This flexibility allows for customized monitoring solutions without requiring hardware modifications, significantly reducing system complexity and maintenance requirements while ensuring optimal performance across diverse application scenarios.Robust Design for Extreme Environments: Both modules feature comprehensive isolation and protection circuits that ensure reliable operation in electrically noisy industrial environments. Channel-to-channel isolation prevents cross-talk and ground loops, while integrated surge protection safeguards against voltage transients. The modules’ extended operating temperature range (-40°C to +85°C) and robust construction make them suitable for installation in the most challenging environments from Arctic applications to desert conditions.

Application Field

In combined cycle power plants, the ​​Vibro-meter VM600 IOC4T​​ system with ​​200-560-000-113​​ and ​​200-560-101-017​​ modules monitors critical gas and steam turbine parameters. The system acquires high-resolution data from vibration sensors on turbine bearings, position sensors on rotor systems, and temperature sensors throughout the turbine train. The enhanced sampling capability of these specific modules captures subtle changes in vibration patterns, enabling early detection of blade passing frequency modulation that indicates potential compressor stall conditions, thereby preventing catastrophic failures and ensuring continuous power generation.In offshore oil production platforms, the ​​VM600 IOC4T​​ modules provide essential monitoring for critical gas compression equipment. The ​​200-560-101-017​​ module’s expanded compatibility with various sensor types allows for comprehensive monitoring of compressor vibration, bearing temperatures, and seal gas pressures. The system’s robust design withstands the challenging marine environment while maintaining measurement accuracy critical for reliable compressor operation and safety system performance, ensuring uninterrupted production in remote offshore locations.

Related Products

• ​​Vibro-meter VM600 MPC4​​: Main processor module for complete system integration
• ​​Vibro-meter VM600 SMC4​​: Sensor interface module for additional signal types
• ​​Vibro-meter VM600 RMC4​​: Relay output module for protection functions
• ​​Vibro-meter Proximitor Sensors​​: For position and vibration measurement
• ​​Vibro-meter Seismic Sensors​​: For casing vibration monitoring
• ​​Vibro-meter Cable Assemblies​​: For reliable sensor connections
• ​​Vibro-meter Configuration Software​​: For system setup and monitoring
• ​​Vibro-meter VM600 IOC4​​: Basic version of I/O communication module
