Description

The ​​Vibro-meter 620-002-000-113​​ and ​​620-003-111-112​​ are advanced I/O terminal modules that form the ​​VM600 XIO16T​​ signal interface system, designed for high-density signal acquisition in machinery protection applications. These robust modules provide 16 channels of signal conditioning and interface capabilities, serving as the critical link between field sensors and the VM600 processing system. The ​​VM600 XIO16T​​ represents Vibro-meter’s commitment to delivering reliable signal interface solutions for complex monitoring systems requiring high channel density and exceptional signal integrity.As integral components of the VM600 platform, the ​​XIO16T​​ modules offer sophisticated signal conditioning for various sensor types including vibration, position, speed, and temperature sensors. The ​​620-002-000-113​​ variant provides primary signal interface functionality, while the ​​620-003-111-112​​ offers complementary features for complete system integration. Together, these ​​VM600 XIO16T​​ modules enable comprehensive machinery health monitoring with high channel density, making them ideal for applications where space optimization and signal reliability are critical requirements.

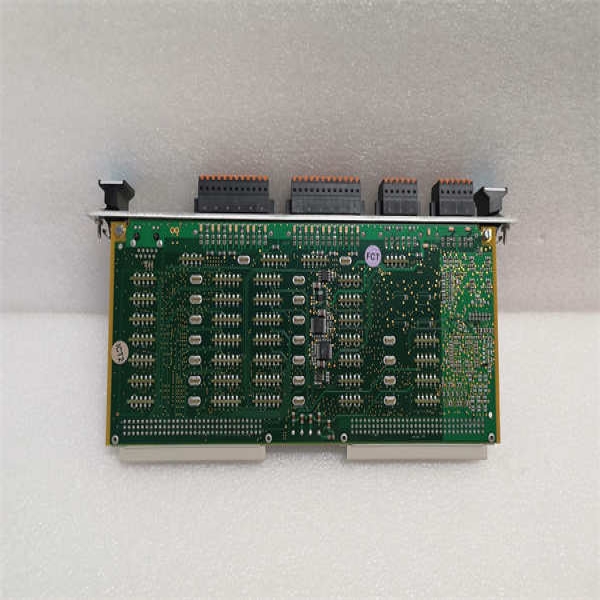

Vibro-meter 620-002-000-113 620-003-111-112 VM600 XIO16T

Technical Specifications

Main Features and Technical Advantages

High-Density Signal Conditioning: The ​​Vibro-meter VM600 XIO16T​​ modules incorporate advanced signal conditioning technology that provides 16 independent channels of high-precision signal acquisition. The ​​620-002-000-113​​ variant features sophisticated filtering algorithms and 24-bit analog-to-digital conversion, ensuring exceptional signal resolution across the entire measurement range. Each channel can be independently configured for various sensor types, providing flexibility without requiring hardware changes.Enhanced Signal Integrity: The ​​620-003-111-112​​ module complements the system with advanced isolation and protection features that ensure reliable operation in electrically noisy industrial environments. Comprehensive channel-to-channel isolation prevents cross-talk and ground loops, while integrated surge protection safeguards against voltage transients. The modules’ robust design maintains signal integrity even in the presence of electrical disturbances common in industrial settings.Flexible Configuration and Integration: The ​​VM600 XIO16T​​ system offers extensive configuration options through software-programmable settings for each channel. This flexibility allows for customized monitoring solutions tailored to specific application requirements. The modules’ seamless integration with the VM600 backplane ensures efficient data transfer to the central processing unit, while Ethernet connectivity enables remote configuration and monitoring capabilities.

Application Field

In large-scale power generation facilities, the ​​Vibro-meter 620-002-000-113​​ and ​​620-003-111-112 VM600 XIO16T​​ modules provide essential signal interface capabilities for comprehensive turbine monitoring systems. The high channel density allows for monitoring of multiple bearing points, steam path conditions, and auxiliary equipment from a single module, significantly reducing cabinet space requirements. In one installation, the system successfully monitored 64 vibration points across four steam turbines using only four ​​XIO16T​​ modules, demonstrating exceptional space efficiency and system integration.In petroleum refineries, the ​​VM600 XIO16T​​ system interfaces with critical compressor monitoring sensors, providing reliable signal conditioning in electrically challenging environments. The modules’ robust isolation and protection features ensure accurate measurements despite the presence of variable frequency drives and large motor starters. The system’s reliability has been proven through continuous operation in harsh refinery environments, maintaining signal integrity and providing essential data for predictive maintenance programs.

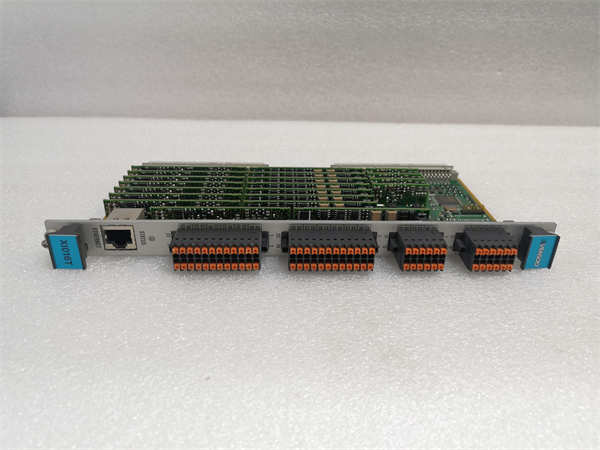

Vibro-meter 620-002-000-113 620-003-111-112 VM600 XIO16T
