Description

The ProSoft 5304-MBP-PDPM is a high-performance PROFIBUS DP master communication module specifically designed for integration with Allen-Bradley ControlLogix programmable automation controllers. This advanced communication interface enables seamless data exchange between Rockwell Automation ControlLogix systems and PROFIBUS DP field devices, bridging the gap between different industrial network protocols. The 5304-MBP-PDPM represents ProSoft Technology’s commitment to providing reliable network integration solutions for complex industrial automation systems requiring multi-vendor device connectivity.As a specialized communication module, the 5304-MBP-PDPM installs directly into the ControlLogix backplane, providing native integration with the Logix5000 programming environment. The module operates as a PROFIBUS DP master, allowing ControlLogix processors to communicate with a wide range of PROFIBUS slaves including drives, I/O systems, and other field devices. This capability significantly expands the connectivity options for ControlLogix-based automation systems, enabling comprehensive system integration while maintaining the reliability and performance standards expected in industrial environments.

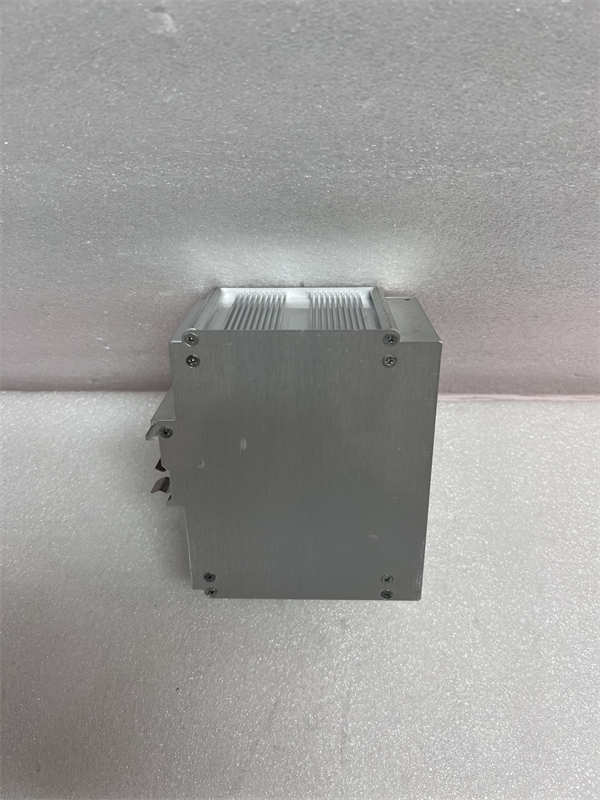

ProSoft 5304-MBP-PDPM

Technical Specifications

Main Features and Technical Advantages

Seamless ControlLogix Integration: The ProSoft 5304-MBP-PDPM provides native integration with the ControlLogix platform, appearing as another module in the Logix5000 project. This seamless integration allows engineers to configure the PROFIBUS network using familiar Rockwell Software tools, with the module’s configuration fully integrated into the controller project. Data exchange occurs through produced/consumed tags and direct I/O mapping, ensuring efficient and deterministic communication between the PROFIBUS network and the ControlLogix processor.Advanced Network Management: The module features comprehensive PROFIBUS DP master functionality, supporting both cyclic and acyclic data exchange with slave devices. The 5304-MBP-PDPM automatically detects and configures PROFIBUS slave devices using GSD files, simplifying network setup and maintenance. Advanced diagnostic capabilities include detailed status information for each slave device, network statistics, and error logging, enabling quick troubleshooting and maintenance of the PROFIBUS network.Robust Performance and Reliability: Designed for industrial environments, the 5304-MBP-PDPM features electrical isolation and surge protection on the PROFIBUS interface, ensuring reliable operation in electrically noisy conditions. The module’s robust construction and wide operating temperature range make it suitable for installation in control cabinets alongside other industrial equipment. Redundant power supply support and module-level diagnostics contribute to high system availability and reduced maintenance requirements.

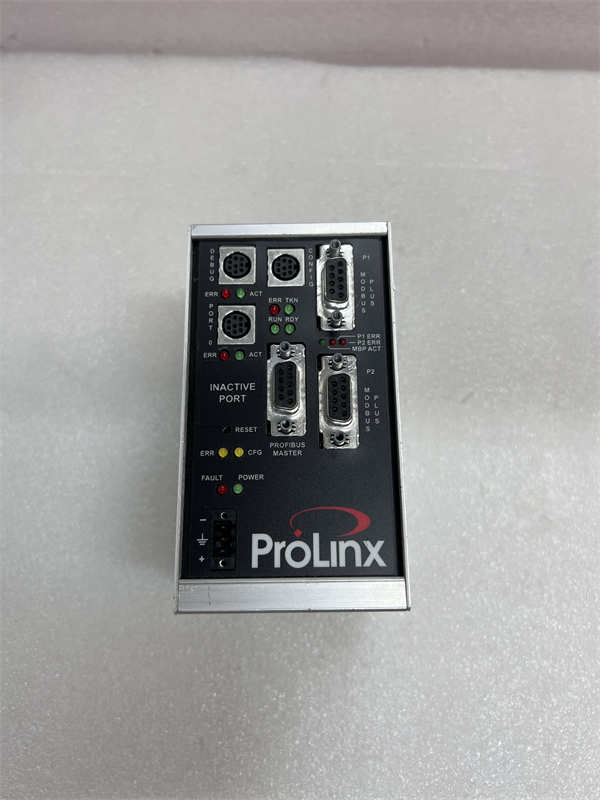

ProSoft 5304-MBP-PDPM

Application Field

In automotive manufacturing plants, the ProSoft 5304-MBP-PDPM enables integration between ControlLogix-based main control systems and PROFIBUS-connected robotic workcells and drive systems. The module allows the central ControlLogix processor to directly communicate with PROFIBUS slaves such as frequency drives, I/O stations, and sensor arrays, ensuring synchronized operation of the entire production line. This integration has proven essential for maintaining production efficiency and enabling real-time monitoring of equipment status across the manufacturing facility.In water treatment facilities, the 5304-MBP-PDPM serves as the communication bridge between ControlLogix-based SCADA systems and PROFIBUS-connected field devices including flow meters, analytical instruments, and variable frequency drives. The module’s reliable performance ensures continuous data exchange for process control and monitoring, while its diagnostic capabilities help maintenance teams quickly identify and resolve network issues, minimizing system downtime and ensuring treatment process continuity.

Related Products

• ProSoft 5305-MBP-DPIM: PROFIBUS DP slave module for ControlLogix

• ProSoft 5300-MCM: Modbus communication module for ControlLogix

• ProSoft 5300-DFM: DeviceNet master module for ControlLogix

• ProSoft 5300-ECH: EtherCAT master module for ControlLogix

• ProSoft 5300-ENET: Ethernet/IP communication module

• ProSoft GSD Files: Configuration files for PROFIBUS devices

• ProSoft Configuration Tools: Additional software utilities
