Description

The ​​Watlow CAS200 AnaFE​​ is a high-end, compact temperature controller designed for applications demanding exceptional accuracy and sophisticated control algorithms. As part of Watlow’s renowned CAS (Compact Autonomous System) series, the ​​Watlow CAS200 AnaFE​​ functions as a fully autonomous control unit, integrating a high-precision analog front end for accurate sensor input, a powerful processor, and a configurable output all within a single, rugged package. Its core mission is to provide precise and stable temperature regulation for critical thermal processes, often in space-constrained or harsh industrial environments. The ​​Watlow CAS200 AnaFE​​ is engineered to simplify complex control tasks, offering advanced features like auto-tuning, multi-segment profiling, and comprehensive communication capabilities right out of the box.This controller is strategically positioned for OEMs and end-users who require more performance than a standard temperature controller can offer but do not need the larger footprint of a modular PLC-based system. The value of the ​​Watlow CAS200 AnaFE​​ lies in its ability to deliver “set-it-and-forget-it” reliability, reducing engineering time and ensuring consistent process results. By handling complex PID control loops internally, it offloads the burden from a central PLC, enhancing overall system responsiveness and reliability. Its compact design and robust construction make the ​​Watlow CAS200 AnaFE​​ a versatile solution for integrating directly into machinery and equipment.

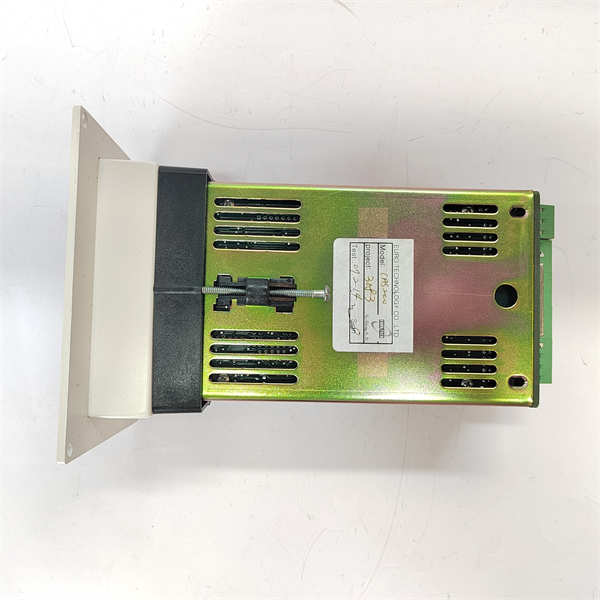

CAS200 WATLOW ANAFAZE

Technical Specifications

Main Features and Advantages

The ​​Watlow CAS200 AnaFE​​ stands out due to its exceptional measurement accuracy and sophisticated control capabilities. The “AnaFE” (Analog Front End) designation signifies a high-resolution input section that minimizes signal noise and provides highly accurate readings from a wide variety of temperature sensors and analog signals. This ensures that the control decisions made by the ​​Watlow CAS200 AnaFE​​ are based on the most reliable data possible, a fundamental requirement for precise thermal management.Advanced control and flexibility: The controller is equipped with a powerful 32-bit processor that executes complex PID algorithms with features like fuzzy logic and adaptive gain. This allows the ​​Watlow CAS200 AnaFE​​ to effectively control processes with non-linear characteristics or long lag times. Its support for multi-segment setpoint ramping and soaking makes it ideal for applications like plastic molding, heat treating, and chemical reaction control where temperature profiles are critical.Seamless integration is another key advantage. With built-in industrial Ethernet protocols like Ethernet/IP and Modbus TCP/IP, the ​​Watlow CAS200 AnaFE​​ can be easily integrated into modern automation architectures, allowing for centralized monitoring, data logging, and remote setpoint changes from a SCADA or DCS system. This combination of high-performance standalone control and easy connectivity makes the ​​Watlow CAS200 AnaFE​​ a highly versatile and cost-effective solution.

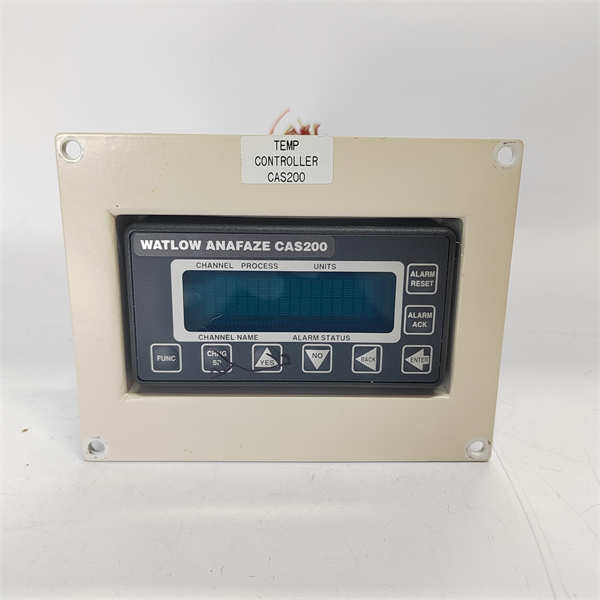

CAS200 WATLOW ANAFAZE

Application Field

The ​​Watlow CAS200 AnaFE​​ is ideally suited for a wide range of industries where precise and reliable temperature control is a critical factor in product quality and process efficiency. In the semiconductor industry, it is used to control the temperature of wafer processing equipment, chemical vapor deposition chambers, and photoresist modules, where even minor temperature fluctuations can compromise product yield. The high accuracy of the ​​Watlow CAS200 AnaFE​​ is essential in these ultra-precise environments.In plastics processing, the controller manages barrel and mold temperatures in injection molding machines and extruders, ensuring consistent material viscosity and final part dimensions. The ​​Watlow CAS200 AnaFE​​’s ability to execute complex ramp/soak profiles is heavily utilized in heat treatment furnaces for aerospace and automotive components, guaranteeing that metallurgical properties meet strict specifications. Furthermore, it finds extensive use in life sciences for controlling temperatures in bioreactors, environmental chambers, and sterilization equipment, where validation and repeatability are paramount. The robustness of the ​​Watlow CAS200 AnaFE​​ also makes it suitable for industrial heating systems, packaging machinery, and food processing equipment, providing a reliable thermal control solution across the manufacturing landscape.

Related Products

• ​​Watlow CAS200 DInR​​: A digital input/output version of the CAS200, designed for applications requiring discrete state monitoring and control alongside temperature regulation.
• ​​Watlow F4T​​: A versatile touchscreen process controller offering a larger display and enhanced recipe management, suitable as an upgrade or for more complex user interaction.
• ​​Watlow EZ-ZONE® ST​​: A compact, powerful temperature and power controller, often considered for similar applications but with a different form factor and feature set.
• ​​Watlow PM Series​​: A highly modular PCI Express-based controller for extremely high-density and complex multi-loop control systems, representing a step-up in scalability.
• ​​Watlow SENSORLYNX®​​: A networked sensor management system, which can be used in conjunction with the ​​CAS200 AnaFE​​ for comprehensive thermal and process monitoring.
• ​​Watlow POWER CONTROLLERS​​: Such as the PWR Series, which are often the power switching devices driven by the control output of the ​​CAS200 AnaFE​​.
