Description

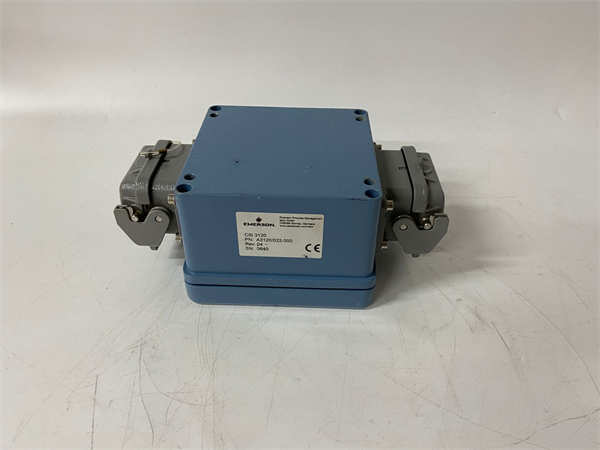

The EMERSON A3120022-000 is a critical Vibration Input/Output (I/O) Module integral to the Emerson CSI 6500 Machinery Health Monitoring System. This module serves as a sophisticated signal conditioning and interface unit, designed to bridge the gap between raw vibration sensors and the system’s central processing resources. Its primary function is to accept inputs from a variety of transducers, including accelerometers, proximity probes, and velometers, conditioning these signals for accurate analysis and relay. The EMERSON A3120022-000 is engineered to provide reliable, continuous monitoring of key mechanical parameters such as vibration, speed, and position, which are vital for detecting imbalances, misalignments, bearing wear, and other common faults in rotating assets.

As a dedicated I/O pack within the modular CSI 6500 framework, the EMERSON A3120022-000 plays a pivotal role in converting analog sensor data into digital information that can be used for real-time protection, advanced diagnostics, and predictive maintenance analytics. Its value lies in its high channel density and robust design, which allow for the cost-effective monitoring of multiple points on a single machine or across several smaller machines. By ensuring the integrity of the signal path from sensor to system, the EMERSON A3120022-000 enables plant operators and reliability engineers to make informed decisions, preventing unexpected downtime and protecting high-value capital equipment like turbines, compressors, and pumps from catastrophic failure.

EMERSON A3120022-000

Technical Specifications

Main Features and Advantages

The EMERSON A3120022-000 offers several standout features that make it a superior choice for industrial machinery protection. A key advantage is its versatile signal conditioning capability. It can be configured to support a wide range of vibration sensors, eliminating the need for multiple, specialized input modules and simplifying both system design and spare parts inventory. This module provides the necessary power to the connected sensors and performs initial signal processing, such as converting acceleration to velocity, ensuring that clean, accurate data is delivered to the system’s monitoring modules for analysis.

Enhanced reliability and integrated diagnostics: Built to withstand the electrical noise and environmental challenges of plant floors, the EMERSON A3120022-000 ensures data integrity for critical protection decisions. It features advanced diagnostics that continuously check the health of the connected sensor loops, alerting operators to issues like sensor failure, cable breaks, or short circuits. This “OK/Not OK” monitoring is essential for preventing false alarms and, more importantly, for avoiding dangerous missed alarms. The seamless integration of the EMERSON A3120022-000 within the CSI 6500 system creates a cohesive and highly reliable monitoring solution, maximizing asset availability and providing a strong foundation for any predictive maintenance program.

Application Field

The EMERSON A3120022-000 is extensively applied in industries where the continuous and reliable operation of critical rotating machinery is directly tied to production, safety, and profitability. In the oil and gas sector, it is a fundamental component for monitoring large turbo-machinery such as gas turbines for power generation, centrifugal and reciprocating compressors in LNG facilities and pipelines, and large pumps. The data it provides is crucial for preventing unplanned shutdowns that can result in massive financial losses. In the power generation industry, both in traditional thermal plants and in renewable sectors like biomass, the EMERSON A3120022-000 is used to protect steam turbines, generators, and critical fans and boiler feed pumps.

Furthermore, this module finds critical application in other heavy process industries, including petrochemicals, where it monitors reactors and large mixers, and in water and wastewater treatment for critical pump and blower assets. Its robust design makes it suitable for harsh environments often found in these industries, including areas with wide temperature variations and significant electromagnetic interference. For any facility employing a CSI 6500 system for its machinery health strategy, the EMERSON A3120022-000 I/O module is an essential component for gathering the high-fidelity data needed to enable condition-based maintenance and ensure operational integrity.

EMERSON A3120022-000

Related Products

EMERSON CSI 6500 Machinery Health Monitor: The main system frame or processing unit that the A3120022-000 module integrates with.

EMERSON 144629-01: Often a related power supply or communication module for the CSI 6500 system.

EMERSON A3120021-000: A different I/O or communication module within the same family, potentially serving complementary functions.

EMERSON A6500-AT: A specialized turbine supervisory module that may use inputs from the A3120022-000.

BENTLY NEVADA 3500/42M: A functionally similar proximityitor/seismic monitor from a competing product line, often used for comparison.

EMERSON Vibration Transmitters & Probes: Such as the AMS 2140 or various proximity probes, which are the field sensors that connect to the A3120022-000.

EMERSON CDI 5200 HART Communicator: A field device that can be used for configuration and diagnostics of smart sensors connected to the system.
