Description

The GPIB-140A NI from National Instruments is a high-performance Ethernet-to-GPIB controller, a crucial device designed to seamlessly integrate traditional IEEE 488 instruments into modern networked systems. It functions as a transparent bridge, allowing engineers to control and communicate with GPIB (General Purpose Interface Bus) equipment over a standard Ethernet network. The core value of the GPIB-140A NI lies in its ability to extend the operational range of the GPIB bus far beyond its traditional 20-meter cable limit, enabling remote configuration, data acquisition, and monitoring from anywhere on the network. This device is a key component in the National Instruments modular instrument connectivity strategy, positioning itself as an indispensable tool for modernizing and future-proofing test and measurement setups.

By translating GPIB commands into TCP/IP packets and vice versa, the GPIB-140A NI effectively makes a legacy instrument appear as a node on a Local Area Network (LAN). This capability is invaluable for creating distributed test systems, centralizing data management, and integrating standalone instruments into automated test sequences controlled by a remote PC. The GPIB-140A NI preserves the significant investment companies have made in high-quality GPIB instruments while allowing them to benefit from the flexibility, scalability, and long-distance capabilities of Ethernet connectivity. Its role is to eliminate the physical constraints of the GPIB bus, thereby unlocking new possibilities for system architecture and operational efficiency in R&D, validation, and production test environments.

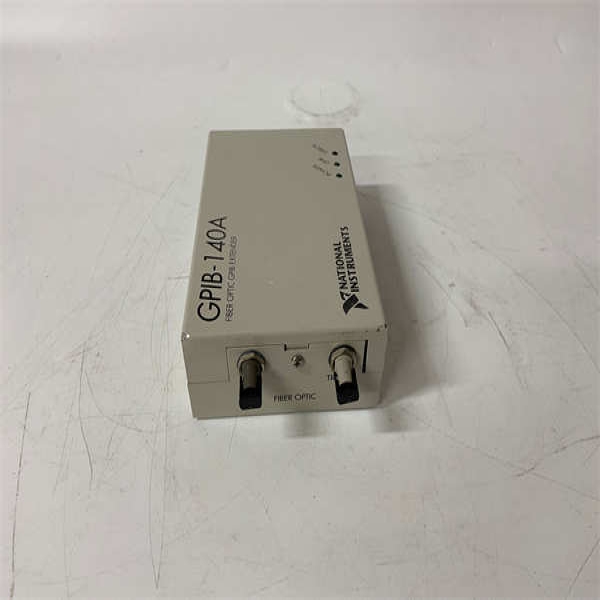

NI GPIB-140A

Technical Specifications

Main Features and Advantages

Transparent Network Integration: The most significant feature of the GPIB-140A NI is its transparent operation. It allows existing application software, such as NI LabVIEW, NI-488.2, and other programming environments that use standard GPIB APIs, to communicate with remote instruments without any code modification. The system recognizes the GPIB-140A NI as a standard GPIB interface board, making migration to a networked solution incredibly straightforward and cost-effective.

High-Performance and Reliable Communication: This gateway is engineered to handle sustained high-speed data transfers, such as reading large waveforms from oscilloscopes or spectrum analyzers, at rates up to 1 Mbyte/s. The built-in intelligence of the GPIB-140A NI manages the GPIB bus handshaking and timing with precision, ensuring reliable communication with even the most timing-sensitive instruments. Its robust design ensures stable operation in noisy industrial or laboratory environments, preventing data corruption and communication timeouts.

Simplified System Management and Multi-User Access: The GPIB-140A NI can be easily discovered and configured using NI’s Measurement & Automation Explorer (MAX) software. It supports the VXI-11 network protocol, an open standard for instrument discovery. A key advantage is its ability to facilitate shared access; multiple users or applications on the network can potentially access different instruments connected to a single GPIB-140A NI, optimizing resource utilization. This transforms a collection of standalone instruments into a shared, networked resource for an entire team or department.

Application Field

The GPIB-140A NI is extensively used in any field that relies on automated test and measurement systems incorporating legacy GPIB instruments. Its primary role is to modernize data acquisition and instrument control without requiring a complete overhaul of valuable existing equipment.

In Research and Development laboratories, the GPIB-140A NI is deployed to create flexible test benches where engineers can control instruments from their desks or collaborate with colleagues in different labs by sharing access to a centralized instrument rack. In Aerospace and Defense manufacturing, it is used in large-scale functional test rigs where the control PC must be located a significant distance from the test article and the surrounding measurement instruments, overcoming the severe length limitations of standard GPIB cables.

Furthermore, the GPIB-140A NI finds critical application in Electronics Manufacturing for board-level and system-level testing. It allows production test systems to be centrally managed while the instrument racks are placed close to the test fixtures on the factory floor. It is also invaluable in Automotive validation testing and Semiconductor characterization, where systems are often distributed across multiple chambers or rooms. By using the GPIB-140A NI, companies can integrate decades-old, yet still highly accurate, GPIB instruments into modern, data-driven Industry 4.0 workflows.

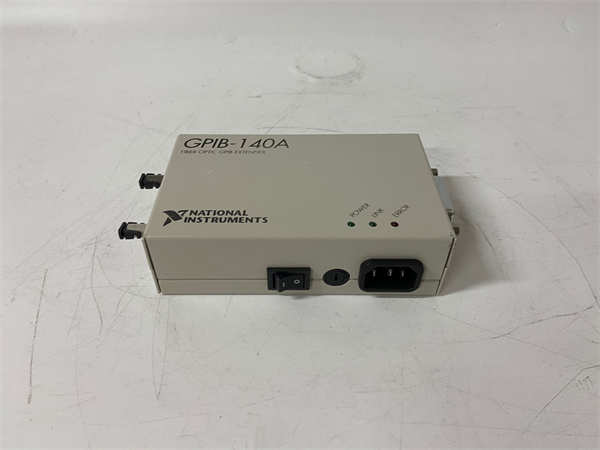

NI GPIB-140A

Related Products

NI GPIB-140B: The likely successor or updated version of the GPIB-140A, potentially offering enhanced features or performance.

NI PCI-GPIB: A PCI bus-based GPIB interface card for installing directly into a desktop PC.

NI PXI-GPIB: A GPIB controller module designed for the PXI modular instrument platform.

NI USB-GPIB: A portable GPIB controller that connects to a computer via a USB interface.

NI GPIB-120A: A GPIB extender used to increase the cable length between the controller and instruments using fiber optics.

NI GPIB-ENET: Another model in NI’s family of Ethernet-GPIB controllers, offering similar functionality.

Agilent E5810A: A competing Ethernet-GPIB gateway from Keysight (formerly Agilent), serving the same market need.
