Description

The Bently Nevada 3500/45 is a critical safety component within the renowned 3500 Machinery Monitoring System, functioning as a Relay Interface Module (RIM). Its primary role is to act as the decisive link between the monitoring system’s alarm logic and the plant’s safety shutdown systems. When other monitoring modules in the 3500 rack, such as vibration, speed, or position monitors, detect a dangerous machine condition, they send a signal to the Bently Nevada 3500/45. This module then physically activates its internal electromechanical relays to initiate a protective action, most commonly a machine shutdown (trip), but it can also be used to start auxiliary equipment or trigger secondary alarms. The Bently Nevada 3500/45 is engineered to be the final, reliable execution point in the safety chain, preventing catastrophic machinery damage and ensuring personnel safety.

Designed to occupy a single slot in the 3500 rack, the module seamlessly communicates with other frames via the backplane, receiving its power and configuration from the system. It features four independent, Form C relay channels, each capable of being configured for different functions and voting logic. This modular and flexible design allows plant engineers to tailor the safety response to the specific criticality of the protected machinery. The inherent reliability and fail-safe design principles of the Bently Nevada 3500/45 make it an indispensable asset in any high-stakes industrial environment where equipment failure is not an option.

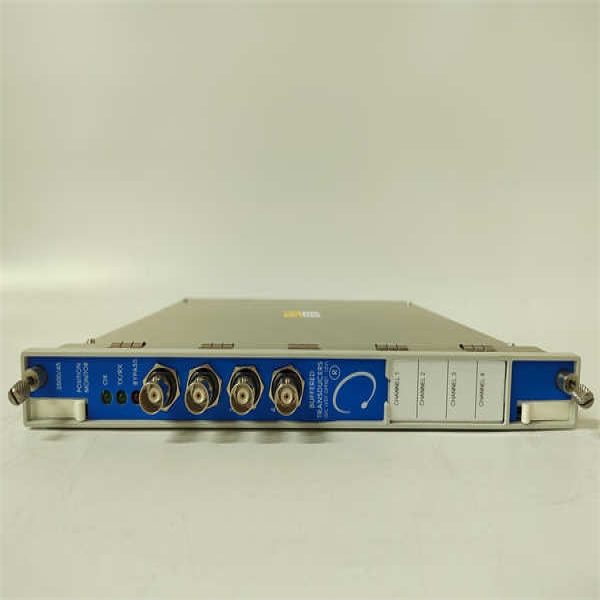

BENTLY NEVADA 3500/45

Technical Specifications

Main Features and Advantages

The Bently Nevada 3500/45 is defined by its robust features that prioritize safety and operational flexibility. A cornerstone of its design is the implementation of configurable voting logic, such as 1-out-of-2 or 2-out-of-2, for each relay channel. This is critical for preventing nuisance trips while maintaining a high level of protection. For instance, in a 2-out-of-2 configuration, two separate sensors must agree on a dangerous condition before the Bently Nevada 3500/45 will activate the shutdown, significantly enhancing system reliability.

Independent and Versatile Relay Channels: Each of the four relays in the Bently Nevada 3500/45 is fully independent, with Form C contacts (Normally Open, Normally Closed, and Common). This allows a single module to perform multiple functions simultaneously—one relay might be wired to trip the main turbine, another to activate a backup lube oil pump, and a third to signal a control room alarm. The high-capacity relay contacts can directly drive substantial loads, simplifying interface design by often eliminating the need for intermediate relays.

Enhanced Diagnostics and Safety: The module provides comprehensive front-panel LED indicators that clearly show the status of each channel (Normal, Alert, Danger, Bypassed, or Fault). This immediate visual feedback is invaluable for operators and maintenance personnel. Furthermore, the Bently Nevada 3500/45 continuously self-monitors its internal health. In the event of a module failure or loss of power, the relays are designed to de-energize to their fail-safe state, ensuring that a system fault cannot inhibit a critical shutdown command from reaching the machinery. This fail-safe philosophy is at the core of the Bently Nevada 3500/45‘s value proposition.

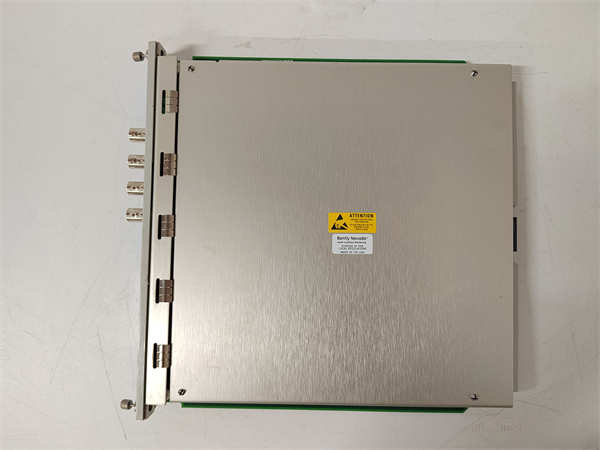

BENTLY NEVADA 3500/45

Application Field

The Bently Nevada 3500/45 is deployed across a vast spectrum of industries where the protection of high-value, critical rotating equipment is non-negotiable. Its primary application is in the realm of safety shutdown systems for large turbomachinery.

In the Power Generation sector, whether in nuclear, fossil-fuel, or combined-cycle plants, the Bently Nevada 3500/45 is universally used to protect steam turbines, gas turbines, and generators. It takes the trip signals from vibration, eccentricity, and speed monitors and directly interfaces with the turbine’s emergency trip solenoid to halt the unit before damage can occur. Similarly, in the Oil & Gas industry, the module is essential for protecting centrifugal and reciprocating compressors on offshore platforms and in refineries, as well as large pipeline pumps.

Beyond these core areas, the Bently Nevada 3500/45 finds critical use in other heavy industries such as Petrochemical plants, where it safeguards reaction compressor trains, and in the Marine industry for protecting propulsion turbines. In every application, the Bently Nevada 3500/45 solves the fundamental problem of converting an electronic alarm signal into a definitive, physical action. It ensures that the sophisticated monitoring and analysis performed by the Bently Nevada 3500 system result in a tangible, failsafe response, thereby mitigating financial loss from equipment damage and preventing potential safety incidents.

Related Products

BENTLY NEVADA 3500/15: Proximitor® Seismic Transducer, which provides the raw vibration and position data that can ultimately lead to a trip signal handled by the 3500/45.

BENTLY NEVADA 3500/25: Keyphasor® Module, essential for providing a once-per-revolution timing reference, which is used by monitoring modules to condition signals for the 3500/45.

BENTLY NEVADA 3500/32: 4-Channel Vibration Monitor, a key module that processes vibration signals and can send alert and danger commands to the 3500/45.

BENTLY NEVADA 3500/92: Communication Gateway, which allows the entire 3500 system, including the 3500/45, to interface with plant DCS and asset management software.

BENTLY NEVADA 3500/22M: Transient Data Interface Module, which works alongside the 3500/45 by capturing detailed data around the time of a trip event for forensic analysis.
