Description

The Kollmorgen S72402-NANANA is a high-performance, fully digital servo drive belonging to the acclaimed AKD (Automation Drive by Kollmorgen) series. As a fundamental component in modern motion control systems, this drive acts as the intelligent intermediary between a machine controller and a servo motor, precisely regulating torque, velocity, and position. The core function of the Kollmorgen S72402-NANANA is to convert incoming AC line power into precisely controlled AC power for the servo motor, enabling complex motion profiles with exceptional accuracy and repeatability. Designed for engineers and machine builders, the Kollmorgen S72402-NANANA offers a blend of high performance and remarkable ease of use, reducing development time and accelerating time-to-market for advanced machinery.

Part of the versatile AKD platform, the Kollmorgen S72402-NANANA embodies a “basic drive” configuration, providing all essential servo control functions in a compact form factor. Its value lies in its ability to deliver premium motion performance—such as minimal settling time and superior disturbance rejection—without the complexity often associated with high-end drives. The drive is engineered to work seamlessly with the entire family of Kollmorgen servo motors, creating a perfectly optimized motion system. By integrating the Kollmorgen S72402-NANANA, OEMs can achieve higher machine throughput, improved product quality, and enhanced reliability, making it a cornerstone for building competitive and high-performing industrial equipment.

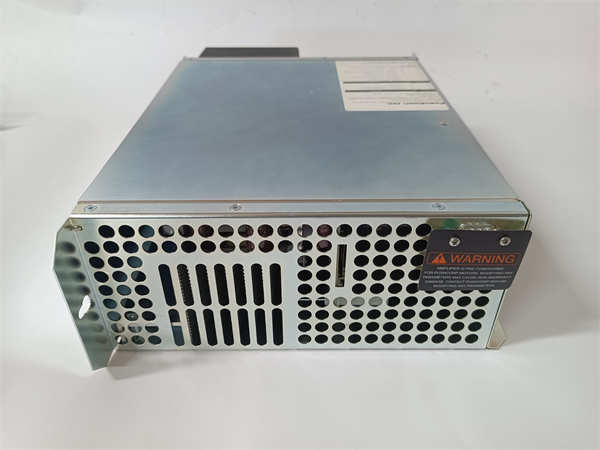

Kollmorgen S72402-NANANA AKD

Technical Specifications

Main Features and Advantages

The Kollmorgen S72402-NANANA is packed with features that deliver distinct advantages in demanding automation environments. Its standout characteristic is the exceptional performance-to-size ratio. Despite its compact dimensions, it delivers a robust 2.4A continuous current, making it a powerful yet space-efficient solution for control panels where real estate is at a premium.

Unmatched ease of use and integration: A significant advantage of the Kollmorgen S72402-NANANA is its user-friendly setup process. The drive is configured using Kollmorgen’s WorkBench software, which provides an intuitive graphical interface for quick startup, automated tuning, and comprehensive diagnostics. This drastically reduces commissioning time and the need for deep servo expertise. Furthermore, its modular communication architecture is a key benefit. While it comes with standard I/O, the Kollmorgen S72402-NANANA can be easily equipped with a plug-in fieldbus module (such as EtherCAT, PROFINET, or Ethernet/IP), allowing for seamless integration into virtually any higher-level control system without requiring a different drive model.

Advanced tuning and robust construction: The drive incorporates advanced control algorithms, including automatic tuning that adapts to changing load conditions, ensuring optimal performance throughout the machine’s lifecycle. This results in smoother motion, higher accuracy, and better product quality. The Kollmorgen S72402-NANANA is built to withstand the rigors of industrial use, featuring a design that is resistant to vibration and capable of operating in a wide temperature range, guaranteeing long-term reliability and minimizing downtime.

Application Field

The Kollmorgen S72402-NANANA finds its primary application in industries that demand high-speed, high-precision, and highly dynamic motion control. In the packaging machinery sector, it is the driving force behind tasks like flying cutters, fillers, and wrapper systems, where precise synchronization of multiple axes is critical for efficiency and reducing material waste. The high performance of the Kollmorgen S72402-NANANA ensures crisp, responsive motion that maximizes production line speed.

In the printing and converting industry, this drive excels in controlling print cylinder registration, web tensioning, and slitter positioning, where micron-level accuracy is non-negotiable for print quality. The semiconductor and electronics manufacturing industry relies on the Kollmorgen S72402-NANANA for wafer handling robots, wire bonders, and pick-and-place units, where its rapid settling times and minimal vibration enable higher throughput and yield. Additionally, it is perfectly suited for a wide range of automated assembly systems, material handling robots, and specialized test and measurement equipment, providing the reliable and precise motion required for modern, smart manufacturing.

Kollmorgen S72402-NANANA AKD

Related Products

Kollmorgen AKM Servo Motors: The ideal motor partners for the S72402-NANANA, offering a wide range of frame sizes and performance characteristics for a complete system solution.

Kollmorgen AKD-T Series Drives: A variant of the AKD series with a built-in power supply, simplifying system design for multi-axis systems.

Kollmorgen AKD-P Series Drives: The high-performance version of the AKD platform with advanced control features for the most demanding applications.

Kollmorgen S72401-NANANA: A lower current version (1.2A) in the same series, suitable for smaller motors.

Kollmorgen S72403-NANANA: A higher current version (3.5A) for applications requiring more power.

Kollmorgen CAB-AC-005-0 Series Cables: Specifically designed motor feedback and power cables for reliable connectivity.

Kollmorgen Fieldbus Option Modules: Plug-in communication cards (e.g., for EtherCAT) that enable network connectivity for the S72402-NANANA.
