Description

The ABB AIM0006 2RCA021397A0001F is a high-performance, high-density Analog Input Module that forms a critical part of the ABB S800 I/O family, which is extensively used within ABB’s premier distributed control systems (DCS) like Advant OCS and Symphony Plus. This module’s primary function is to act as a sophisticated interface between the physical world and the digital control system. It is designed to connect to a wide array of field instruments, such as pressure transmitters, temperature sensors (via transmitters), flow meters, and level gauges that output standard analog signals. The ABB AIM0006 2RCA021397A0001F accurately converts these continuous 4-20 mA or 0-20 mA current signals from the field into precise digital values that the DCS controller can process, monitor, and use for regulatory control and complex automation strategies.

As a member of the rugged and modular S800 I/O series, this module is engineered for maximum availability and ease of maintenance in critical process applications. It is typically installed in a dedicated S800 I/O station, which can be located remotely from the central control room, thereby reducing wiring costs and improving signal integrity. The ABB AIM0006 2RCA021397A0001F supports 16 single-ended input channels, providing a high channel count in a single slot, which optimizes cabinet space and system cost per point. Its design emphasizes high accuracy, excellent noise immunity, and comprehensive diagnostics, ensuring that the process data received by the control system is both reliable and actionable. The robust construction and proven technology of the ABB AIM0006 2RCA021397A0001F make it a cornerstone for building a resilient and efficient automation infrastructure in continuous process industries.

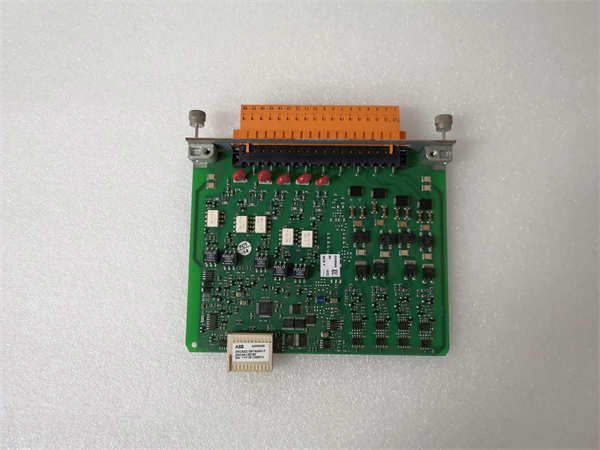

ABB AIM0006 2RCA021397A0001F

Technical Specifications

Main Features and Advantages

The ABB AIM0006 2RCA021397A0001F offers a compelling set of features that ensure superior performance and operational efficiency. Its high channel density is a significant advantage, allowing plant engineers to monitor a large number of process variables with a single module, which simplifies system architecture, reduces spare parts inventory, and minimizes the physical footprint within the I/O rack. Each channel on the ABB AIM0006 2RCA021397A0001F is individually configurable, providing the flexibility to handle a mix of signal types across the same module. The high 16-bit resolution guarantees that even minute changes in the process variable are detected, enabling tighter control and improved product quality.

A key strength of this module lies in its robust electrical isolation and advanced diagnostic capabilities. The channel-to-channel isolation prevents a fault on one input, such as a ground loop or wiring short, from affecting the readings on adjacent channels, thereby enhancing the overall integrity and availability of the I/O system. The built-in diagnostics continuously monitor for common field problems like sensor wire break (open circuit) and signal saturation. When a fault is detected, the ABB AIM0006 2RCA021397A0001F can immediately report it to the DCS, allowing operators and maintenance personnel to respond quickly, thus reducing mean-time-to-repair (MTTR) and preventing potential process upsets. The hot-swappable nature of the S800 I/O system, which includes the ABB AIM0006 2RCA021397A0001F, allows for module replacement without shutting down the entire process, a critical feature for maintaining high plant availability.

Application Field

The ABB AIM0006 2RCA021397A0001F is deployed in a vast range of continuous and batch process industries where reliable analog signal acquisition is paramount. In the Oil & Gas sector, it is used in upstream production platforms, refineries, and pipelines to monitor critical parameters such as pipeline pressure, vessel level, and compressor discharge temperature. In the Chemical and Petrochemical industries, the module interfaces with sensors on reactors, distillation columns, and storage tanks, providing the essential data needed for precise reaction control and safety interlocking. The high reliability of the ABB AIM0006 2RCA021397A0001F makes it ideal for these demanding environments where signal failure can lead to significant production loss or safety incidents.

Furthermore, it is a fundamental component in Power Generation plants, where it monitors feedwater flow, steam pressure, and turbine bearing temperatures. In Pulp & Paper and Pharmaceutical manufacturing, the module ensures consistent product quality by accurately measuring process variables like consistency, pH, and temperature. In Water and Wastewater Treatment facilities, the ABB AIM0006 2RCA021397A0001F is used to monitor flow rates, chemical dosing, and tank levels. Essentially, wherever there is a need to bring a large number of reliable 4-20 mA signals into an ABB DCS for monitoring and control, the ABB AIM0006 2RCA021397A0001F is the go-to solution.

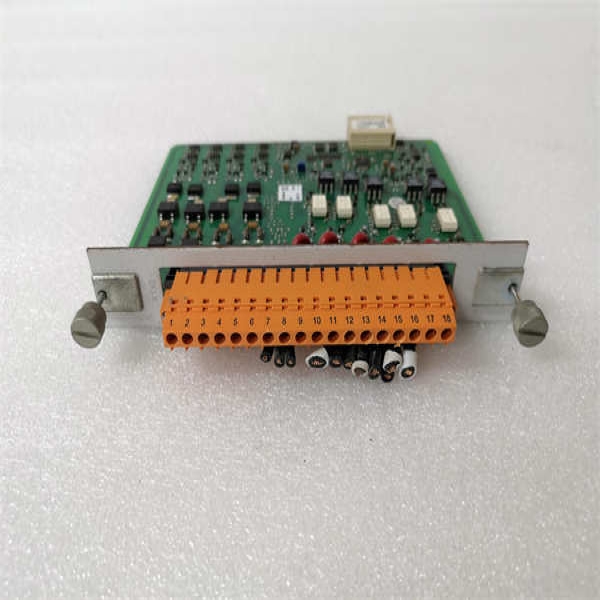

ABB AIM0006 2RCA021397A0001F

Related Products

ABB AOM0006: The Analog Output Module counterpart, used for sending 4-20 mA control signals to field actuators like control valves.

ABB DIM0006: A Digital Input Module from the same S800 series for reading on/off status from field switches.

ABB CI801: A classic Communication Interface module that provides the link between the S800 I/O rack (housing the AIM0006) and the ABB Advant Master Bus 200.

ABB CI830: A more modern Communication Interface module for connecting S800 I/O to the Symphony Plus or 800xA systems via Ethernet.

ABB TB810: The standard Termination Unit that provides the physical wiring connections for the ABB AIM0006 2RCA021397A0001F module.

ABB S800 I/O Base Plate: The physical rack that houses and provides power to the I/O modules.
