Description

The Emerson A3120022-000 CSI 3120 is a high-performance, loop-powered vibration transmitter designed for continuous online monitoring of overall machinery health. This device is part of Emerson’s comprehensive CSI (Common Sensor Interface) product line, which is engineered to provide reliable and cost-effective condition monitoring for a wide range of industrial assets. The primary function of the Emerson A3120022-000 CSI 3120 is to convert the raw signal from a seismic transducer (typically a velocity sensor or accelerometer) into a standardized 4-20 mA DC output that is directly proportional to the vibration level. This robust signal can be transmitted over long distances and easily integrated into a plant’s existing Distributed Control System (DCS), Programmable Logic Controller (PLC), or other data acquisition systems for real-time monitoring and alarm functions.

Housed in a rugged, industrial-grade enclosure, the Emerson A3120022-000 CSI 3120 is built to thrive in harsh plant environments, offering excellent resistance to moisture, dust, and electromagnetic interference. It simplifies the machinery protection architecture by eliminating the need for separate signal conditioners and complex wiring, providing a straightforward solution for monitoring casing vibration on critical and general-purpose equipment. By delivering a continuous, real-time analog signal representing machine health, the Emerson A3120022-000 CSI 3120 enables operators to move from reactive to predictive maintenance strategies, identifying developing faults such as imbalance, misalignment, and bearing issues before they lead to catastrophic failure and unplanned downtime.

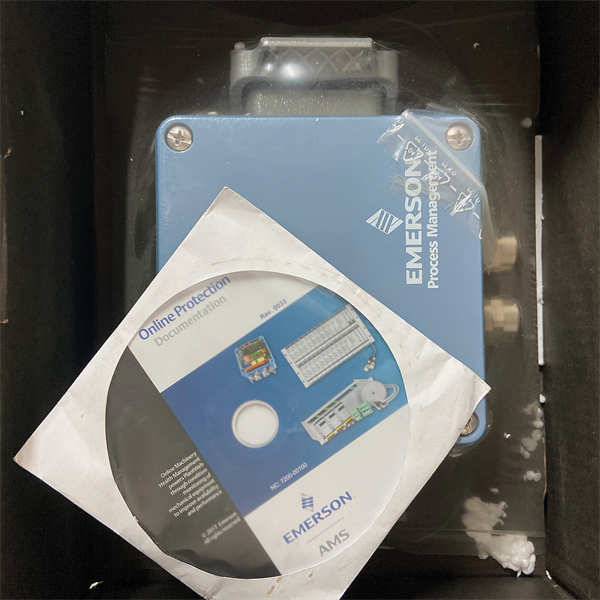

Emerson A3120022-000 CSI 3120

Technical Specifications

Main Features and Advantages

The Emerson A3120022-000 CSI 3120 stands out for its exceptional simplicity and robustness. Its loop-powered, two-wire design significantly reduces installation complexity and cost, as the same two wires are used for both power and signal transmission. A key feature is its field-configurability through internal DIP switches, allowing technicians to easily set the measurement range and other parameters on-site without the need for a laptop or specialized software. This flexibility makes the Emerson A3120022-000 CSI 3120 adaptable to a wide variety of applications and machinery types, from low-speed pumps to high-speed fans.

The transmitter provides a highly reliable and noise-immune 4-20 mA signal, which is the industry standard for analog process control. This ensures seamless integration with virtually any control or monitoring system. The robust IP67/NEMA 4X rated enclosure ensures long-term reliability even when installed in locations exposed to water, dust, and corrosive chemicals. Furthermore, the Emerson A3120022-000 CSI 3120 is designed to be a direct form-fit-function replacement for many legacy vibration transmitters, making it an ideal choice for modernizing existing monitoring systems without requiring changes to sensor mounting or control system wiring. This combination of durability, ease of use, and interoperability makes it a highly cost-effective solution for plant-wide condition monitoring.

Emerson A3120022-000 CSI 3120

Application Field

The Emerson A3120022-000 CSI 3120 is ideally suited for continuous monitoring of overall vibration on a vast array of rotating equipment in virtually every industry. In the water and wastewater sector, it is extensively used to monitor critical pumps, blowers, and mixers, providing early warning of mechanical issues that could disrupt treatment processes. In chemical and petrochemical plants, the Emerson A3120022-000 CSI 3120 protects agitators, reactors, and conveyor drives, helping to maintain safe and continuous production.

The power generation industry relies on it for auxiliary equipment such as cooling tower fans, boiler feed pumps, and coal crushers. In HVAC applications, it monitors the health of large fans and chillers in commercial buildings and data centers. The Emerson A3120022-000 CSI 3120 is also perfectly suited for general-purpose motors, compressors, and gearboxes throughout manufacturing and processing facilities. By providing a simple, reliable vibration signal, it serves as the first line of defense in a predictive maintenance program, allowing personnel to track machine condition trends and schedule repairs during planned outages, thereby avoiding costly unexpected failures.

Related Products

Emerson CSI 9210: A more advanced Machinery Health Transmitter that provides multiple dynamic and process parameters, offering more data than the CSI 3120.

Emerson A3120022-005: A variant of the same transmitter family, potentially with different default configurations or firmware.

Bently Nevada 330525: A standard velocity seismic sensor that is a common input to the CSI 3120 transmitter.

Emerson CSI 2140: A portable machinery analyzer that can be used for periodic, detailed analysis to complement the continuous monitoring of the CSI 3120.

Emerson CSI 9420: A wireless vibration transmitter, representing the next step in condition monitoring technology beyond wired units like the CSI 3120.

Bently Nevada 3500/42: A Proximitor Seismic Monitor in a rack-based system, used for more critical machinery where the CSI 3120 is used for general-purpose assets.
