Description

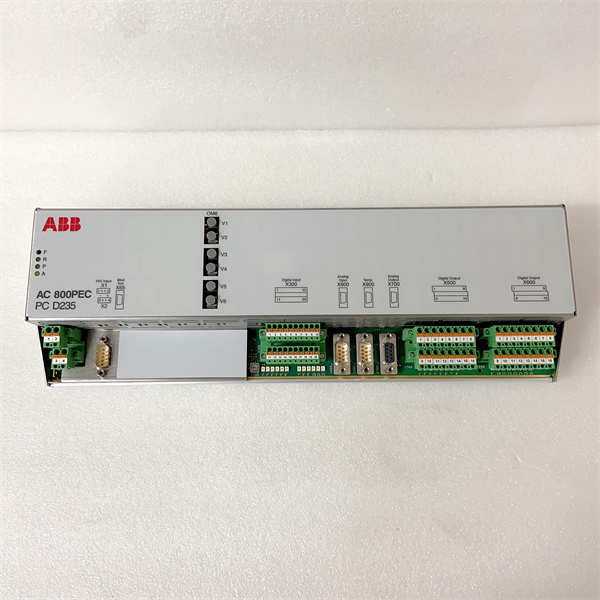

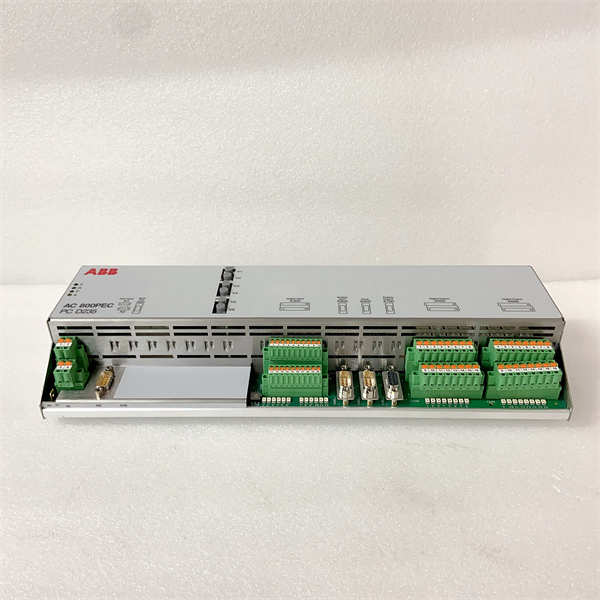

The ABB PCD235B1101 with the order code 3BHE032025R1101 is a sophisticated Protection and Control Unit belonging to ABB’s renowned Relion 600 series. This device is specifically engineered as a line differential and distance protection terminal, making it a cornerstone for the security and reliability of high-voltage transmission and sub-transmission networks. The primary function of the ABB PCD235B1101 is to continuously monitor electrical parameters like current, voltage, and phase angles across a power line. Using advanced algorithms, it can instantaneously detect faults such as short circuits, calculate their location, and initiate precise tripping commands to circuit breakers to isolate the faulty section, thereby preventing widespread blackouts and protecting expensive power infrastructure from damage.

As part of the Relion product family, the ABB PCD235B1101 represents the cutting edge of digital protection technology. It integrates multiple protection functions, control logic, monitoring, and extensive communication capabilities into a single, compact device. Its value lies in its exceptional reliability, speed, and accuracy, which are critical for maintaining grid stability. The device supports industry-standard communication protocols like IEC 61850 for seamless integration into modern digital substations, enabling comprehensive data exchange with SCADA systems and other intelligent electronic devices (IEDs). The robust design and proven performance of the ABB PCD235B1101 make it a trusted choice for utilities and industrial power distributors worldwide for managing complex power system protection schemes.

PCD235B1101 3BHE032025R1101

Technical Specifications

Main Features and Advantages

The ABB PCD235B1101 excels with its integrated multi-functional protection philosophy. It combines sensitive line differential protection, which compares currents at both ends of a line to detect internal faults with absolute selectivity, with comprehensive multi-zone distance protection that provides reliable backup. This dual-primary protection scheme ensures maximum security and dependability, significantly reducing the risk of incorrect operation. The device features advanced disturbance recording, capturing detailed pre-fault and post-fault data which is invaluable for post-event analysis and root cause determination.

Superior communication and interoperability: A key strength of the ABB PCD235B1101 is its native support for the IEC 61850 standard, which is pivotal for modern substation automation. This allows for seamless peer-to-peer communication between bay-level devices using GOOSE messages for high-speed interlocking and tripping, eliminating the need for hardwired connections and reducing cabling costs. Its versatile communication portfolio also includes legacy protocols, ensuring smooth integration into both new and existing substation architectures.

User-friendly configuration and robust design: The unit is configured using ABB’s intuitive PCM600 software, which provides a graphical environment for setting protection parameters, creating custom logic, and managing the device’s extensive capabilities. The ABB PCD235B1101 is built to withstand the harsh electrical and environmental conditions of a substation, featuring high immunity to electromagnetic interference and a wide operating temperature range. Its modular design and comprehensive self-supervision functions facilitate easy maintenance and enhance long-term reliability, ensuring continuous protection of critical assets.

Application Field

The ABB PCD235B1101 is primarily deployed in the electrical power transmission and distribution sector. Its main application is for the protection of high-voltage and extra-high-voltage overhead transmission lines and underground cables in utility networks. It is the ideal choice for two- or three-terminal lines where reliable and fast differential protection is required. In sub-transmission networks and large industrial plants with their own distribution grid, the ABB PCD235B1101 provides critical protection for incoming feeders and interconnectors.

Furthermore, it is extensively used in smart grid and digital substation projects, where its IEC 61850 capabilities are fully leveraged to create a streamlined, interoperable system architecture. It can also be applied for the protection of important tie-lines between different parts of a power system or for generator step-up transformers when configured appropriately. In all these scenarios, the ABB PCD235B1101 acts as a key intelligence unit, not only preventing equipment damage during faults but also contributing to overall system stability by enabling faster fault clearance and restoration, which is essential for maintaining power quality and supply continuity.

PCD235B1101 3BHE032025R1101

Related Products

ABB REF615: A feeder protection relay from the Relion 600 series for medium-voltage applications, offering a different protection scope.

ABB RET615: A transformer protection relay, complementing the line protection provided by the PCD235B1101.

ABB REC615: A bay controller unit that can be used alongside the PCD235B1101 for control and monitoring functions.

ABB PCD231B1101: A similar line differential protection terminal, potentially with a different feature set or for a specific voltage level.

ABB SPAJ 140C: A legacy overcurrent relay, highlighting the technological evolution to advanced devices like the PCD235B1101.

PCM600 Software: The essential engineering tool for configuring, setting, and monitoring the PCD235B1101 and other Relion devices.
