Description

The ABB G3FE HENF452697R1 is a high-integrity safety input module that serves as a critical interface within ABB’s comprehensive Safety Systems platform. This advanced safety input termination module is specifically designed to provide reliable and secure connection points for safety sensors and switching devices in safety instrumented systems. The G3FE HENF452697R1 is engineered to meet rigorous international safety standards including IEC 61508 and IEC 61511, supporting applications up to Safety Integrity Level (SIL) 3. Its architecture incorporates sophisticated diagnostic features and fault-tolerant input circuitry to maintain the highest levels of safety integrity when monitoring emergency stop devices, safety gates, and other critical safety sensors.

As an essential component of ABB’s safety system architecture, the ABB G3FE HENF452697R1 provides robust signal conditioning and monitoring for safety input circuits. The module is designed to work seamlessly with ABB’s safety controllers, including the G3EFa series, to create comprehensive safety instrumented systems (SIS) for machine protection and process safety applications. The G3FE HENF452697R1 features continuous self-monitoring capabilities that verify the integrity of both the module itself and the connected field devices, providing early detection of potential faults such as wire breaks, short circuits, or ground faults that could compromise safety system performance. This input module exemplifies ABB’s commitment to delivering certified safety solutions that ensure reliable sensor monitoring while protecting personnel and equipment in industrial applications.

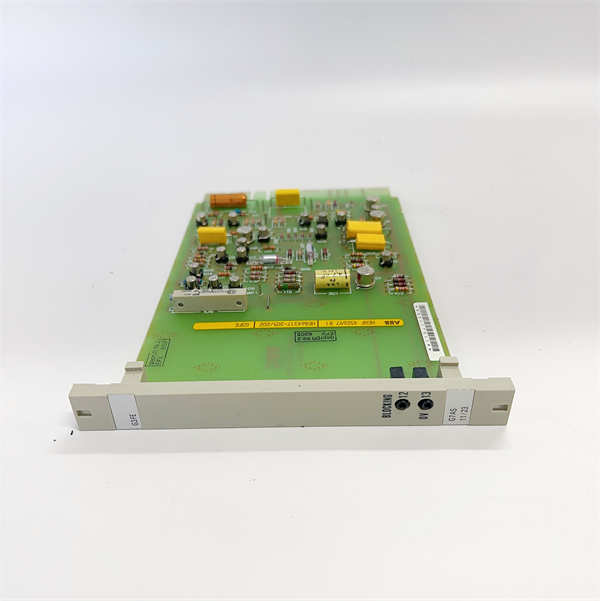

ABB G3FE HENF452697R1

Technical Specifications

Main Features and Advantages

The ABB G3FE HENF452697R1 offers exceptional safety performance through its advanced input monitoring capabilities and robust signal processing architecture. The module incorporates comprehensive circuit diagnostics that continuously monitor for open circuits, short circuits, and ground faults in the input circuits. This sophisticated diagnostic coverage ensures that over 90% of potential dangerous failures are detected, meeting the rigorous requirements for SIL 3 safety applications. The G3FE HENF452697R1 also features built-in cross-circuit comparison and signal validation that verifies input integrity throughout the safety chain, providing an additional layer of protection against common cause failures in safety sensor circuits.Safety integration and reliability: The ABB G3FE HENF452697R1 provides seamless integration with ABB’s safety systems through its modular design and standardized interface. The module supports various safety input devices including emergency stop buttons, safety interlock switches, and light curtains, with appropriate signal conditioning and monitoring for each device type. The flexible configuration of the G3FE HENF452697R1 allows it to be adapted to specific application requirements while maintaining safety integrity. The module’s design includes clear status indications and diagnostic feedback that simplifies troubleshooting and reduces mean time to repair, contributing to overall system availability while maintaining safety performance in critical monitoring applications.

Application Field

The ABB G3FE HENF452697R1 is deployed in critical safety applications across various industrial sectors where reliable safety input monitoring is essential. In manufacturing and automation systems, the G3FE HENF452697R1 serves as the primary interface for emergency stop circuits, safety gate monitoring, and area access control systems. The module’s high diagnostic coverage and SIL 3 certification make it suitable for applications where input failure could result in significant safety consequences for personnel. In robotic work cells, the ABB G3FE HENF452697R1 provides the critical monitoring function for safety interlocks that protect maintenance personnel during automated operations.In process industries including chemical processing and oil and gas facilities, the ABB G3FE HENF452697R1 implements safety functions for manual emergency shutdown initiation, fire system activation monitoring, and critical parameter manual override systems. The module’s robust input design ensures reliable operation in harsh industrial environments, while its comprehensive diagnostic capabilities provide the necessary integrity for processes involving hazardous materials. The G3FE HENF452697R1 also finds application in power generation facilities, particularly in turbine protection manual initiation systems and emergency response circuits, where its certified safety performance and reliable input monitoring support regulatory compliance and operational safety.

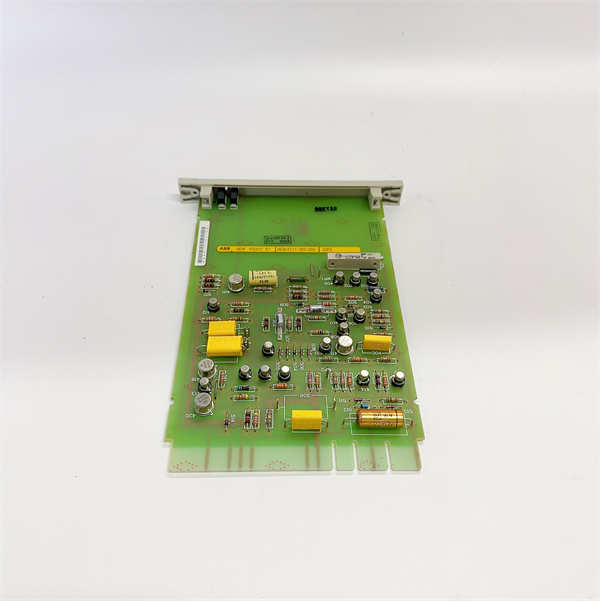

ABB G3FE HENF452697R1

Related Products

• •ABB G3EFa Safety Controllers: Primary safety processors that interface with the G3FE HENF452697R1 input modules

• •ABB G3FCb Safety Output Modules: Complementary safety output termination modules for complete safety system implementation

• •ABB G3ESa Safety Communication Modules: Network interface modules for distributed safety systems

• •ABB G3HZ Redundancy Modules: Enable high-availability configurations for safety input circuits

• •ABB Safety System Chassis: Mounting and backplane systems designed specifically for safety system components

• •ABB G3PS Power Supply Units: Certified power supplies for safety system applications

• •ABB System 800xA High Integrity: Integration platform for combining basic process control with safety systems using the G3FE HENF452697R1
