Description

The BENTLY 167699-02 1900/65A-01-01-01-00-00 is a high-performance dual-channel vibration and temperature monitoring module from Bently Nevada’s renowned 1900 series machinery protection system. This sophisticated monitoring module serves as a critical component in condition-based maintenance strategies, providing continuous monitoring of rotating equipment health parameters. The 1900/65A-01-01-01-00-00 combines advanced vibration monitoring capabilities with precise temperature measurement functionality in a single, compact package, making it an ideal solution for comprehensive machinery protection applications.Designed for reliability and accuracy, the BENTLY 167699-02 module features sophisticated signal processing algorithms that ensure precise measurement of key equipment parameters. The module’s dual-channel architecture allows simultaneous monitoring of vibration amplitude and temperature values, providing a complete picture of machinery health. As part of Bently Nevada’s 1900 series, the 1900/65A-01-01-01-00-00 integrates seamlessly with existing monitoring systems while offering enhanced diagnostic capabilities for predictive maintenance applications.The robust construction of the BENTLY 167699-02 1900/65A-01-01-01-00-00 ensures reliable operation in demanding industrial environments, with protection against electrical noise, temperature extremes, and mechanical vibration. The module’s advanced communication capabilities enable real-time data transmission to control systems, facilitating immediate response to changing equipment conditions and preventing costly downtime in critical operations.

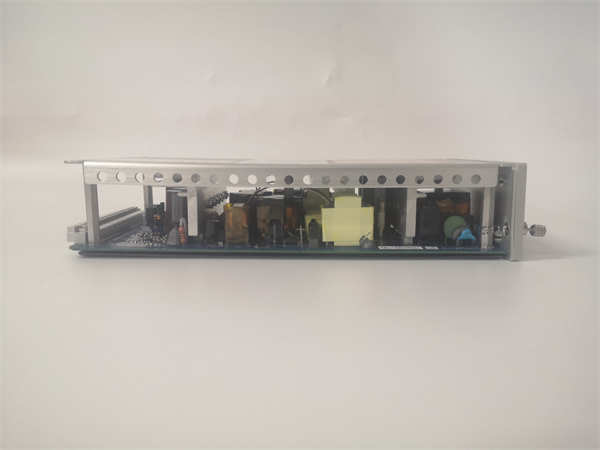

BENTLY NEVADA 1900/65A-01-01-00-00

Technical Specifications

Main Features and Advantages

The BENTLY 167699-02 1900/65A-01-01-01-00-00 incorporates several advanced features that set it apart in the field of machinery protection. The module’s dual-channel design provides comprehensive monitoring capabilities, allowing simultaneous tracking of vibration and temperature parameters from a single unit. This integrated approach reduces installation complexity and provides a more complete picture of equipment health. The advanced signal processing algorithms ensure accurate measurements even in electrically noisy environments, while the high-resolution analog-to-digital conversion delivers precise data for condition monitoring.Advanced diagnostic capabilities represent a significant advantage of the 1900/65A-01-01-01-00-00 module. The built-in self-test functionality continuously monitors module health and sensor integrity, providing early warning of potential issues. The module features programmable alert and danger setpoints with adjustable delay timers, preventing nuisance alarms during transient conditions while ensuring prompt response to genuine abnormalities. The real-time trending capabilities enable operators to track equipment condition over time, supporting predictive maintenance strategies.The communication flexibility of the BENTLY 167699-02 enhances its integration capabilities within modern automation systems. With support for Modbus RTU protocol, the module seamlessly connects with DCS, PLC, and asset management systems. The dual 4-20mA outputs provide compatibility with existing control systems, while the relay contacts enable direct integration with safety shutdown systems. The module’s non-volatile memory ensures configuration retention during power outages, maintaining operational continuity.

Application Field

The BENTLY 167699-02 1900/65A-01-01-01-00-00 finds extensive application in industries where rotating equipment reliability is critical. In power generation facilities, the module provides essential protection for turbines, generators, and large pumps, monitoring bearing health and detecting developing faults before they cause catastrophic failures. The 1900/65A-01-01-01-00-00‘s high accuracy and reliability make it particularly valuable in these applications where unplanned downtime can result in significant financial losses.In oil and gas applications, the BENTLY 167699-02 protects critical compression and pumping equipment in upstream, midstream, and downstream operations. The module’s robust construction withstands harsh environments including extreme temperatures, vibration, and potentially explosive atmospheres. Its certification for use in hazardous areas makes the 1900/65A-01-01-01-00-00 suitable for offshore platforms, refineries, and pipeline compressor stations where equipment reliability is paramount for safety and production continuity.For manufacturing and processing industries, the module offers cost-effective protection for motors, fans, blowers, and other rotating machinery. The BENTLY 167699-02 1900/65A-01-01-01-00-00 helps prevent unexpected breakdowns in continuous process operations, supporting overall equipment effectiveness (OEE) improvement initiatives. The module’s flexibility allows customization for specific application requirements, making it suitable for diverse industrial applications from chemical processing to metal manufacturing.

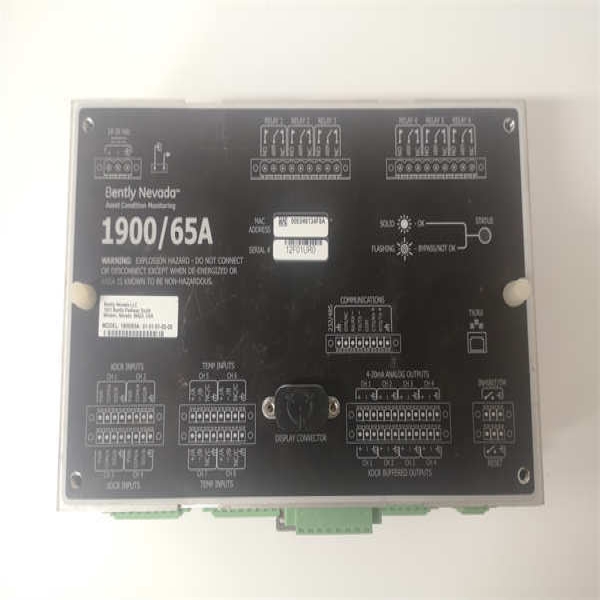

BENTLY NEVADA 1900/65A-01-01-00-00

Related Products

• •1900/45A – Single-channel vibration monitor for basic applications

• •1900/55A – Dual-channel vibration monitor with enhanced functionality

• •1900/75A – Advanced multi-parameter monitor with expanded capabilities

• •3500/42M – High-end turbine supervisory instrumentation module

• •3300 XL – Proximity probe system for direct shaft measurement

• •1701 – Portable data collector for periodic monitoring

• •System 1 – Software platform for enterprise-wide asset management

Installation and Maintenance

Pre-installation preparation: Before installing the BENTLY 167699-02 1900/65A-01-01-01-00-00, verify the mounting location meets environmental specifications and ensure proper clearance for wiring. The module requires a clean, dry environment within the specified temperature range. Use appropriate shielded cables for sensor connections and maintain adequate separation from power cables to minimize electrical interference. Confirm power supply compatibility and ensure proper grounding following manufacturer guidelines.Maintenance recommendations: Regular maintenance of the 1900/65A-01-01-01-00-00 includes periodic verification of calibration accuracy and sensor functionality. The module’s front-panel display provides real-time status information and diagnostic messages for quick assessment of system health. Quarterly inspections should include checking terminal connections, verifying alarm setpoints, and reviewing historical data for trends indicating potential issues. For optimal performance, maintain current firmware versions and keep configuration backups updated.
