Description

The Bently Nevada 3500/15 106M1081-01 is a Framework Interface Module that acts as the essential central nervous system for a 3500 Series Machinery Protection System rack. This module is installed in a dedicated slot within the 3500 rack and serves as the primary communications gateway and system manager. Its core function is to coordinate the operation of all monitoring modules within the rack, concentrate the data they produce, and provide a unified interface to external systems such as a DCS, PLC, or asset management software.The 3500/15 module is critical for the integrity and functionality of the entire monitoring system. It performs continuous system diagnostics, monitoring the health and status of every module in the rack, including power supplies. The 106M1081-01 variant ensures that all configured parameters and alarm settings are maintained across the system. Without a properly functioning 3500/15 module, the 3500 rack cannot effectively communicate with the outside world, severely limiting its ability to provide machinery protection and operational data.

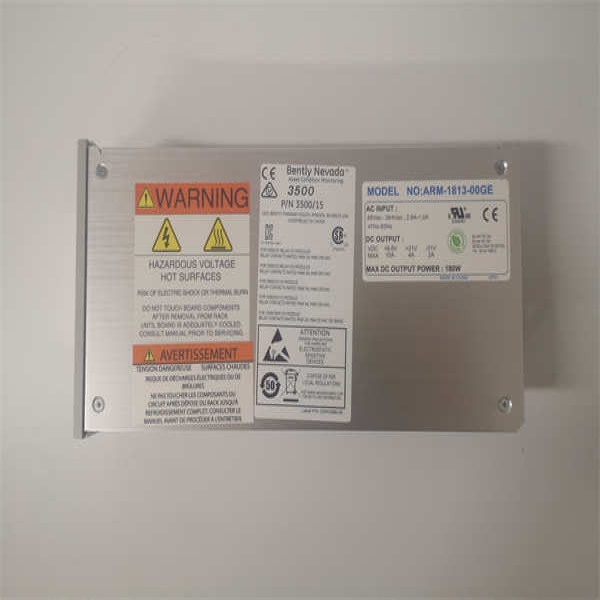

Bently Nevada 3500/15 106M1081-01

Technical Specifications

Main Features and Advantages

The Bently Nevada 3500/15 module’s primary advantage is its role as a robust data concentrator and system integrator. It eliminates the need for individual communication links to each monitoring module by aggregating data from all modules in the rack and presenting it through a single, high-availability Ethernet interface. This architecture simplifies network topology, reduces wiring costs, and enhances overall system reliability. The dual Ethernet ports on the 106M1081-01 module support redundant network configurations, ensuring communication paths remain active even if a network switch fails.System diagnostics and health monitoring are core strengths of the 3500/15. It continuously polls every module in the rack, verifying their operational status and checking for faults. This proactive approach allows for predictive maintenance of the monitoring system itself, as potential issues with other modules or the rack’s power supplies can be identified and addressed before they impact the system’s protective functions. The module also manages the configuration of the entire rack; the 106M1081-01 stores the system’s configuration database, ensuring that module settings are maintained and applied consistently.

Application Field

The Bently Nevada 3500/15 106M1081-01 is deployed wherever critical rotating machinery requires high-integrity protection and monitoring. In combined-cycle power plants, the 3500/15 serves as the communication hub for the system monitoring gas and steam turbines, collecting vibration, speed, temperature, and position data and relaying it to the plant DCS for operator oversight and automated protection. Its reliable operation is fundamental to preventing catastrophic turbine failures.In the oil and gas industry, the 3500/15 module is found in compressor stations for long-distance pipelines. Here, it integrates data from modules monitoring critical centrifugal compressors, providing a centralized data stream for condition monitoring and asset management systems. The module’s robust design ensures reliable operation in remote and sometimes harsh environments. The data concentration capability of the 106M1081-01 is also vital in large industrial facilities like chemical plants and metal production sites, where it simplifies the integration of machinery health data into site-wide monitoring and control networks.

Bently Nevada 3500/15 106M1081-01

Related Products

• •3500/25 Keyphasor® Module: Provides a critical timing signal to the rack, managed by the 3500/15.

• •3500/42 Vibration Monitor: A primary source of vibration data concentrated by the 106M1081-01.

• •3500/92 Communication Gateway: Can work alongside the 3500/15 to provide additional protocol support.

• •3500/05 Power Supply: Provides redundant power to the rack managed by the 3500/15.

• •3300 XL 8mm Proximity Probes: The sensors whose signals are processed by modules under the 3500/15‘s control.

Installation and Maintenance

Installation and Maintenance: Installing the Bently Nevada 3500/15 106M1081-01 requires careful attention to the rack’s power state. The rack must be completely de-energized before module insertion or removal to prevent electrical damage. The module is designed to slide into the designated slot (typically Slot 1) on the rack’s backplane, and it must be securely fastened. Following physical installation, the 106M1081-01 must be configured using Bently Nevada’s dedicated configuration software, which involves setting the IP address, network parameters, and defining the rack’s module layout.Maintenance recommendations: The 3500/15 module itself requires minimal physical maintenance. The primary maintenance activity involves monitoring its status LEDs and reviewing system health reports via the configuration software. It is crucial to ensure the module’s firmware is kept up to date with the latest revision provided by Bently Nevada to maintain compatibility and access the latest features. Periodically, the configuration stored on the 3500/15 should be backed up to prevent loss in the event of a module replacement.
