Description

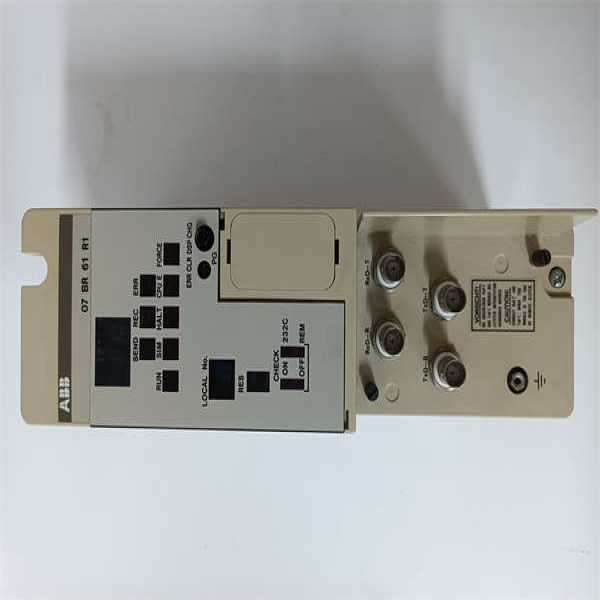

The ABB 07BR61R1 (manufacturer part number GJV3074376R1) is a high-reliability I/O baseplate designed for use within ABB’s AC 800M controller platform, a core component of the System 800xA distributed control and automation architecture. This baseplate serves as the mechanical and electrical foundation for mounting compatible S800 I/O modules, providing secure connectivity to field devices while enabling seamless communication with the AC 800M CPU via the redundant backplane.

As a field-wired terminal base, the ABB 07BR61R1 integrates screw-type terminals directly into its housing, eliminating the need for separate terminal blocks and reducing wiring complexity during panel assembly. It supports both single and redundant I/O configurations, making it suitable for applications requiring high availability—such as turbine control, safety shutdown systems, or continuous process lines in refineries. The ABB GJV3074376R1 is engineered for hot-swapping, allowing technicians to replace faulty I/O modules without powering down the entire rack, thereby minimizing unplanned downtime.

Positioned as a critical enabler of modularity and serviceability in ABB’s automation ecosystem, the ABB 07BR61R1 ensures signal integrity, electromagnetic compatibility (EMC), and long-term mechanical stability—even under vibration, temperature cycling, or corrosive atmospheres typical in heavy industry.

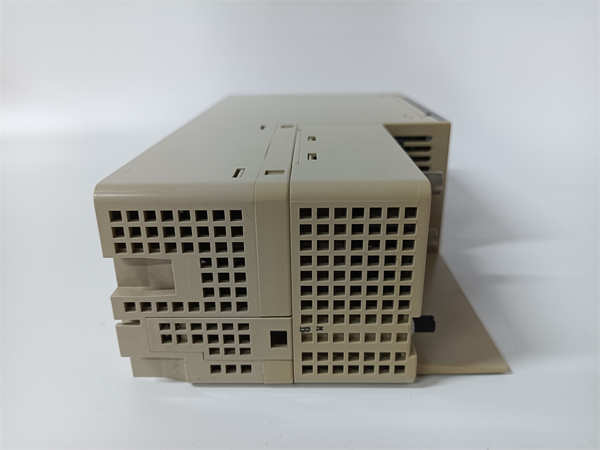

07BR61R1 GJV3074376R1 ABB

Technical Specifications

Main Features and Advantages

Integrated terminal design: Unlike carrier bases that require external wiring blocks, the 07BR61R1 features built-in screw terminals, drastically reducing wiring time and potential connection errors during panel build-out. Each terminal is clearly labeled and accessible from the front, supporting efficient maintenance and troubleshooting.

Full compatibility with S800 I/O: The GJV3074376R1 is engineered to accept any standard ABB S800 I/O module, including analog input/output, digital I/O, and specialty modules like HART or thermocouple interfaces. Mechanical keying prevents incorrect module insertion, ensuring foolproof installation.

Redundancy-ready architecture: When used in dual-redundant AC 800M systems, the 07BR61R1 supports synchronized data paths across primary and backup controllers—critical for SIL 2/3 applications in safety instrumented systems (SIS). Its robust backplane contacts maintain signal fidelity even during switchover events.

Hot-swap capability: Maintenance teams can replace a failed I/O module on the 07BR61R1 without interrupting controller operation—a vital feature in 24/7 processes like power generation or chemical production. The baseplate maintains backplane continuity and grounding during module exchange.

DIN-rail efficiency: With a compact 35 mm width, the 07BR61R1 maximizes panel space utilization. Its snap-on design allows rapid installation and repositioning along the rail, supporting modular expansion or reconfiguration as plant needs evolve.

Industrial-grade durability: Constructed from flame-retardant, high-impact thermoplastic with conformal-coated internal traces, the GJV3074376R1 withstands harsh conditions including humidity, dust, and electrical noise—common in oil rigs, cement kilns, and water treatment plants.

Application Field

The 07BR61R1 is extensively deployed in process industries where reliability, modularity, and ease of maintenance are paramount. In oil & gas upstream and downstream facilities, it forms the I/O layer for wellhead monitoring, separator control, and pipeline compression stations—often integrated into hazardous-area panels certified for Zone 2 or Class I Div 2 environments.

In thermal and renewable power plants, the GJV3074376R1 connects sensors and actuators to the AC 800M controllers managing boiler feedwater, condenser vacuum, and turbine bypass systems. Its hot-swap feature is especially valued during live plant operations where shutdowns are prohibitively expensive.

Within chemical and pharmaceutical manufacturing, the 07BR61R1 supports precise analog control of reactor temperature, pH, and flow—often interfacing with HART-enabled transmitters via compatible S800 modules. The baseplate’s clean, organized wiring layout also aids in meeting GMP and validation requirements.

Additionally, in mining and metals processing, the 07BR61R1 endures high-vibration environments near crushers, conveyors, and smelters, delivering stable I/O performance where lesser bases might suffer contact fatigue or signal drift. Across all these sectors, the 07BR61R1 acts as the silent but essential link between the physical plant and ABB’s intelligent control layer.

07BR61R1 GJV3074376R1 ABB

Related Products

• 07BR62R1(GJV3074377R1): Higher-density version with spring-cage terminals—ideal for high-channel-count applications.

• AI810(3BSE008512R1): Analog input module commonly mounted on 07BR61R1 for 4–20 mA signal acquisition.

• DI810(3BSE008510R1): Digital input module for discrete status monitoring—pairs seamlessly with 07BR61R1.

• TK801A(3BSE013204R1): Cable assembly for connecting 07BR61R1 baseplates to AC 800M I/O terminations.

• PM864A(3BSE018161R1): AC 800M CPU controller—primary host for I/O networks using 07BR61R1

• 07DC91R1(GJV3074390R1): Redundant power supply base—often installed alongside 07BR61R1 in critical racks.
