Description

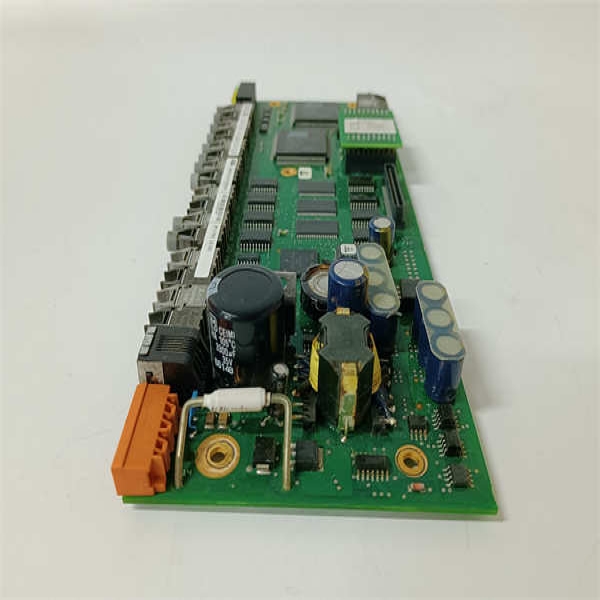

The ABB PPC902AE101 (manufacturer part number 3BHE010751R0101) is a high-reliability, switch-mode power supply module designed for ABB’s AC 800M controller system, a core component of the System 800xA distributed control system (DCS). Engineered for continuous operation in demanding industrial environments, this power supply delivers stable 24 VDC output at up to 10 A, supporting CPU modules, I/O cards, communication interfaces, and field devices connected via S800 I/O terminals.

Housed in a rugged, pluggable form factor compatible with AC 800M racks such as PK611 and PK622, the ABB PPC902AE101 supports redundant or parallel configurations to ensure uninterrupted power during maintenance or failure events—critical for SIL-rated applications in safety instrumented systems (SIS) or emergency shutdown (ESD) logic solvers. It features wide-range AC/DC input capability (typically 85–264 VAC or 100–370 VDC), making it adaptable to global power grids and backup battery systems.

Integrated diagnostics via LED indicators and System 800xA software allow real-time monitoring of output voltage, load current, temperature, and fault conditions (e.g., overvoltage, short circuit, fan failure in forced-air variants). While the PPC902AE101 is primarily conduction-cooled (no internal fan), its robust thermal design ensures reliable performance in ambient temperatures up to +60°C—common in electrical rooms of refineries, power stations, and chemical plants.

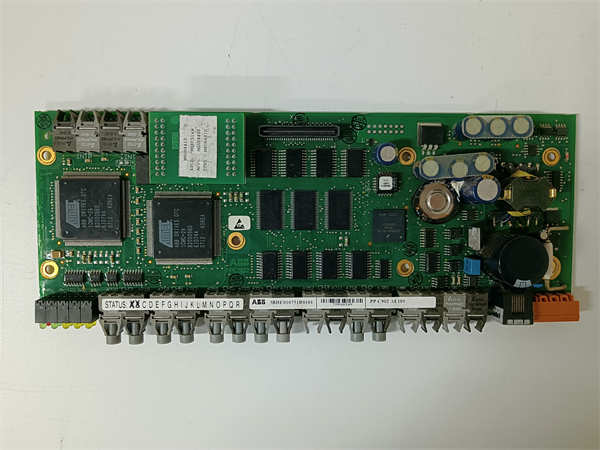

PPC902AE101 3BHE010751R0101

Technical Specifications

Main Features and Advantages

High availability through redundancy:
When two ABB PPC902AE101 modules are installed in parallel with an optional redundancy diode module (e.g., PDP900 series), the system continues operating even if one PSU fails—enabling hot-swap replacement without shutting down the controller. This is essential for continuous processes like ethylene cracking or combined-cycle power generation.

Universal input for global deployment:
The wide input range allows the same PPC902AE101 unit to operate on 110 VAC (North America), 230 VAC (Europe), or 220 VDC (industrial battery-backed systems)—simplifying spares management across multinational sites.

Seamless System 800xA integration:
Unlike third-party PSUs, the ABB PPC902AE101 reports health status directly to the 800xA operator workplace. Alarms for “PSU Overload” or “Output Undervoltage” appear alongside process alarms, enabling predictive maintenance before a failure cascades.

Robust design for harsh environments:
With conformal-coated PCBs, high-quality electrolytic capacitors rated for 105°C, and immunity to surges per IEC 61000-4, the PPC902AE101 withstands electrical noise, humidity, and thermal stress common in offshore platforms and steel mills.

Application Field

The ABB PPC902AE101 powers mission-critical control systems across multiple industries:

• Oil & Gas: Provides reliable 24VDC to AC 800M controllers managing flare gas recovery, compressor trains, and pipeline metering stations—often in Zone 2 hazardous areas.

• Power Generation: Supplies redundant power to boiler controls, turbine protection logic, and switchyard automation in thermal, nuclear, and hydro plants.

• Chemical & Petrochemical: Used in reactor temperature control, batch sequencing, and safety interlocks where power loss could trigger runaway reactions.

• Mining & Minerals: Operates in dusty, high-vibration environments to support mill drive coordination and conveyor control systems.

• Water & Wastewater: Ensures uptime for lift station PLCs and SCADA RTUs in remote locations with unstable grid power.

Due to ABB’s long product lifecycle policy, the PPC902AE101 remains available for brownfield modernization projects, allowing plants to upgrade HMIs or cybersecurity layers while retaining proven power infrastructure.

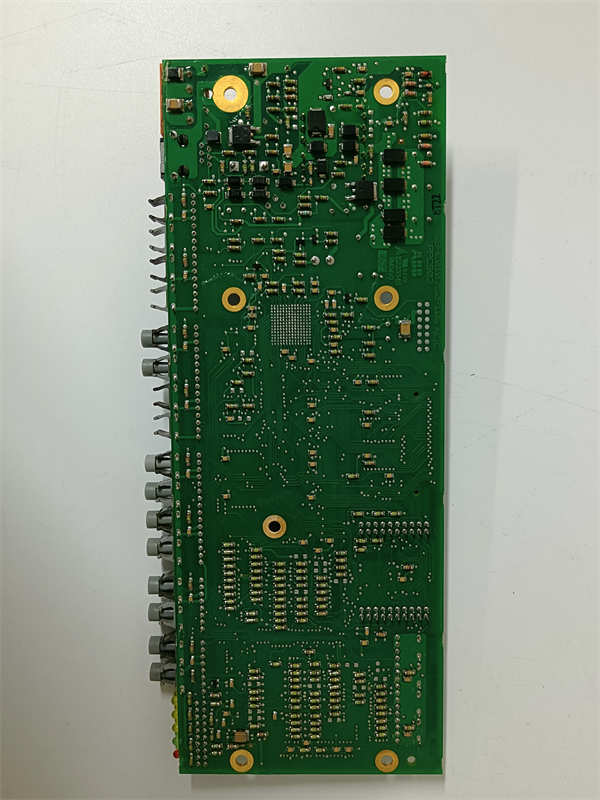

PPC902AE101 3BHE010751R0101

Related Products

• ABB PPC901AE101 (3BHE010750R0101): Lower-current (5 A) variant for smaller I/O racks

• ABB PDP900 Series: Redundancy diode modules used withPPC902AE101 for N+1 power architectures

• ABB PK611 / PK622: AC 800M controller racks designed to house thePPC902AE101

• ABB PM864 / PM865: High-end AC 800M CPUs often powered by thePPC902AE101

• ABB AI810 / AO810 / DI810 / DO810: S800 I/O modules drawing power via the same backplane

• ABB TB820V / TB840A: Terminal bases that distribute 24VDC from the PSU to field instruments

• ABB SA811: Power distribution module for extended I/O cabinets linked to the main AC 800M rack
