Description

The EMERSON 1C31232G02 is a Safety-Integrity Level (SIL) 3 certified Digital Output Module engineered for critical shutdown functions in nuclear power and high-hazard industrial processes. As part of Emerson’s Ovation® Safety Instrumented System (SIS), this Class 1E (IEEE 603) module executes fail-safe control commands with deterministic response times under 10ms. The 1C31232G02 features triple-redundant solid-state outputs per channel, providing galvanically isolated switching for emergency valves, turbine shutdown systems, and fire suppression actuators. Its TMR (Triple Modular Redundant) architecture eliminates single points of failure while maintaining continuous diagnostics coverage >99%, meeting IEC 61508/61511 and API 670 standards. Designed for extreme environments, the 1C31232G02 operates at -40°C to +85°C with 75 kRad radiation tolerance and seismic Category I certification (IEEE 344), making it indispensable for reactor protection systems and offshore safety applications where reliability prevents catastrophic events.

Integrated with Ovation’s safety controllers, the 1C31232G02 supports configurable fail-safe states (energize/de-energize to trip) and features patented ArcSafe™ technology to suppress inductive voltage spikes when interrupting high-current loads. Each channel provides real-time health monitoring through back-reported voltage/current measurements, enabling predictive maintenance without additional wiring. For nuclear operators requiring NRC-compliant safety systems, the EMERSON 1C31232G02 delivers auditable trip execution for reactor coolant pump isolation, containment venting, and emergency core cooling initiation with full FSAR documentation support.

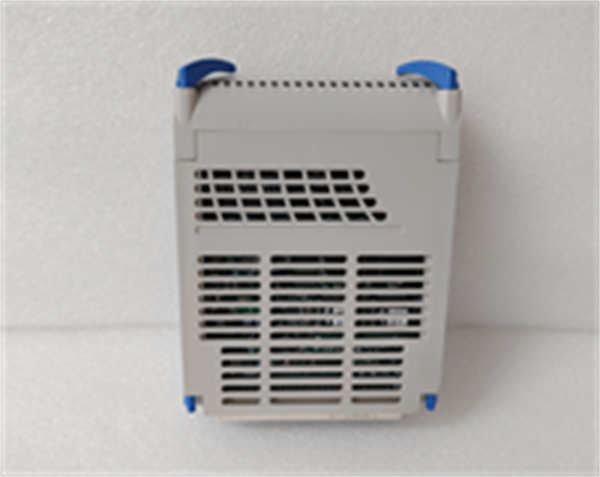

EMERSON 1C31232G02

Technical Specifications

Main Features and Advantages

Fault-Tolerant Switching:
Triple-parallel MOSFET outputs with independent drivers per channel. Continuous load current monitoring detects open/short circuits within 15ms. Automatic load sharing prevents single-device overstress.

Advanced Arc Suppression:
Integrated ArcSafe™ snubber circuits clamp inductive spikes to <400V>

Cyber-Secure Operation:
Hardware-enforced de-energize-to-trip logic prevents cyber manipulation. Firmware signature verification with secure boot.

Predictive Diagnostics:
Real-time contact resistance tracking predicts SSR degradation. Channel-level temperature monitoring prevents thermal runaway.

Seismic Resilience:
Component-level qualification to IEEE 344-2004. Resonance-avoidance design (>40Hz natural frequency).

Application Field

The EMERSON 1C31232G02 executes critical safety actions in high-consequence environments:

Nuclear: Reactor scram solenoid control, containment isolation valve actuation, emergency diesel generator start

Power Generation: Turbine overspeed trip bolts, boiler emergency feedwater valves, hydrogen seal oil system shutdown

Oil & Gas: HIPPS (High-Integrity Pressure Protection) valve closure, subsea BOP control, LNG spill containment

Chemical: Reactor quench system activation, toxic gas scrubber initiation

Mining: Conveyor fire deluge system triggering, hoist emergency braking

Deployed in Class 1E safety cabinets and SIL 3 certified panels, the 1C31232G02 directly controls ASCO solenoid valves, Bettis actuators, and heavy-duty contactors in containment penetrations and Ex-rated zones.

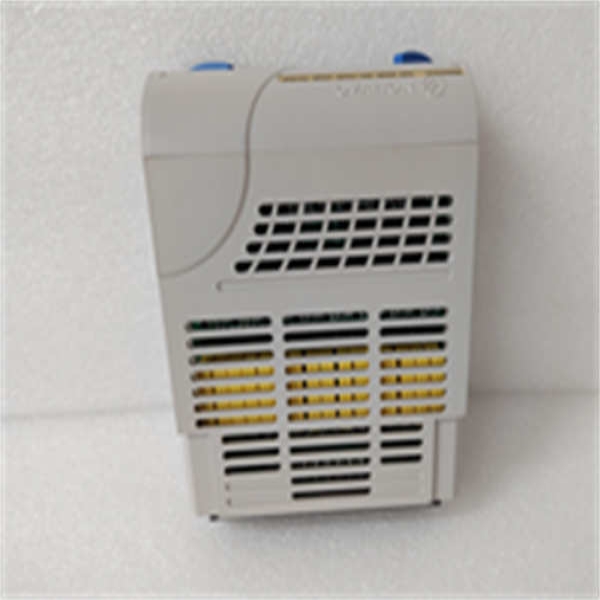

EMERSON 1C31232G02

Related Products

EMERSON 1C31169G03: TMR Safety Processor commanding 1C31232G02 outputs

EMERSON 1C31189G03: Analog Input Module providing trip signals to 1C31232G02

EMERSON 1C31232G03: High-current variant (5A continuous) for larger actuators

EMERSON 1C31444G01: Class 1E power supply for output module chassis

EMERSON 1C31231G02: Relay Output Module alternative for AC loads

ASCO 9182: SIL 3 solenoid valve compatible with 1C31232G02

EMERSON Ovation SIS Builder: Configuration software for 1C31232G02 logic

EMERSON 1C31232G01: Legacy version upgradeable to G02
