Description

The Bently Nevada 3500/34 is a highly specialized Keyphasor® Input Module, an essential component within the industry-leading Bently Nevada 3500 Machinery Protection System. This module is specifically engineered to process signals from Keyphasor probes, which are proximity transducers that generate a voltage pulse once per revolution by observing a keyway or notch on a rotating shaft. The primary function of the Bently Nevada 3500/34 is to provide a clean, reliable timing reference signal that is absolutely critical for the accurate measurement and analysis of dynamic motion in turbomachinery. This signal is used by other monitoring modules in the 3500 rack, such as vibration monitors, to determine rotor speed, phase angle, and for order tracking analysis.

The value of the Bently Nevada 3500/34 lies in its role as the foundational timing source for the entire monitoring system. Without an accurate keyphasor signal, vital protective functions like phase-adjusted overspeed detection and real-time vibration analysis would be impossible. The module conditions the raw probe signal, converting it into a standardized digital pulse that is distributed to all other modules via the rack’s backplane. It is designed for extreme reliability and signal integrity, ensuring that this crucial timing reference remains stable even in electrically noisy industrial environments. The Bently Nevada 3500/34 is, therefore, not just a simple input module but a key enabler for advanced machinery diagnostics and protection, making it indispensable for the health assessment of critical assets like turbines, compressors, and large pumps.

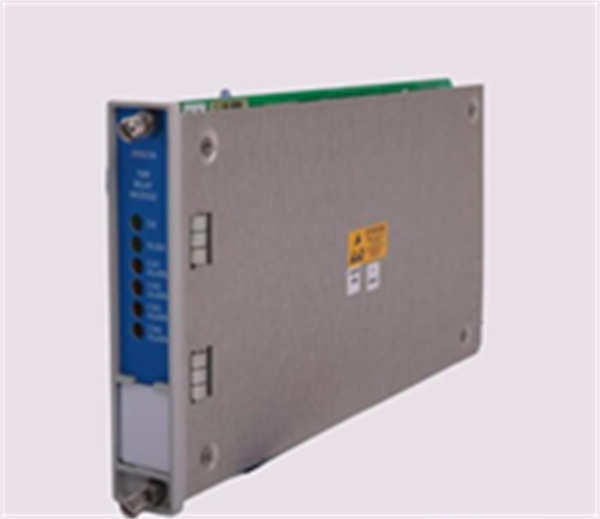

3500/34 BENTLY

Technical Specifications

Main Features and Advantages

The Bently Nevada 3500/34 offers several distinct advantages that ensure precise and reliable machinery monitoring. Its most critical feature is its sophisticated signal conditioning circuitry. This circuitry is designed to filter out electrical noise and transients that are common in plant environments, ensuring that the keyphasor pulse generated is clean and accurate. This prevents spurious signals from causing incorrect speed or phase readings in dependent monitors, which is essential for avoiding costly false trips or missed alarms.

Reliability and advanced diagnostics are built into the module. It continuously monitors the integrity of the connected Keyphasor probe and its cabling. If the input signal fails, falls outside the acceptable range, or is lost, the module will clearly indicate the fault via its front-panel LEDs and communicate this status to the system software, alerting operators to a problem with the timing reference. The Bently Nevada 3500/34 is designed for seamless integration within the 3500 framework, receiving power and communicating over the backplane, which reduces wiring complexity and enhances overall system reliability. Its robust design ensures long-term, maintenance-free operation, which is a cornerstone of the 3500 system’s reputation for protecting critical infrastructure.

Application Field

The Bently Nevada 3500/34 is deployed wherever precise rotational timing is required for the protection and analysis of high-value rotating equipment. Its primary application is in the oil and gas industry, where it is used on gas turbines that drive compressors and generators, and on large centrifugal compressors within refineries and LNG facilities. In power generation, the module is absolutely essential for protecting steam turbines, gas turbines, and hydro turbines in nuclear, fossil-fuel, and renewable energy plants.

The key function of the Bently Nevada 3500/34 is to provide the necessary reference for measuring rotor speed and vibration phase angle. This allows the system to identify not just the amplitude of vibration, but also its origin, which is critical for diagnosing problems like rotor imbalance, misalignment, and shaft cracks. It enables phase-adjusted overspeed protection, which is a more accurate and reliable safety function than standard overspeed detection. Essentially, any application that requires a once-per-revolution timing signal for machinery protection, performance monitoring, or advanced diagnostic analysis will rely on the accuracy and reliability of the Bently Nevada 3500/34 module.

Related Products

3300/34: The Keyphasor module from the previous-generation 3300 system, often upgraded to the 3500 platform.

3500/42M 126700-01: A Proximitor® driver and vibration monitor module that requires the keyphasor signal from the 3500/34 for phase measurement.

3500/25 125792-01: A TMR (Triple Modular Redundant) Keyphasor module for the highest safety integrity level (SIL) applications.

3500/22M 126632-01: A transient data interface module that captures and time-synchronizes waveform data using the keyphasor pulse.

3500/15 125740-01: The system power supply that provides operational power to the entire rack, including the 3500/34 module.

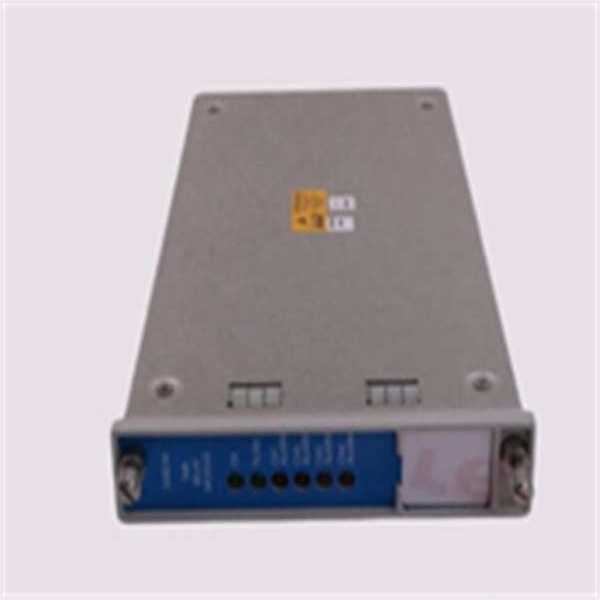

3500/34 BENTLY

Installation and Maintenance

Pre-installation preparation: Before installing the Bently Nevada 3500/34, ensure the 3500 rack power is completely disconnected and properly locked out/tagged out (LOTO). Verify the module’s firmware version is compatible with the system’s main processor and configuration. Confirm the slot location is correct according to the system’s configuration drawing. Handle the module with care, using proper electrostatic discharge (ESD) precautions to prevent damage to its sensitive electronic components.

Maintenance recommendations: The 3500/34 module itself is largely maintenance-free. Primary maintenance focuses on the external components: regularly checking the health and output of the connected Keyphasor probe and ensuring the integrity of the coaxial cabling from the probe to the module. During routine system checks, verify the front-panel LEDs indicate a normal “OK” status and that there are no fault indications. Any troubleshooting or replacement should be performed with reference to the system’s configuration and by qualified personnel following strict safety procedures to prevent unintended machinery shutdowns.
